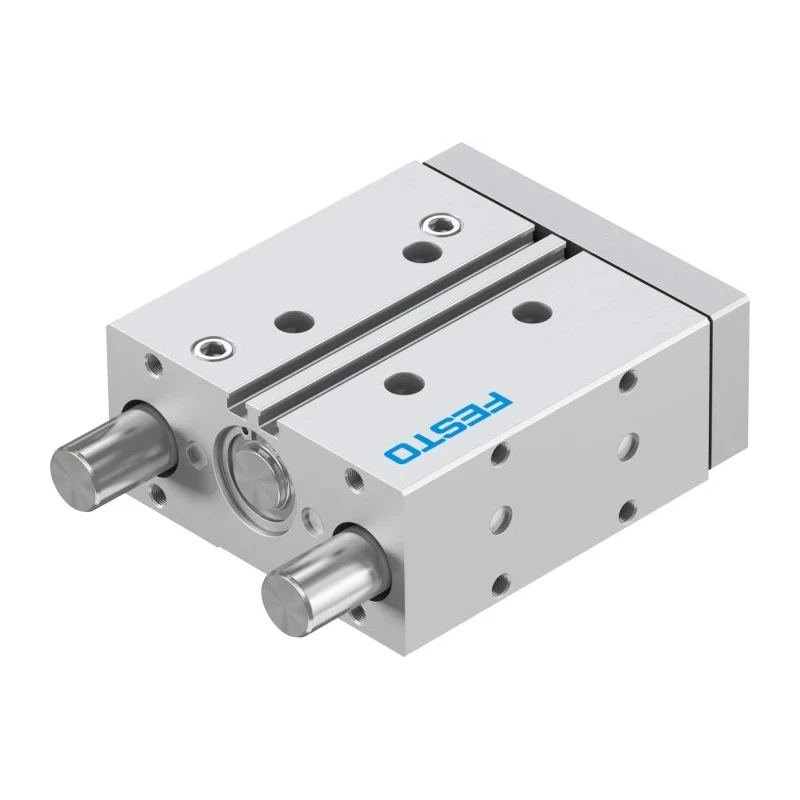

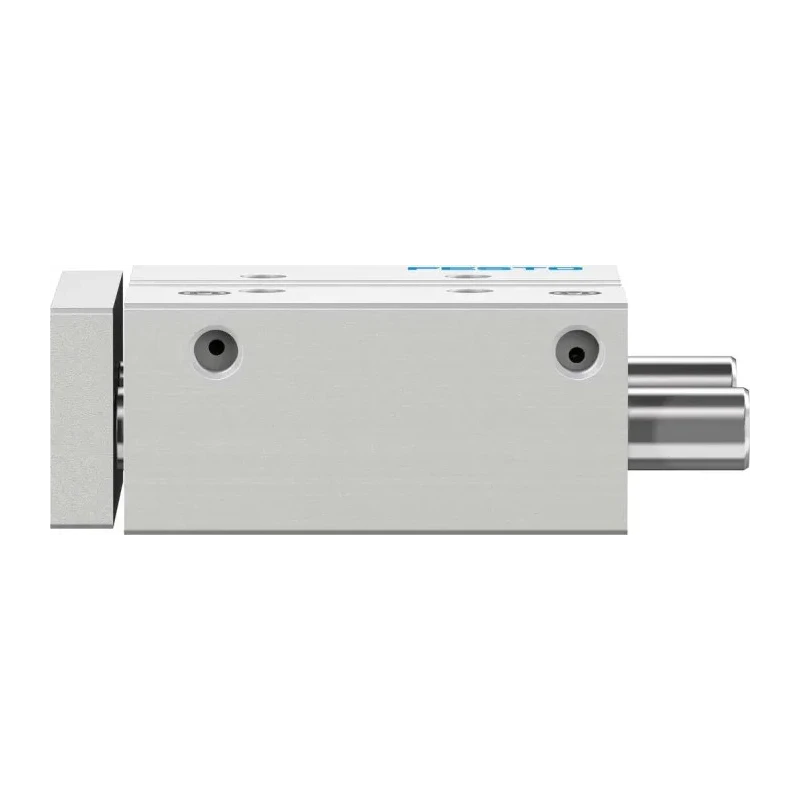

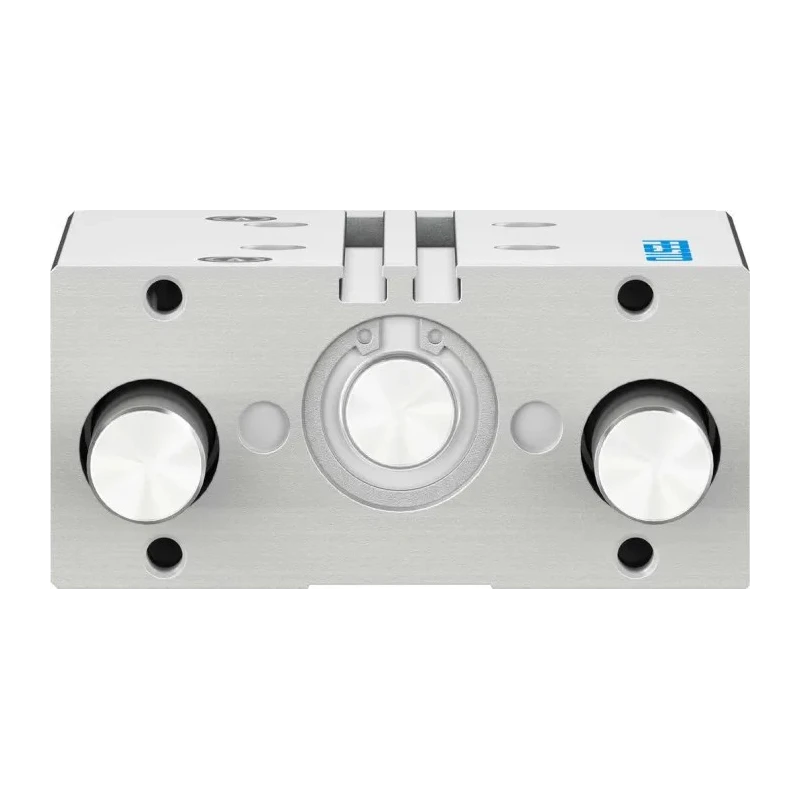

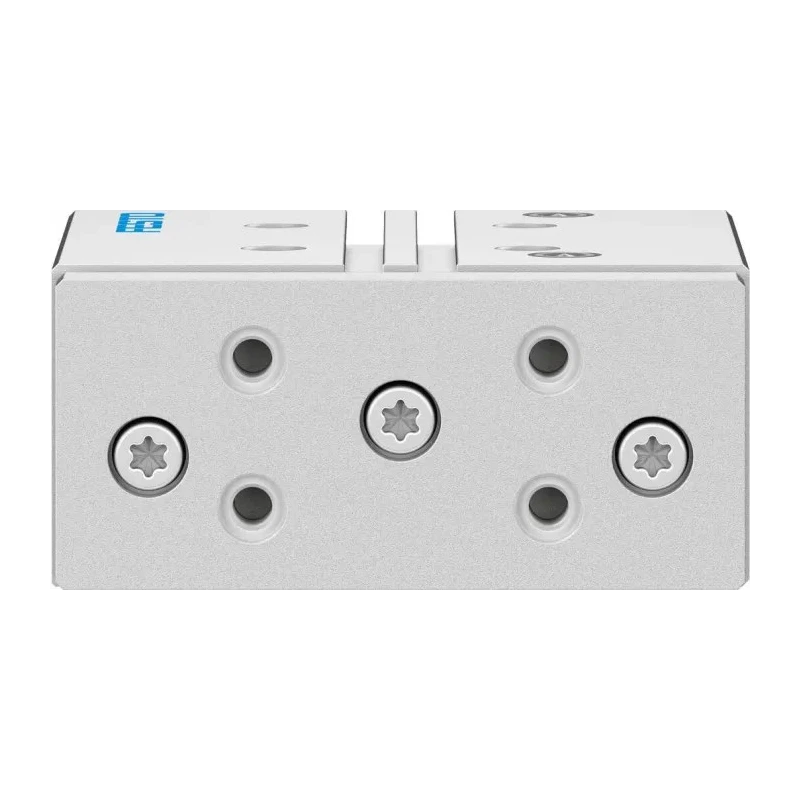

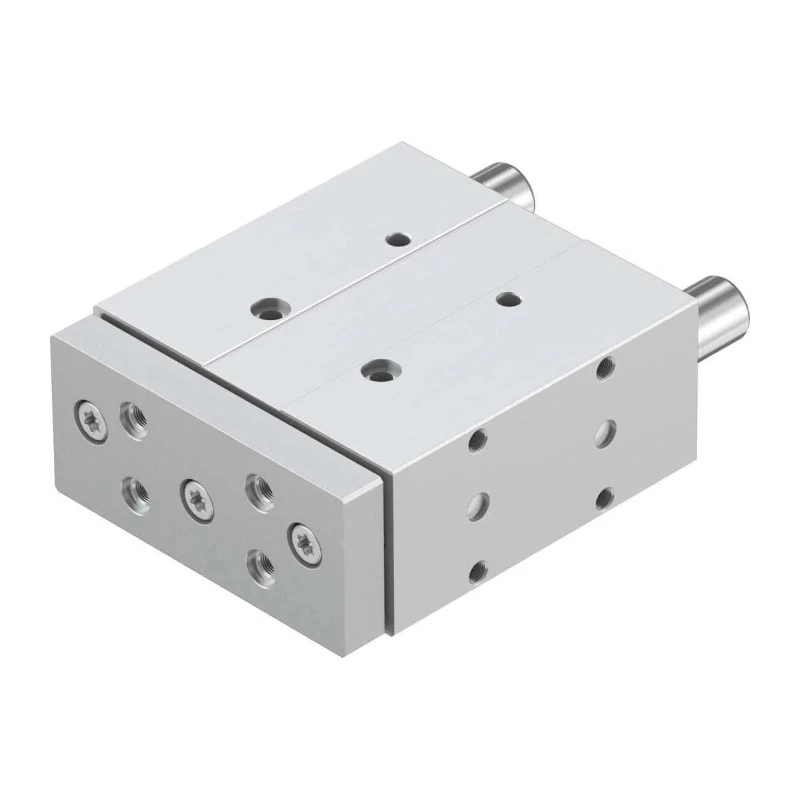

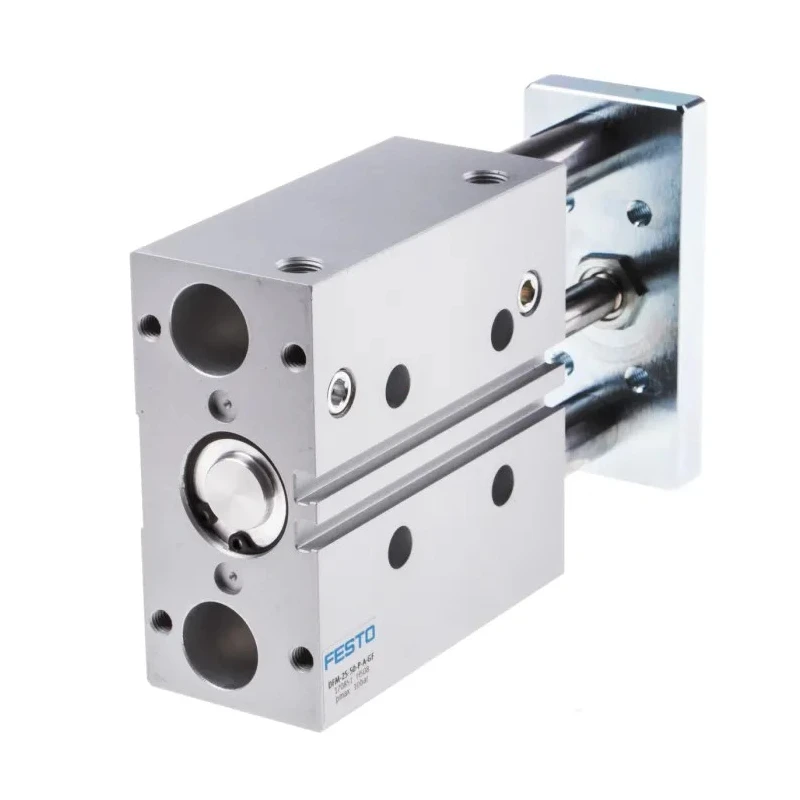

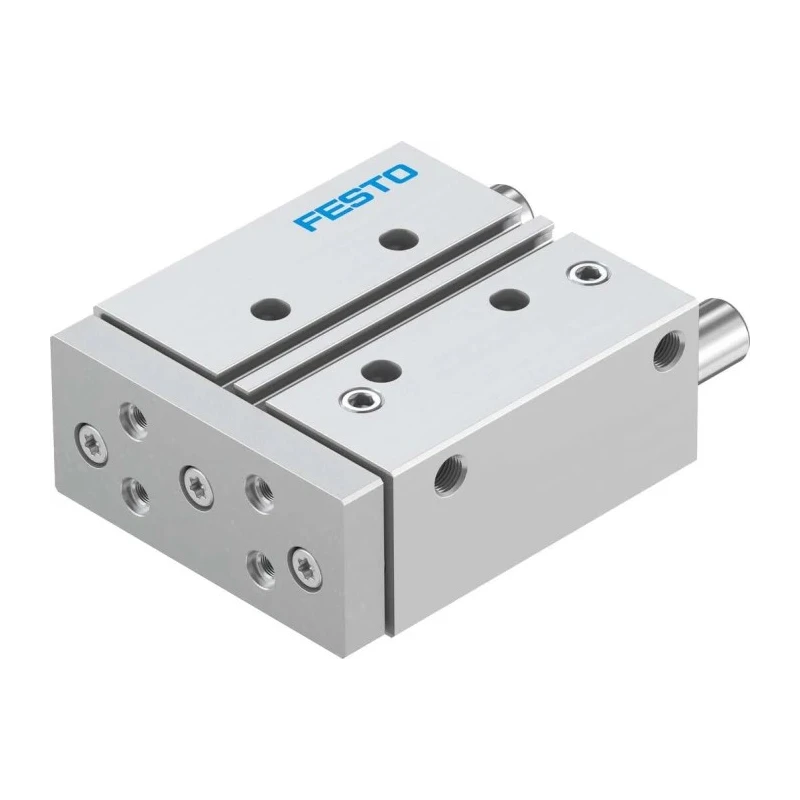

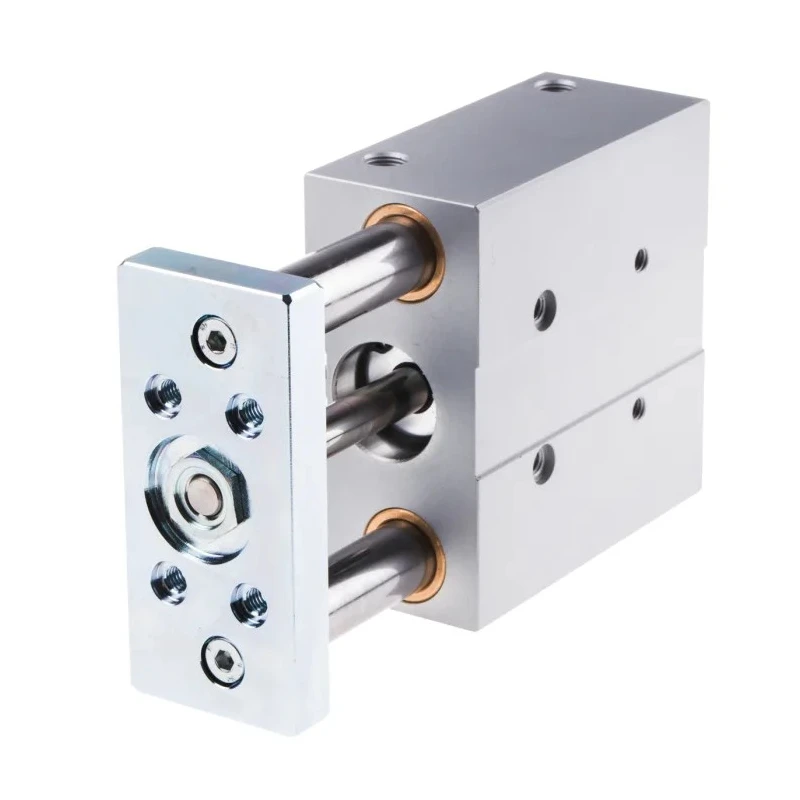

Festo Pneumatic Guided Cylinder 25mm Bore, 50 mm Stroke, Double Acting, DFM Series, Side Flat Mount DFM-25-50-P-A-GF

Festo DFM-25-50-P-A-GF Pneumatic Guided Cylinder features a 25mm bore and 50mm stroke with double-acting piston action, making it ideal for precise motion control in industrial automation, manufacturing, and automotive repair. This cylinder supports an operating pressure range of 1.5 to 10 bar, ensuring versatile application under varying load conditions.

The robust body construction blends tempered steel, nitrile rubber (NBR), wrought aluminium alloy, polyurethane, and high alloy stainless steel to deliver high durability and corrosion resistance. Elastic cushioning plates at both ends reduce noise and minimize wear, contributing to longer service life. The single rod design guided by plain bearing and ball bearing supports smooth and accurate piston movements.

Mountable in any position with side flat mounting and through holes, this cylinder offers installation flexibility. It is engineered to function reliably in environments with temperatures ranging from -20°C to 80°C. The piston rod thread size is 1/8 inch G and conforms to ISO 228-1 and ISO 1179-1 thread standards for compatibility with common pneumatic fittings.

This Pneumatic Guided Cylinder operates efficiently with both lubricated and non-lubricated compressed air, enhancing its adaptability. Its compact size (133mm length, 95mm width, 44mm height) and moderate weight of 1.6kg facilitate integration in constrained spaces and mobile machinery.

Applications include automotive repair, main engine control systems, and general manufacturing sectors where precise and reliable linear actuation is required. The cylinder complies with RoHS, ISO 8573-1:2010 (7:4:4), ISO 228-1, and ISO 1179-1 standards, ensuring quality and environmental safety.

Operates reliably within pressure range of 1.5 to 10 bar. Durable and corrosion-resistant multi-material body construction. Elastic cushioning reduces noise and mechanical wear. Flexible side flat mounting with through holes for versatile installation.

Wide operating temperature from -20°C to 80°C. Single rod guided by plain and ball bearings for smooth motion. Compatible with lubricated and non-lubricated compressed air. Thread size 1/8 in G with ISO standard compliance.

Compact dimensions and moderate weight for space-efficient use. Suitable for automotive, manufacturing, and industrial automation applications. Explore more pneumatic and hydraulic automation products by browsing EnvMart's curated industrial catalog.
