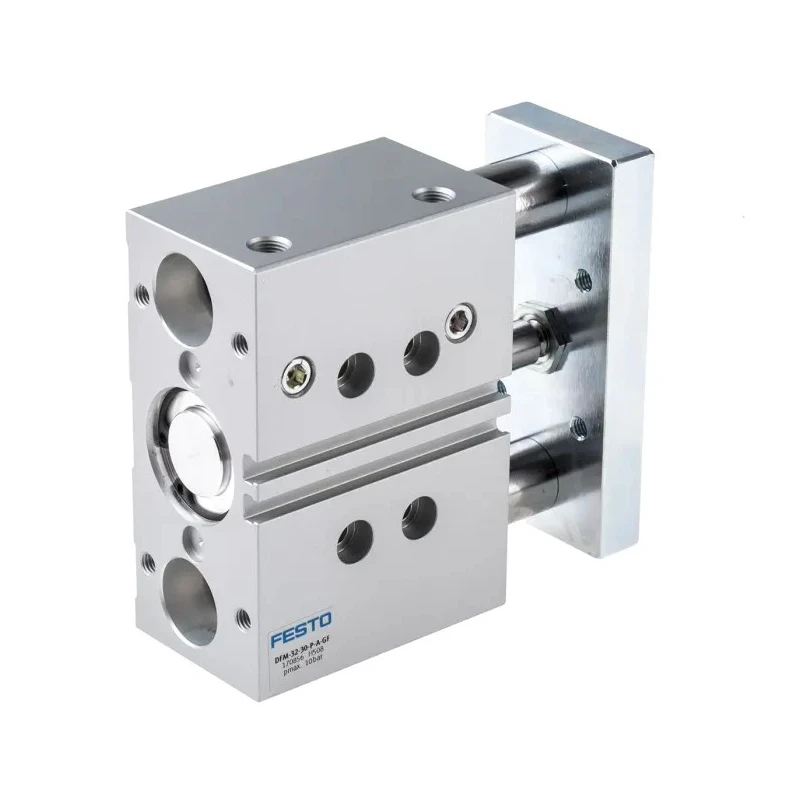

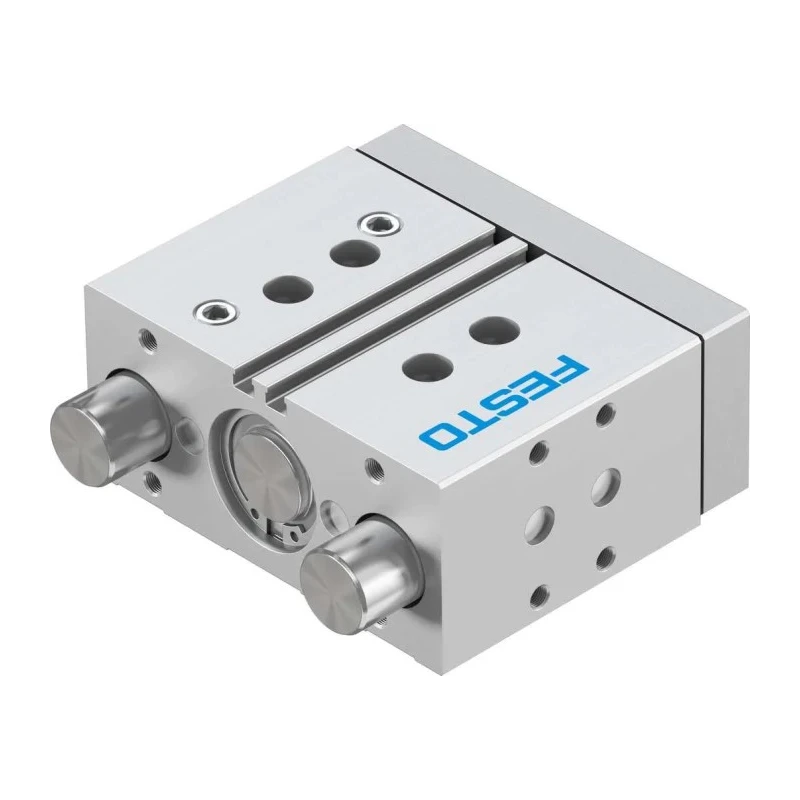

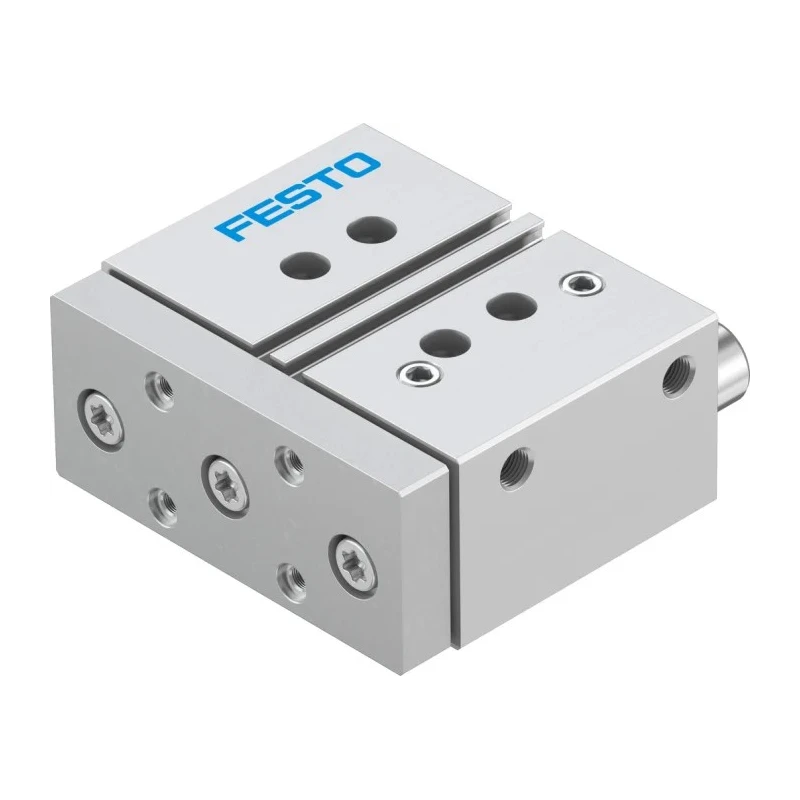

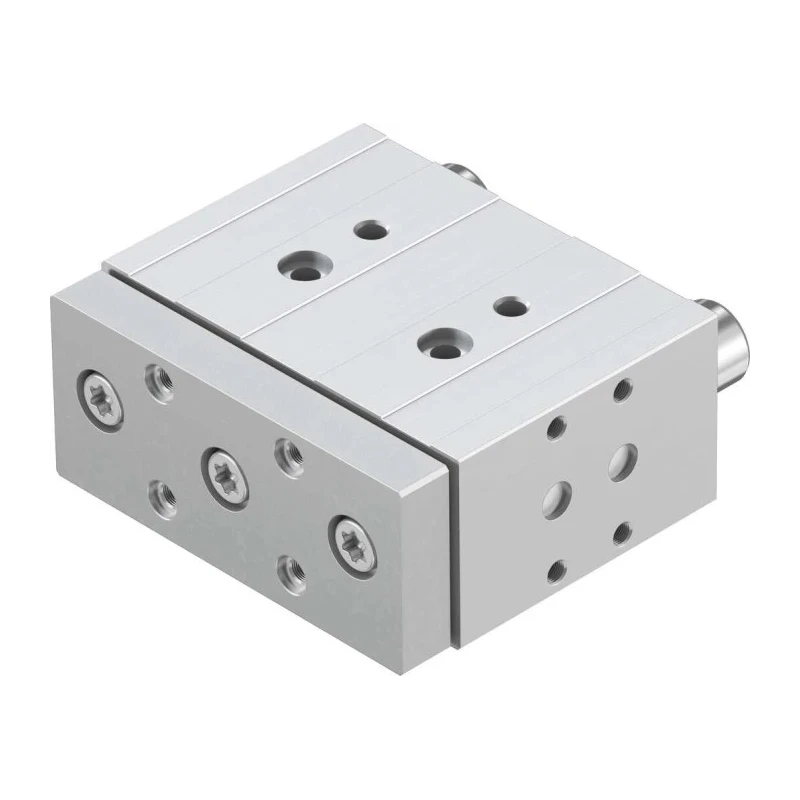

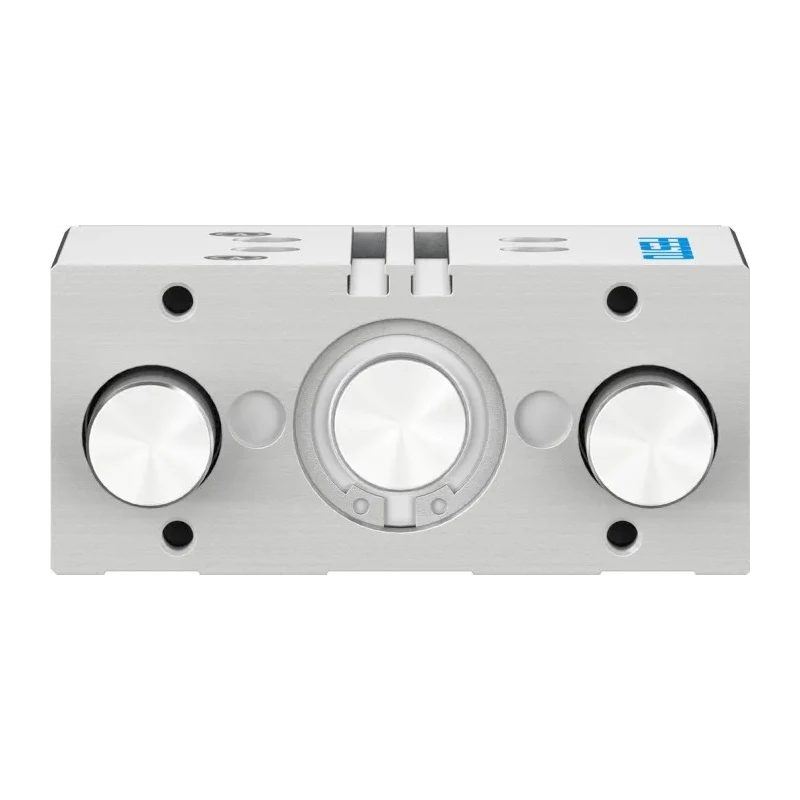

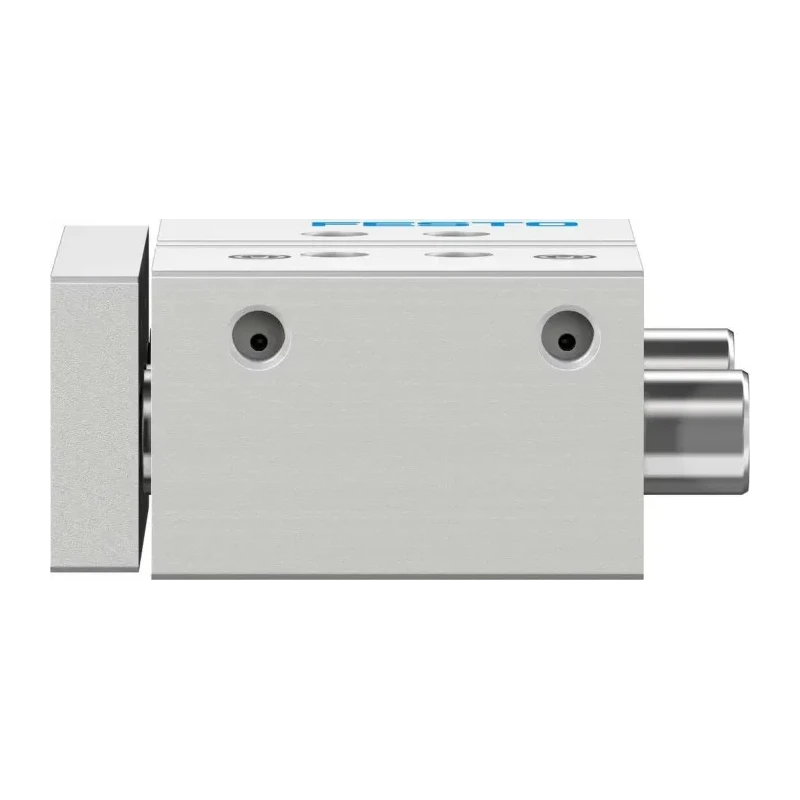

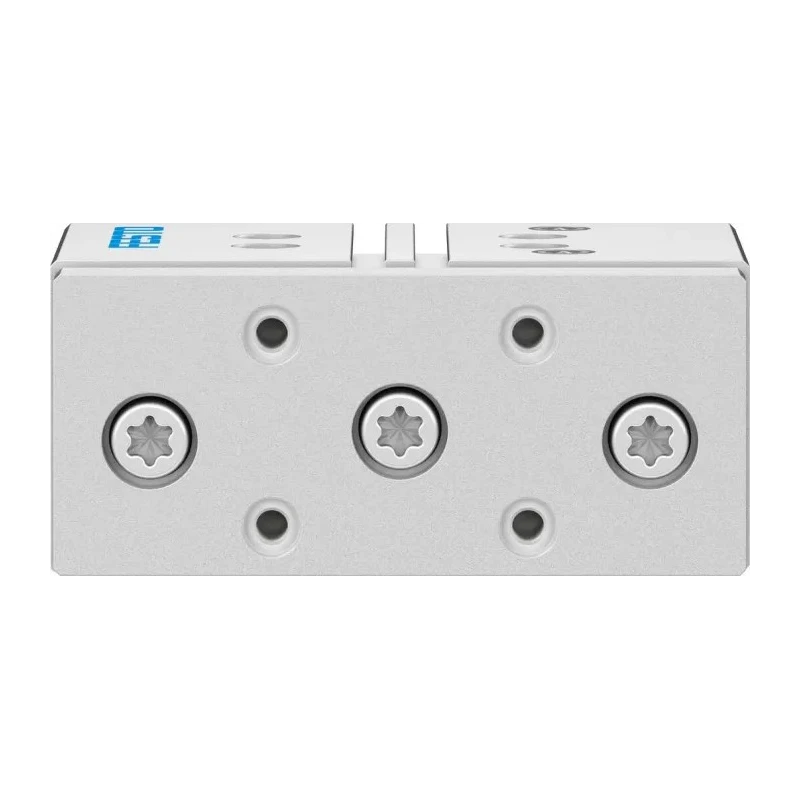

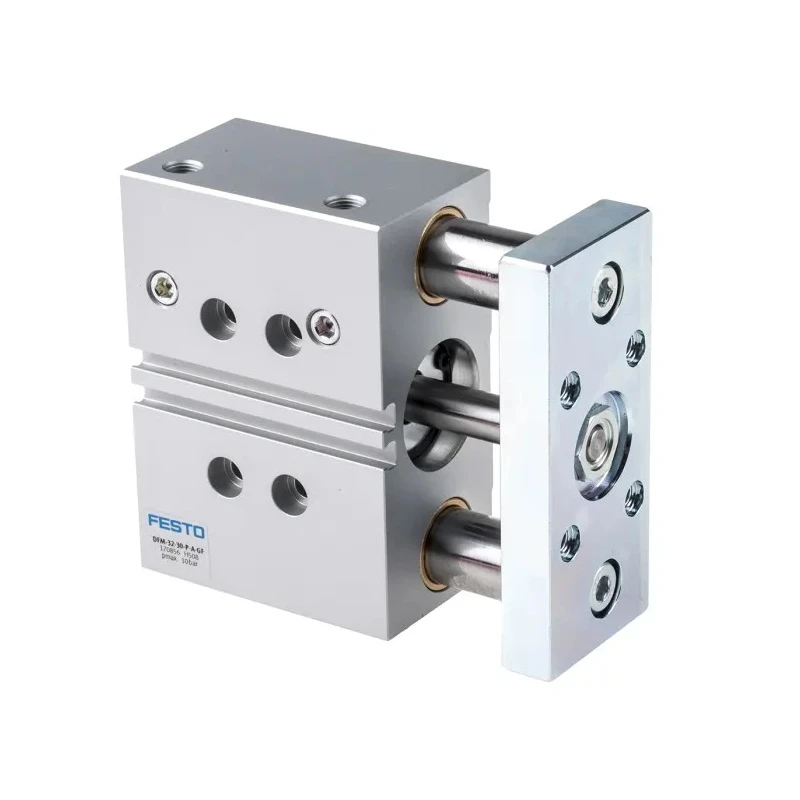

Festo Pneumatic Guided Cylinder 32mm Bore Double Acting Through Hole Mount 10 bar Pressure DFM-32-30-P-A-GF

Festo DFM-32-30-P-A-GF Pneumatic Guided Cylinder is a precision-engineered actuator designed to deliver reliable and accurate linear motion in demanding industrial applications. This 32 mm bore double acting cylinder employs a through hole mounting configuration for secure installation and features elastomer cushioning that dampens noise and shock, prolonging equipment life. Its ball bearing guide ensures accurate alignment under lateral forces, making it highly suitable for applications where precise guidance of parts is required.

The cylinder measures 111 mm in length, 110 mm in width, and 49 mm in height, allowing it to fit into compact spaces within machinery systems. Operating temperatures from -20°C up to 80°C make it versatile for harsh environments in various industries including construction, plastics production, and mineral processing. The device handles a maximum operating pressure of 10 bar and exerts a substantial maximum force of 1,227 N, providing the necessary power for heavy-duty tasks.

This unit uses a single rod type with a pneumatic port of 1/8 inch G thread size, offering broad compatibility with standard pneumatic systems. The cylinder’s dimensions and robust cushioning system ensure reduced noise levels and smooth operation under continuous cycles. Compliance with ISO 1179-1 and ISO 228-1 standards guarantees high manufacturing quality and interchangeability with other equipment.

Double acting piston for controlled bidirectional strokes. Ball bearing guide provides precision and reduces wear. Compact dimensions enable integration into space-constrained setups. Elastomer cushioning reduces operating noise and wear.

Operates reliably between -20°C and 80°C. Designed for maximum pressure of 10 bar for heavy industrial use. Pneumatic port with G1/8 thread size for easy connection. Certified to ISO 1179-1 and ISO 228-1 standards.

This Pneumatic Guided Cylinder is ideal for system automation requiring precise movements, including applications in the construction industry, plastics manufacturing, and mineral processing operations. Its durable and compact design ensures optimal performance in heavy-duty mechanical setups.
