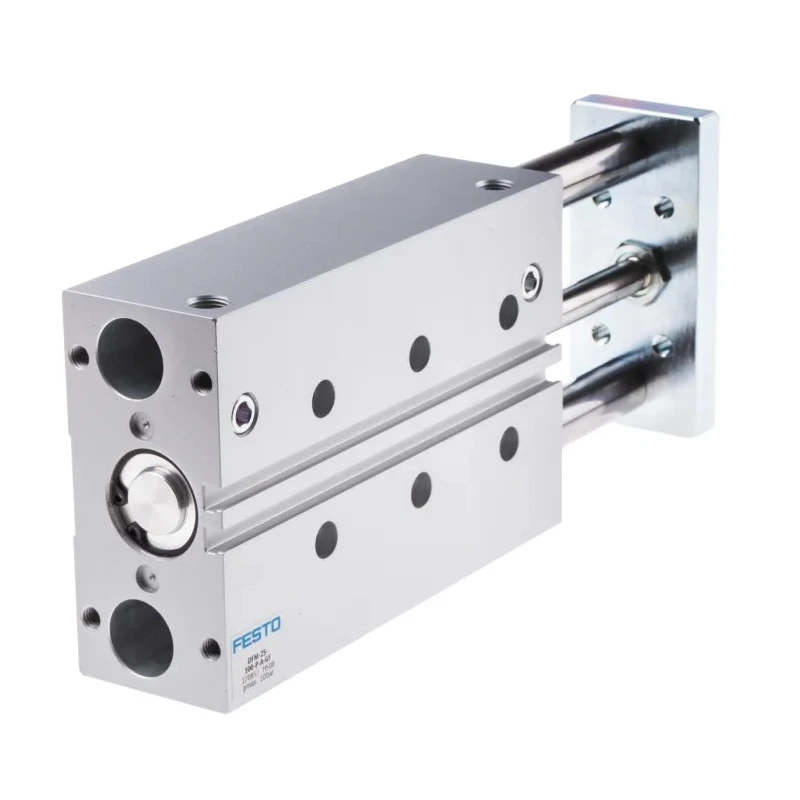

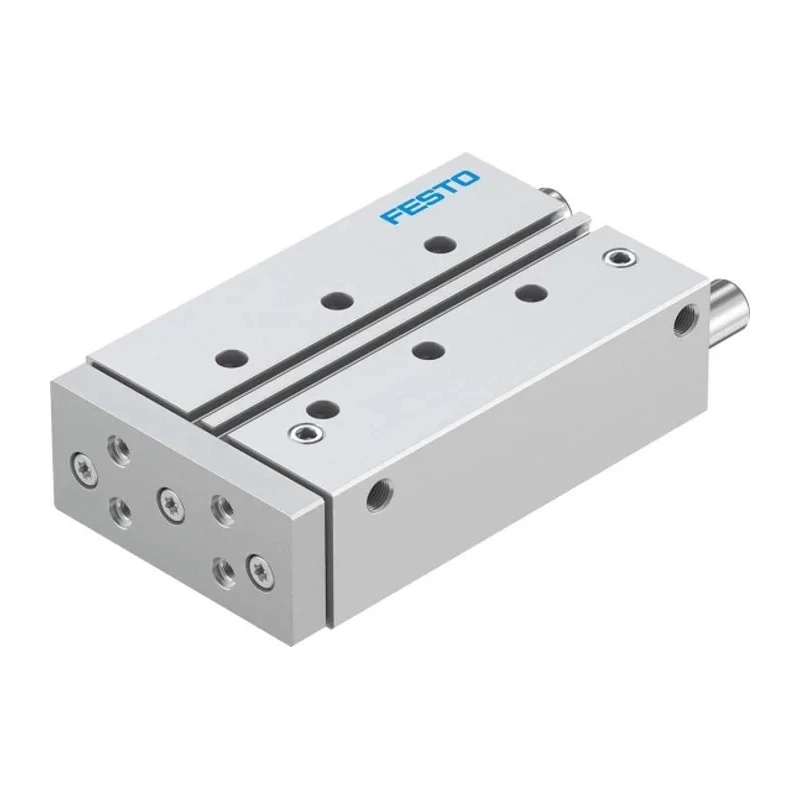

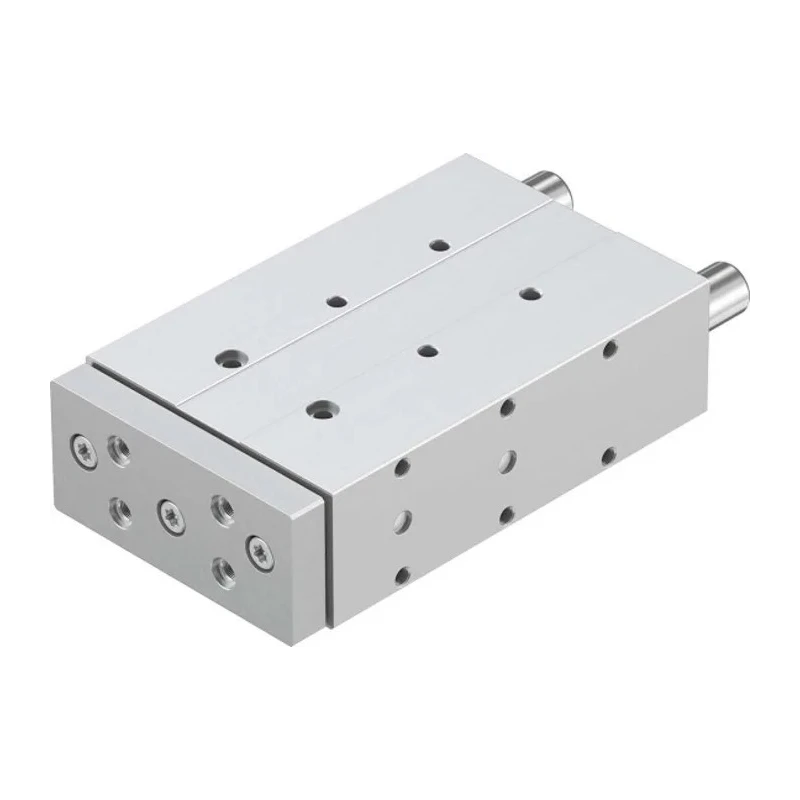

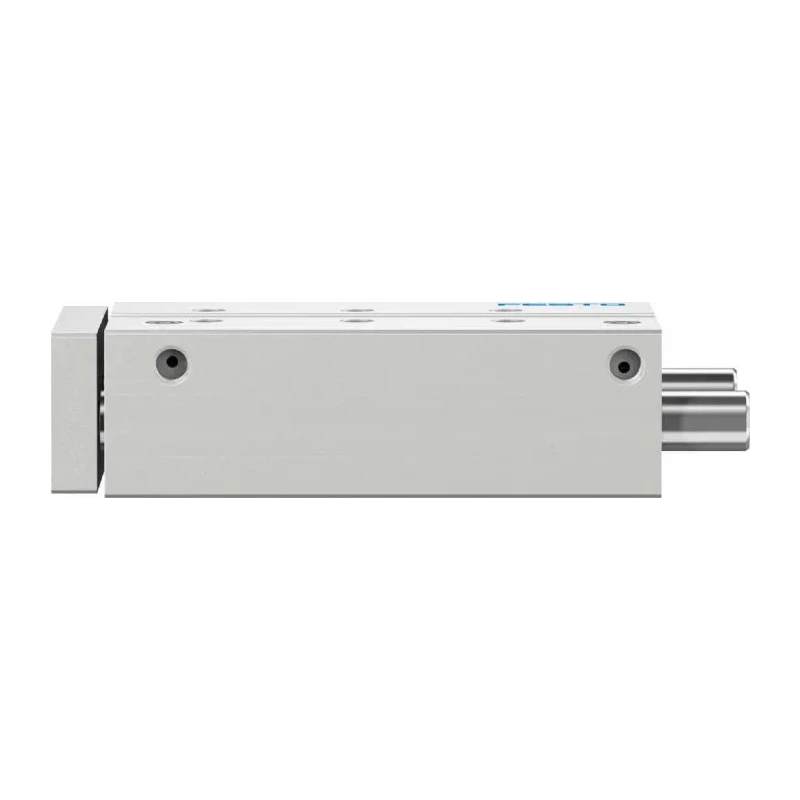

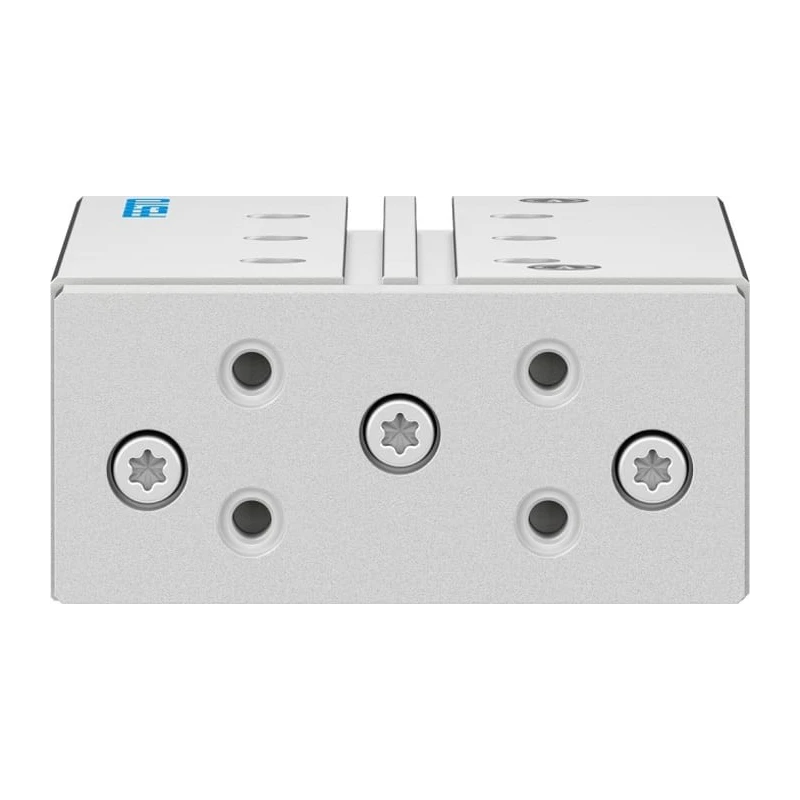

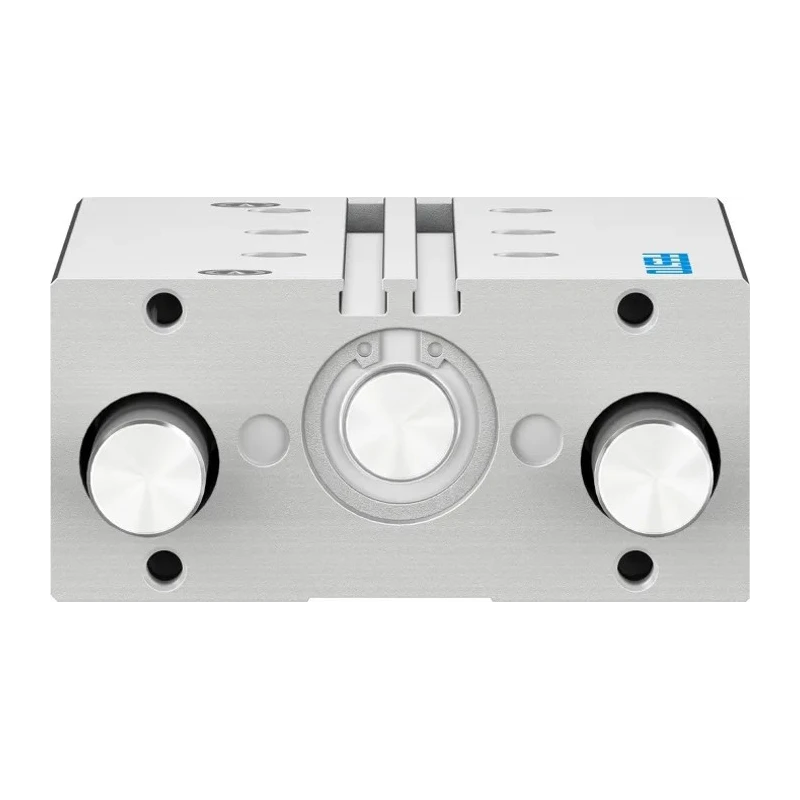

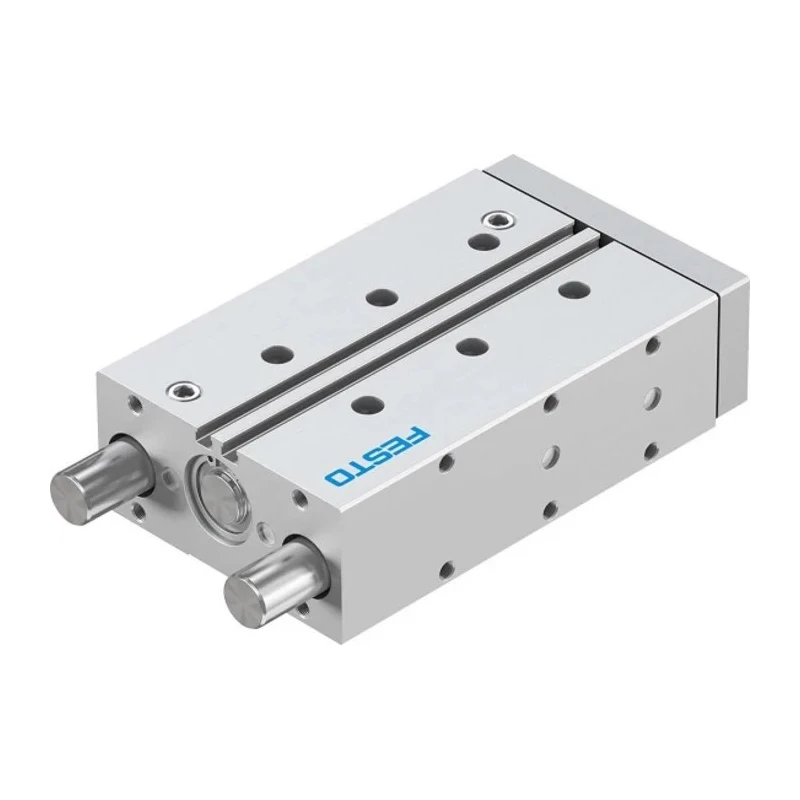

Festo Pneumatic Guided Cylinder 25mm Bore, 100mm Stroke, Double Acting, Through Hole Mount, Stainless DFM-25-100-P-A-GF

Festo DFM-25-100-P-A-GF pneumatic guided cylinder is engineered for industrial and laboratory pneumatic applications requiring compact, precise, and durable actuation. Featuring a 25mm bore diameter and 100mm stroke length, this double acting cylinder provides efficient linear motion control.

Constructed with a combination of high alloy stainless steel, tempered steel yoke plate, and anodised aluminium housing, the cylinder ensures long-term durability and resistance against corrosion and contamination. The elastomer cushioning at both ends reduces impact force to 0.3 Nm, lowering noise emissions and vibrations, thereby enhancing the overall service life.

Its double acting design allows for controlled extend and retract motions, operated via a maximum pressure of 10 bar. The ball bearing and plain bearing guide types offer smooth, stable movement, suitable for precision positioning in smaller setups.

This pneumatic cylinder operates reliably within a wide temperature range of -20°C to 80°C, making it suitable for use in process automation, pharmaceutical production, and general pneumatic operations that require stability and precision under variable environmental conditions.

The compact overall dimensions of 183mm length, 95mm width, and 44mm height allow installation in tight spaces. The piston rod features a 1/8 inch G thread size for easy mounting to machine components. It delivers a usable force output of approximately 295 Newtons at 6 bar air pressure, making it ideal for shifting moderate loads efficiently.

Constructed with high-grade stainless steel, tempered steel yoke, and anodised aluminium. Elastomer cushioning reduces noise and impact loads at stroke ends. Double acting operation provides reliable bidirectional actuating force.

Ball bearing and plain bearing guides ensure precise, smooth linear motion. Compact size fits constrained installation areas. Wide operating temperature range from -20°C to +80°C. Meets ISO 1179-1, ISO 228-1, and RoHS quality and environmental standards.

Festo Pneumatic Guided Cylinders such as the DFM-25-100-P-A-GF are widely used in industrial automation, manufacturing, HVAC, and laboratory applications to provide dependable and precise linear actuation. These cylinders excel in applications demanding load guidance and compact form factor. Explore more pneumatic cylinders and guided actuator solutions at EnvMart to meet your industrial fluid power needs.
