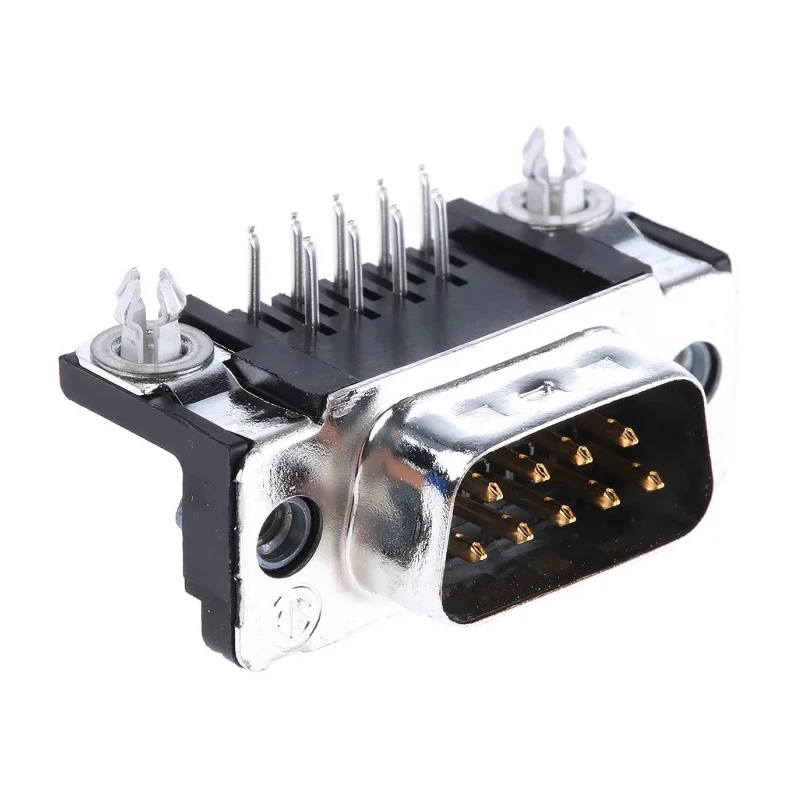

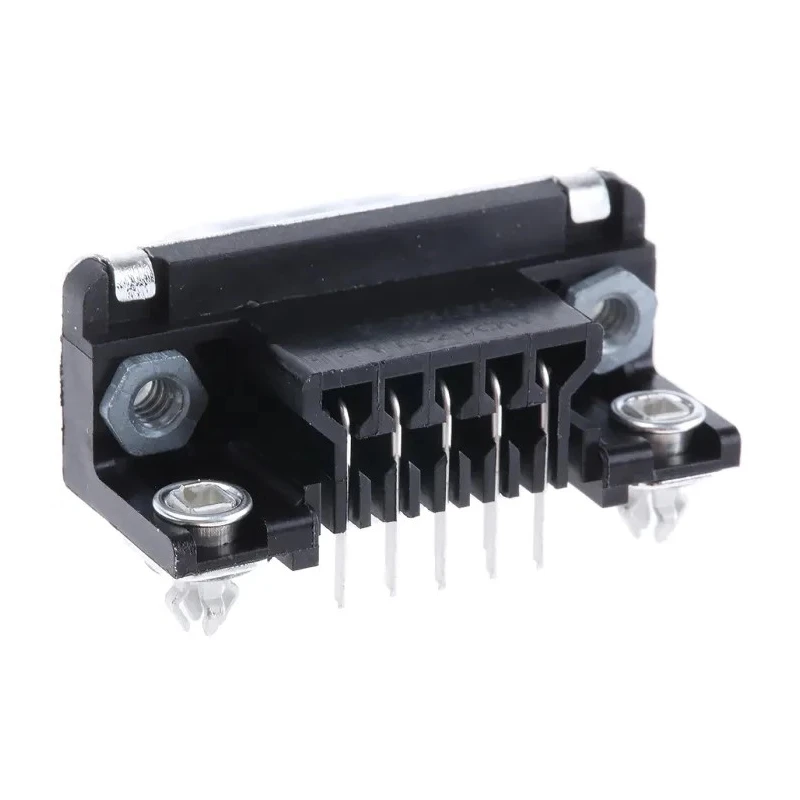

TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747840-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | D |
Key Features
- Features right angle orientation for PCB mounting applications.
- Constructed with brass contacts plated with gold over nickel ensuring reliable conductivity.
- Durable thermoplastic housing rated 94V-0 for fire resistance.
- Operates effectively in temperature ranges from -55°C to 105°C.
- Mounting hardware includes 4 to 40 UNC threaded inserts for secure and stable fixing.
- Designed for solder termination with male connector and contact gender.
- D-Sub shell size D with a compact 8.08 mm footprint.
Product Description
TE Connectivity 5747840-4 AMPLIMITE HD-20 9 Way Right Angle Through Hole D-Sub Connector with a 2.74 mm pitch is engineered for reliable PCB connectivity in industrial and electronic applications. This connector is designed for mounting on printed circuit boards with through-hole technology and features 4 to 40 UNC threaded inserts to ensure robust mechanical fixation.
The connector employs brass contacts with gold over nickel plating for excellent electrical performance and corrosion resistance, housed within a thermoplastic material certified to 94V-0 flammability standards. It supports operating temperature ranges from -55° C to 105° C, making it suited for diverse environmental conditions.
Its right angle configuration facilitates space-saving on PCB layouts, while solder termination allows for durable and consistent electrical connections. The AMPLIMITE HD-20 series is widely used in industrial automation, telecommunications, and computing sectors where reliable multi-contact electrical connections are critical.
Right angle orientation supports efficient PCB layout design. Gold over nickel plated brass contacts provide reliable conductivity and corrosion resistance. Thermoplastic housing rated 94V-0 offers fire safety compliance.
Mount type utilizes through-hole technology with threaded mounting inserts for secure fitment. Suitable for operating temperatures ranging from -55° C to 105° C.
This product is ideal for electronic manufacturing, industrial equipment, instrumentation, and other applications requiring robust, multi-contact D-Sub Connectors. The included mounting hardware enhances installation reliability and ease.
Explore a wide selection of electronic components on EnvMart for comprehensive industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity AMPLIMITE HD-20 9 Way D-Sub connector is 2.74 mm.
This connector operates effectively within a temperature range of -55°C to 105°C.
It utilizes through-hole mounting technology with 4 to 40 UNC threaded inserts for secure installation.
The connector features brass contacts plated with gold over nickel and a thermoplastic housing rated 94V-0 for fire resistance.
This model has a total of 9 contacts, all of which are male.
The connector is designed with a right angle orientation, which is beneficial for space-saving on PCB layouts.
It features a solder termination type, ensuring a durable and reliable electrical connection.
The D-Sub shell size for this connector is designated as size D.
This connector is suitable for applications in industrial automation, telecommunications, and computing sectors.
The contacts are plated with gold over nickel, providing excellent electrical performance and corrosion resistance.
The country of origin for this connector is India.
The housing is made of thermoplastic material, which is rated 94V-0 for fire safety compliance.
