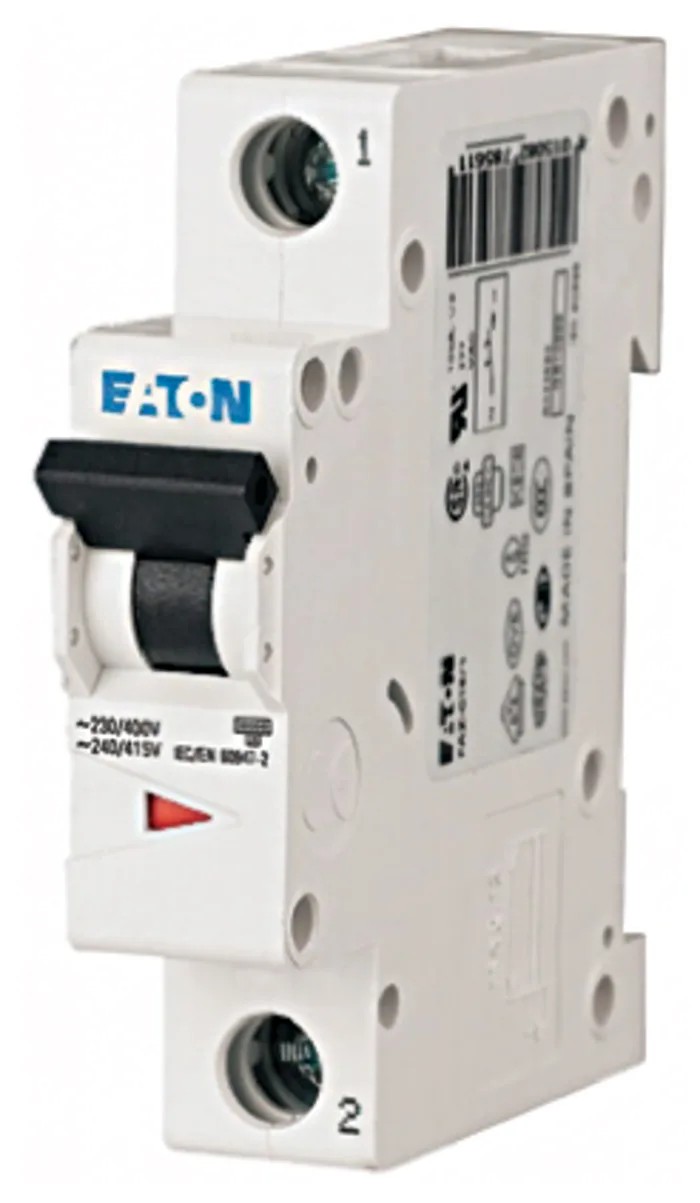

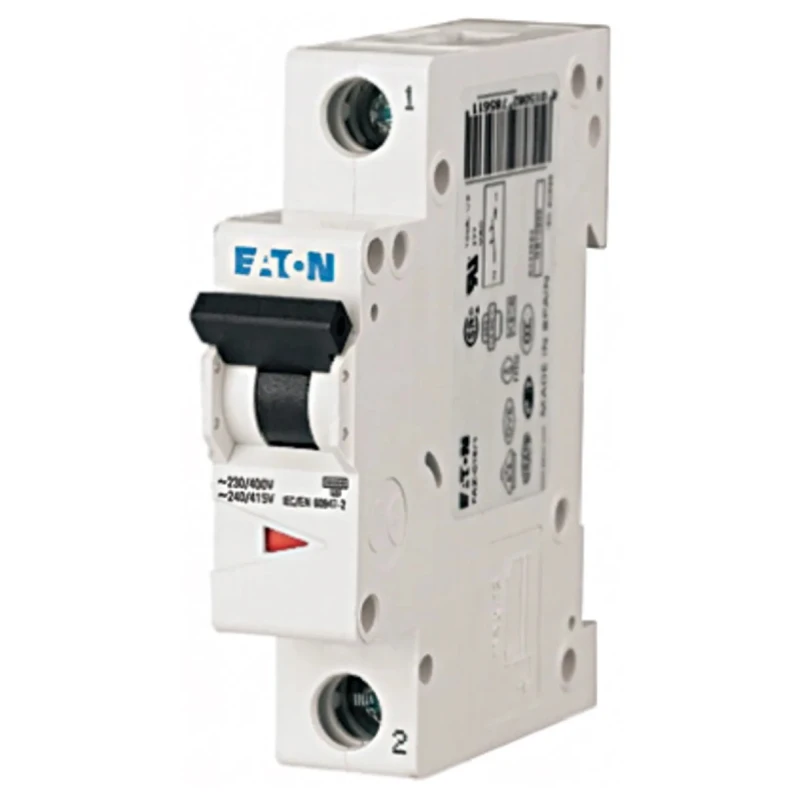

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 6A Current Rating, Type D Tripping Characteristics, 400V 168061 FAZ6-D6/1

Eaton 168061 FAZ6-D6/1 Miniature Circuit Breaker is a high-quality, 1-pole electrical protection device designed for circuit safety in industrial and commercial electrical installations. Rated at 6 Amperes with Type D tripping characteristics, it operates at a rated AC voltage of 400V, providing robust protection for sensitive circuits requiring higher inrush currents.

This MCB features a breaking capacity of 6 kA, ensuring it can safely interrupt fault currents up to this magnitude to prevent damage to electrical infrastructure. The device is mounted on a DIN rail, facilitating standardized and quick installation in electrical panels. Its screw terminal type allows for secure and reliable conductor connections.

With a compact form factor measuring 17.5 mm in width and 62 mm in depth, the MCB fits well in space-constrained applications. The toggle switch type reset actuator offers user-friendly manual reset after operation. The instantaneous break time characteristic provides rapid disconnection to safeguard electrical circuits.

The Eaton xEffect series MCBs conform to international standards EN 60898 and IEC, reflecting stringent compliance for safety and performance. Its IP20 ingress protection rating ensures basic protection against accidental contact with live parts and ingress of solid foreign objects.

Toggle switch reset actuator for easy manual reset. DIN rail mount for quick and standardized installation. Screw terminal type ensuring secure wiring connections. Compliance with EN 60898 and IEC standards for quality assurance.

Instantaneous break time for rapid circuit interruption. Compact design with 17.5 mm width and 62 mm depth saves panel space. IP20 protection rating suitable for controlled environments. Part of Eaton's reliable and widely used xEffect product range.

This miniature circuit breaker is ideal for usage in electrical distribution boards across industrial, commercial, and building automation sectors. It helps protect wiring and equipment from overloads and short-circuit faults, ensuring operational continuity and safety.

Environmentally, the device meets RoHS compliance ensuring reduced hazardous substances. Eaton, a trusted brand formerly known as Moeller, provides quality circuit breakers with strong technical support and reliability.

For users seeking dependable Miniature Circuit Breakers with balanced performance and safety certifications, the Eaton 168061 FAZ6-D6/1 model represents an excellent choice in the 6 Amp segment with Type D characteristics for higher inrush current applications.
