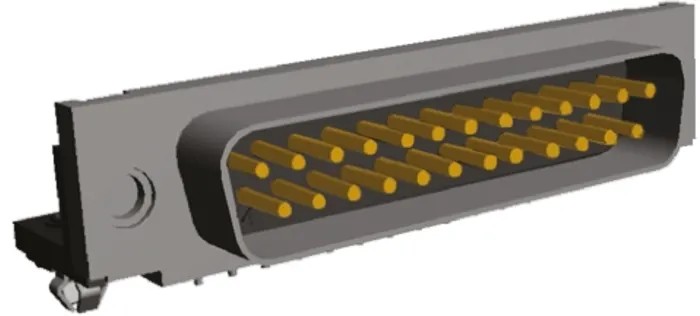

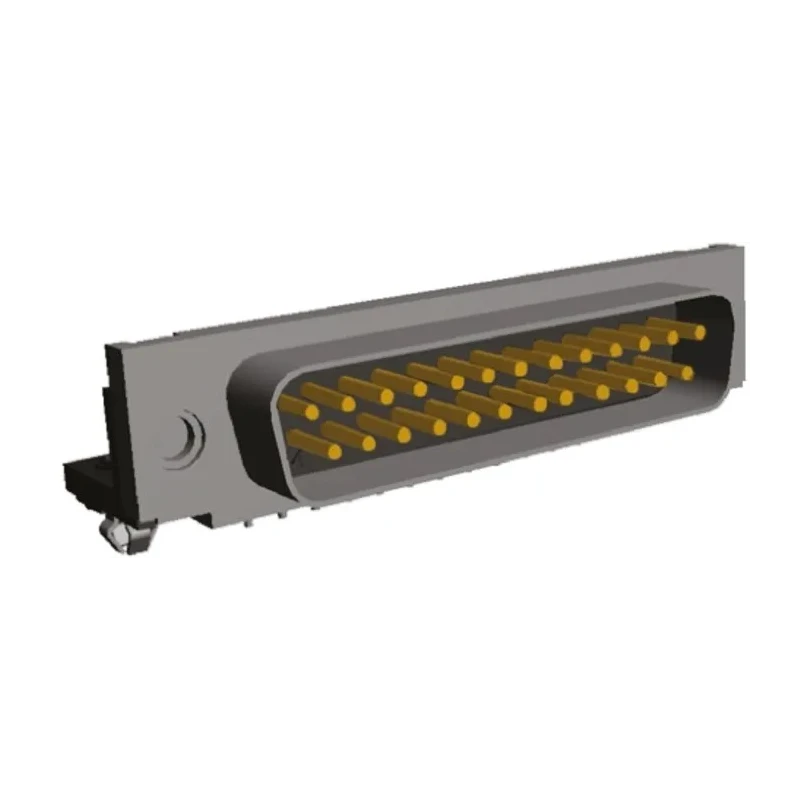

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector 5747842-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.75mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | D |
Key Features
- Features a 2.75 mm pitch and 25 contact points for connectivity.
- Right angle orientation designed for through hole mounting on PCBs.
- Constructed with thermoplastic housing and brass contacts plated with gold over nickel for enhanced durability.
- Includes 4 to 40 UNC threaded inserts for secure mounting.
- Operates effectively over a temperature range from -55°C to 105°C.
- Termination type is solder, ensuring stable and long-lasting connections.
- Shell size D with a tin plated steel front shell offers corrosion resistance.
- Meets RoHS standards, ensuring compliance with hazardous substances regulations.
Product Description
TE Connectivity 5747842-4 AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector is a high-quality electrical connector designed to provide dependable PCB mount connectivity in demanding industrial environments.
This connector features 25 contacts with a precise 2.75 mm pitch within a right angle mounting orientation, suited for through hole applications. Its D-shell size is D with a tin plated steel front shell that resists corrosion and mechanical stress. The housing material is a durable thermoplastic rated 94V-0, offering thermal resistance and electrical insulation.
The contacts are brass with gold plating over nickel, ensuring excellent conductivity and longevity, while the termination points are solder type for secure connection to PCBs. The 4 to 40 UNC threaded inserts allow for robust mounting and integration into assemblies.
Designed to operate in environments with temperatures ranging from -55°C to 105°C, this connector meets RoHS directives, making it suitable for modern environmental compliance demands.
The AMPLIMITE HD-20 series embodies reliability with zinc threaded inserts and availability with or without tin-plated copper alloy boardlocks. It is ideal for use in industrial electronics, power distribution, telecommunications, instrumentation, and other applications requiring secure and high-quality electrical connections.
Features a 2.75 mm pitch and 25 contact points for connectivity. Right angle orientation designed for through hole mounting on PCBs. Constructed with thermoplastic housing and brass contacts plated with gold over nickel for enhanced durability.
Includes 4 to 40 UNC threaded inserts for secure mounting. Operates effectively over a temperature range from -55°C to 105°C. Termination type is solder, ensuring stable and long-lasting connections. Shell size D with a tin plated steel front shell offers corrosion resistance.
Meets RoHS standards, ensuring compliance with hazardous substances regulations. Suitable for industrial electronics, power connector applications, and PCB interfacing tasks. Part of the AMPLIMITE HD-20 series known for robust and high-quality D-Sub connectors.
Choose TE Connectivity AMPLIMITE HD-20 D-Sub Connectors for dependable, high-performance PCB mounting solutions in industrial, manufacturing, and electronics sectors. Browse EnvMart for more connectors and related components to support your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a pitch of 2.75 mm.
This model has 25 contact points for connectivity.
It operates effectively over a temperature range from -55°C to 105°C.
The termination type is solder, ensuring stable connections to PCBs.
It is constructed with a thermoplastic housing and brass contacts plated with gold over nickel.
This connector is designed for through hole mounting on PCBs.
The shell size is D, made with a tin plated steel front shell for corrosion resistance.
Yes, it meets RoHS standards, ensuring compliance with hazardous substances regulations.
It includes 4 to 40 UNC threaded inserts for secure mounting.
It is suitable for industrial electronics, power distribution, telecommunications, and instrumentation applications.
The contact gender is male, as is the connector gender.
The connector is manufactured in India.
