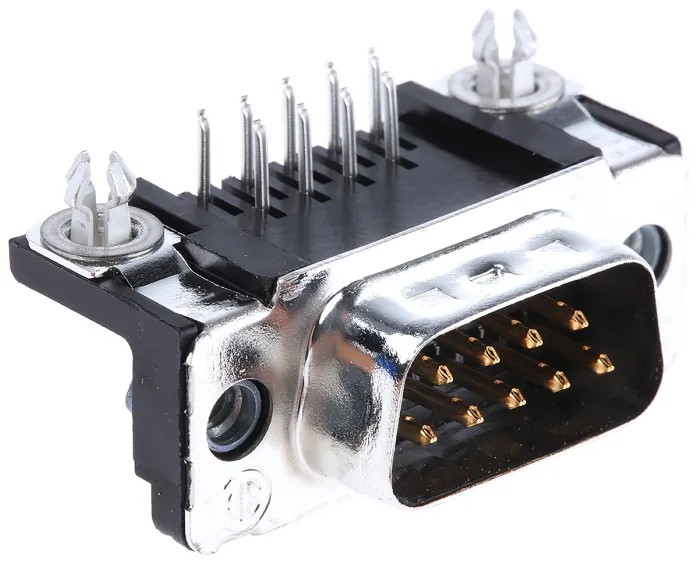

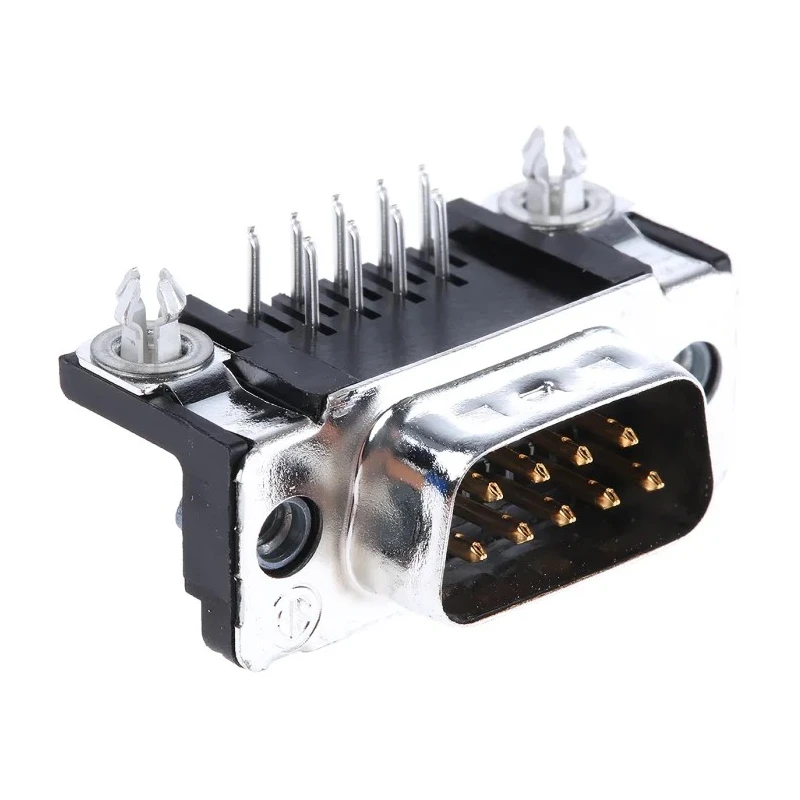

TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747840-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | D |
Key Features
- Features a right angle orientation suitable for PCB layouts requiring angular connectors.
- Includes 9 male contacts with brass material and gold over nickel plating for excellent conductivity.
- Housing is made from thermoplastic rated 94V-0 for safety and durability.
- Supports mounting via 4 to 40 UNC threaded inserts for secure fixation.
- Operates reliably between temperatures of -55°C and 105°C.
- Termination type is solder, ensuring robust electrical connections.
- The shell size is D with a tin plated steel front shell for corrosion resistance.
- Complies with AMPLIMITE HD-20 series specifications ensuring compatibility.
Product Description
TE Connectivity 5747840-4 AMPLIMITE HD-20 9 Way Right Angle D-Sub Connector is a high-quality through hole PCB mount connector with a 2.74 mm pitch. The right angle orientation facilitates easy PCB layout integration where axial space is limited.
Constructed with a durable thermoplastic 94V-0 housing and tin plated steel shell, this connector is designed to withstand demanding environmental conditions. The brass contacts plated with gold over nickel ensure excellent electrical performance and corrosion resistance. The connector features 4 to 40 UNC threaded mounting hardware for secure and reliable assembly.
Operating temperature ranges from -55°C to 105°C, making it suitable for industrial, electronic, telecommunications, and power connector applications. The AMPLIMITE HD-20 series is well recognized for its performance and robustness.
This connector is ideal for various uses in industrial electronics, electronic test and measurement equipment, power distribution, and control systems, where compact and reliable connections are necessary.
Features right angle orientation for PCB mounting. Includes 9 male solder termination contacts of brass with gold over nickel plating. Thermoplastic 94V-0 housing for flame retardance and durability. 4 to 40 UNC threaded inserts ensure strong mechanical mounting.
Suitable for industrial and electronic connectivity applications. Explore our wide range of connectors at EnvMart for advanced electronics and industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity AMPLIMITE HD-20 connector is 2.74 mm.
This model features 9 male contacts.
The contacts are made from brass and are plated with gold over nickel, while the housing is constructed from thermoplastic rated 94V-0.
It operates reliably between -55°C and 105°C.
The termination type is solder, ensuring robust electrical connections.
The shell size of this connector is D.
It supports mounting via 4 to 40 UNC threaded inserts for secure fixation.
This connector has a right angle orientation, suitable for PCB layouts requiring angular connectors.
The contacts are plated with gold over nickel for excellent conductivity.
It is suitable for industrial electronics, electronic test and measurement equipment, power distribution, and control systems.
The thermoplastic housing is rated 94V-0, providing flame retardance and durability.
The country of origin for this connector is India.
