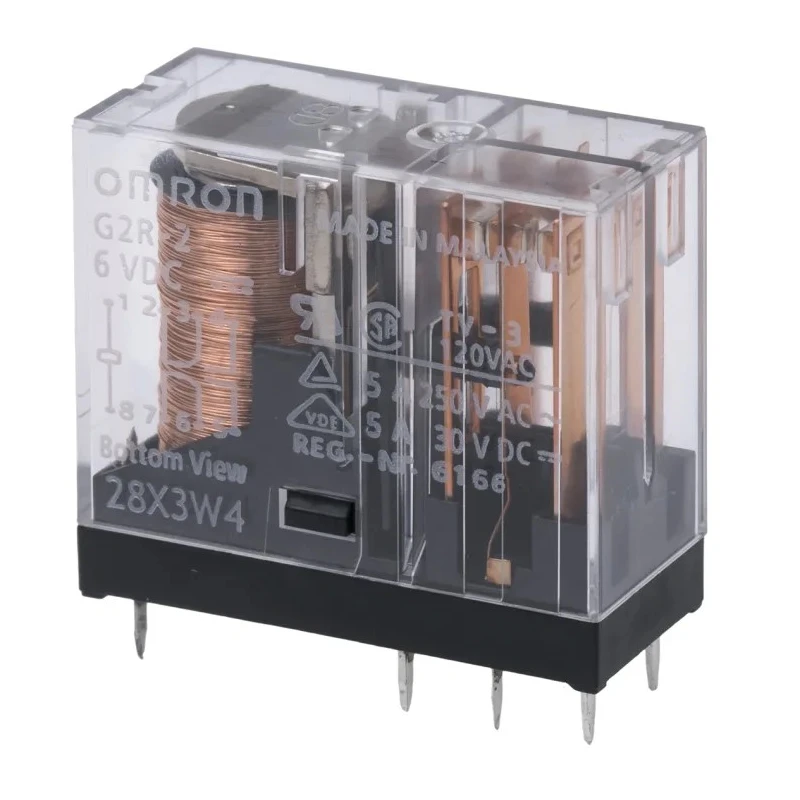

Omron General Purpose PCB Power Relay 6V DC Coil 5A Switching Current DPDT G2R-2 DC6
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-2 DC6 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 68Ω |
| Coil Voltage | 6V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 0.53W |
Key Features
- Equipped with a double-pole double-throw (DPDT) contact configuration for versatile switching.
- Coil voltage rated at 6V DC ensuring stable and efficient relay operation.
- Supports a maximum switching current of 5A suitable for various electrical loads.

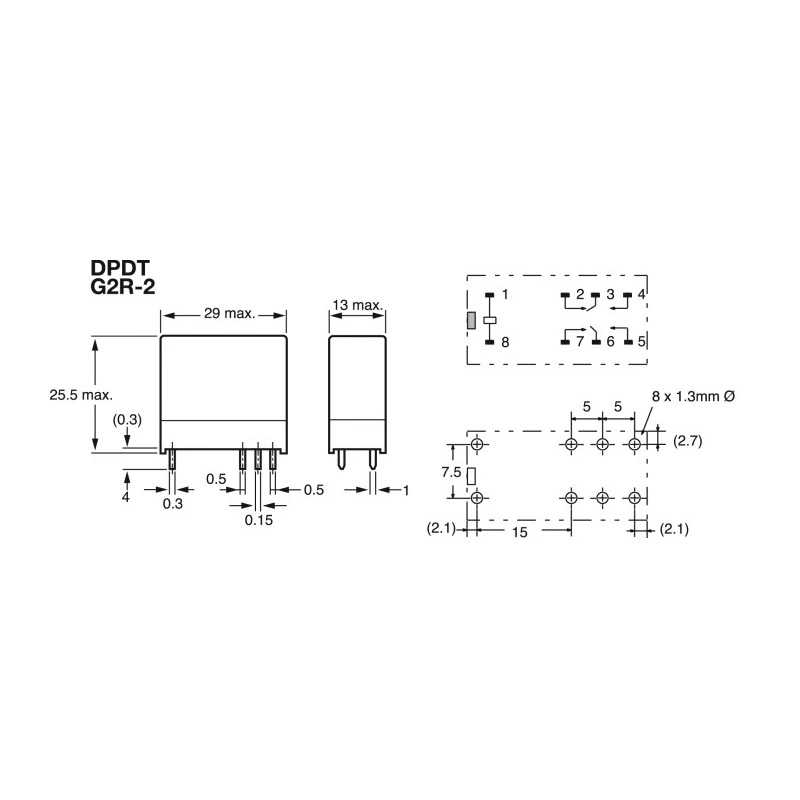

- Compact dimensions of 25.5mm height, 13mm width, and 29mm length optimize PCB space usage.
- Constructed with silver alloy contacts providing low contact resistance of 50mΩ for reliable conduction.
- Coil resistance of 68Ω with coil power consumption of 0.53W for energy efficiency.
- Designed for PCB mounting with solder terminal type for secure installation.
- Operating temperature range from -40°C to 70°C supports demanding environmental conditions.
Product Description
Omron G2R-2 DC6 general purpose PCB power relay features a 6V DC coil voltage and a 5A switching current capacity configured as double-pole double-throw (DPDT). This relay is widely used in industrial, electrical, automation, and commercial applications where reliable switching is essential.
The construction includes silver alloy contacts which minimize contact resistance to 50 milliohms, ensuring efficient electrical conductivity and minimizing power loss. Its coil resistance of 68 ohms and coil power of 0.53 watts provide low power consumption and stable relay actuation. The relay mounts securely onto printed circuit boards with solder-type terminals, supporting reliable mechanical and electrical connections.
Compact dimensions of height 25.5 mm, width 13 mm, and length 29 mm make it suitable for tight spaces on PCBs. Operating temperature range between -40°C and 70°C supports a wide spectrum of environmental conditions, increasing its versatility.
Conforming to the Restriction of Hazardous Substances (RoHS) directive, the relay ensures environmental compliance and safe disposal. It is recognized under multiple standards including UL508, CSA22.2, EN 61810-1, SEV, and SEMKO, reaffirming its quality and reliability.
This product is ideal for use in industrial automation, control panels, and electrical switching applications requiring durable and precise relay operation on a PCB. Double-pole double-throw (DPDT) contact configuration.
6V DC coil voltage with low power consumption. 5A switching current with 1.25 kVA switching power capability. Compact size for PCB mounting with solder terminals. Wide operating temperature range (-40°C to 70°C). Silver alloy contacts with 50mΩ contact resistance.
RoHS compliant and certified to international standards.
Choose Omron Power Relays for dependable performance in electronics and electrical control systems. Explore EnvMart's wide selection of relays and electrical components for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 6V DC, ensuring stable and efficient operation.
It supports a maximum switching current of 5A, making it suitable for various electrical loads.
The dimensions of this relay are 25.5mm in height, 13mm in width, and 29mm in length, which optimizes PCB space usage.
This model features a double-pole double-throw (DPDT) contact configuration for versatile switching applications.
The relay is constructed with silver alloy contacts that provide a low contact resistance of 50mΩ for reliable conduction.
It operates effectively within a temperature range from -40°C to 70°C, supporting demanding environmental conditions.
The coil resistance is 68Ω, contributing to its low power consumption of 0.53W.
This relay is designed for PCB mounting with solder terminal type for secure installation.
It conforms to the Restriction of Hazardous Substances (RoHS) directive and is recognized under multiple standards including UL508 and CSA22.2.
The maximum switching voltage for DC is 125V and for AC is 380V.
It is widely used in industrial automation, control panels, and electrical switching applications requiring reliable relay operation.
The coil power consumption is 0.53W, which contributes to its energy efficiency during operation.
