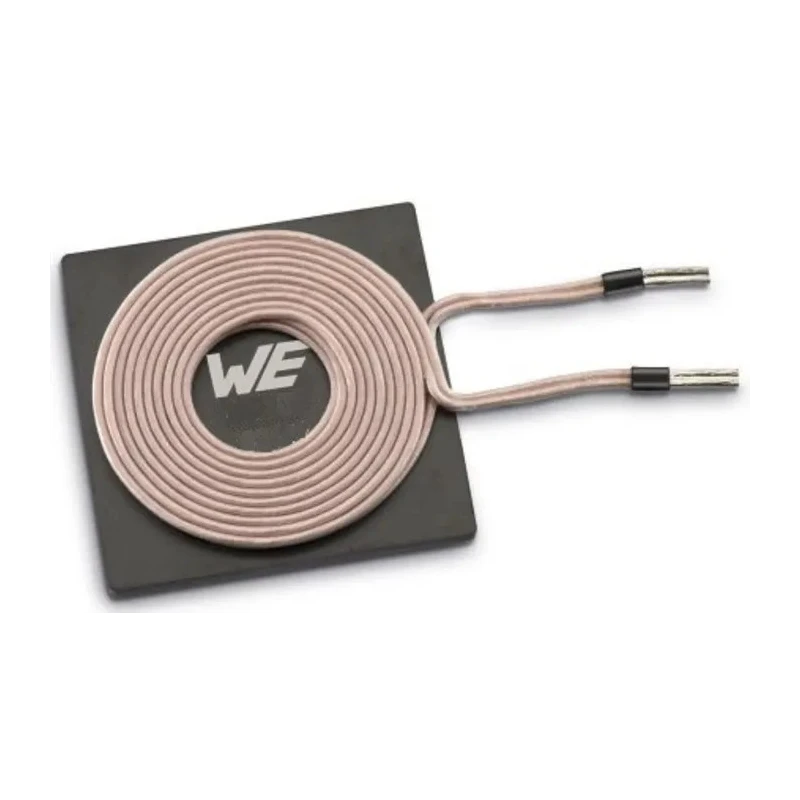

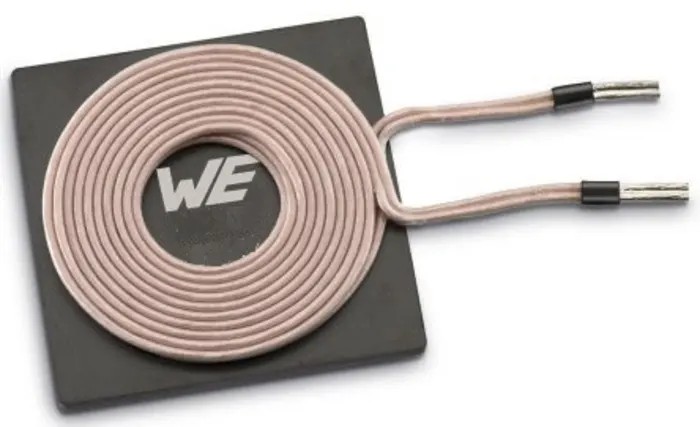

Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 1.1 A, 26 μH, 19 mm Dia 760308101214

Wurth Elektronik 760308101214 WE-WPCC series Wireless Charging Coil receiver offers a reliable, compact solution for inductive power transfer applications. Featuring a ferrite core and radial mount design, this coil is optimized for Qi wireless charging technology.

The coil provides a maximum DC current rating of 1.1 A, an inductance of 26 μH, and low DC resistance of 520 mΩ which together enable efficient power reception with minimal losses. Its inductance tolerance of ±10% ensures consistent performance in demanding environments.

Its slim 0.8 mm height and 19 mm diameter make it ideal for integration into portable electronic devices such as fitness trackers, smart watches, smartphone sleeves, and other consumer electronics requiring wireless charging capabilities.

The coil is designed with EMI shielding on the rear side to reduce magnetic leakage fields, enhancing safety during operation. It meets DIN ISO 2768-1m quality standards, reflecting Wurth Elektronik’s commitment to manufacturing precision components.

This wireless coil supports operating temperatures from -20°C up to 105°C, making it suitable for use in a variety of industrial, laboratory, commercial, and consumer settings including clean rooms and medical facilities where connector wear or contamination could be a concern.

The WE-WPCC series coils use litz wire winding instead of bifilar wire, achieving higher quality factors and improving efficiency up to 75% when paired with appropriate transmit coils. This wireless charging solution contributes to safer, more durable device charging without the wear-and-tear of physical connectors.

Applications include wireless charging for portable devices, smart sensors, communication devices, and explosion-sensitive environments where electrical connections are restricted.

Compatible with Qi wireless charging for universal device support. Flat ferrite core coil with radial mounting. Maximum DC current: 1.1 A. Inductance: 26 μH ±10% tolerance. Low resistance of 520 mΩ. Operates from -20°C to 105°C.
