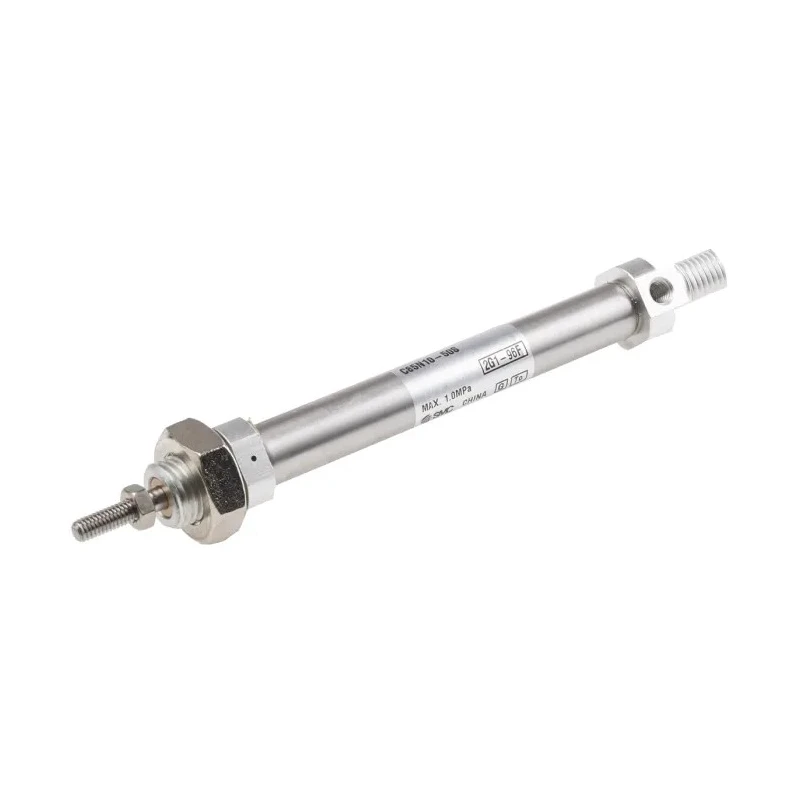

SMC Pneumatic Piston Rod Cylinder 50 mm Stroke Single Acting Aluminium Alloy Body C85N10-50S

The SMC C85N10-50S Pneumatic Piston Rod Cylinder is a high-quality, single acting actuator designed for precision pneumatic applications in industrial, manufacturing, construction, and automation environments. It offers a stroke length of 50 mm and an overall body length of 136 mm, created to meet ISO 6432 and CETOP RP52P mounting standards ensuring interchangeability and 100% mounting repeatability accuracy.

Constructed with an aluminium alloy body, the cylinder incorporates a stainless steel barrel and piston rod which resist corrosion and wear. The piston rod is female-threaded with a metric thread standard, allowing secure fitting for system integration. Both ends of the cylinder are tapped for mounting flexibility. Rubber cushioning reduces impact and noise during operation.

This cylinder supports piston speeds up to 1500 mm/s, enabling fast and efficient actuation cycles. The maximum operating temperature is rated at 80°C, suitable for a variety of industrial conditions. The double-swaged anodised aluminium end caps provide airtight sealing, enhancing performance stability and durability.

Special elastomer seals provide abrasion resistance and extend the life of the piston rod seal, which is replaceable to reduce downtime. Additionally, the unit includes a piston rod locknut and nose-mounting nut for easy installation. Its unique dust seal offers excellent resistance to dusty environments, ensuring reliable operation in harsh conditions.

SMC C85 pneumatic cylinders find applications in sectors such as manufacturing automation, fluid power systems, materials handling, packaging machinery, and other pneumatic control systems. Their robust design, combined with ease of installation and maintenance, makes them a preferred choice for precision pneumatic actuation.

Conforms to ISO 6432 and CETOP RP52P standards for guaranteed compatibility. High durability due to corrosion-resistant materials and abrasion-resistant seals. Suitable for use in dusty environments thanks to special dust seal design.

Single acting operation with rubber cushioning for quiet, efficient performance. Compact design with tapped mounts for versatile installation options. Operates reliably up to 80°C, accommodating various industrial applications.

Includes piston rod locknut and nose-mounting nut for secure fittings.
