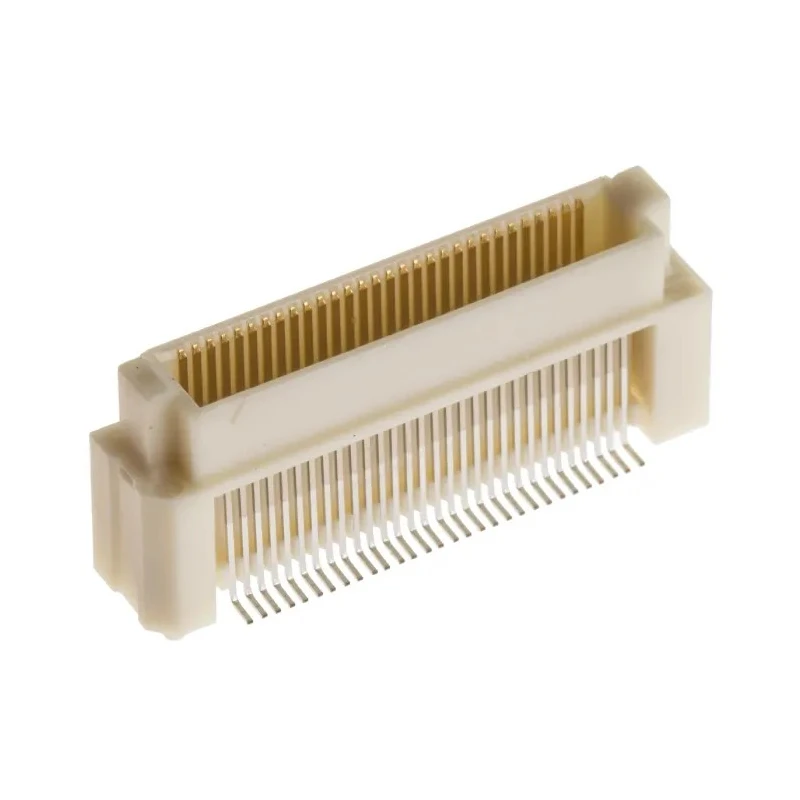

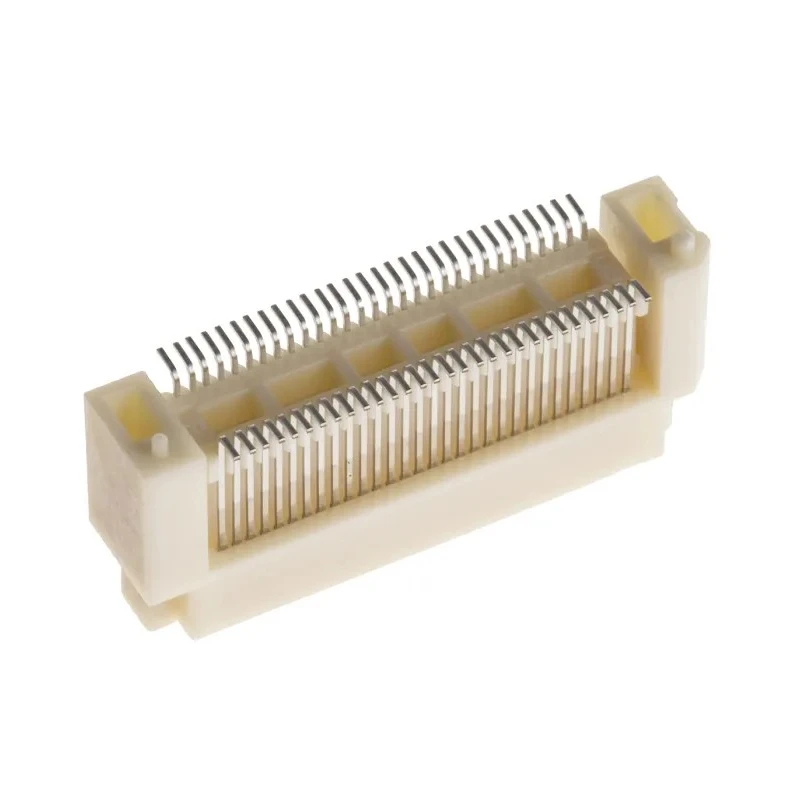

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 60 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8C |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- FunctionMAX FX8C series provides high-speed transmission up to 3.125 Gbit/s.
- Features 60 male contacts arranged in 2 rows with 0.6 mm pitch.
- Constructed with polyphenylene sulphide housing and phosphor bronze contacts.
- Gold-plated contact surface ensures optimal conductivity and durability.
- Capable of operating between -55°C to 85°C temperature range.
- Designed for board-to-board connection with surface mount type.
- Built-in guide ribs enable self-alignment tolerance of ±0.6 mm for easy mating.
- Suitable for server, industrial, medical, and POS terminal applications.
Product Description
Hirose FX8C Series Straight Surface PCB Header FX8C features 60 male contacts arranged in 2 rows with a compact 0.6 mm pitch optimized for board-to-board surface mounting applications. Its polyphenylene sulphide housing and gold-plated phosphor bronze contacts deliver excellent durability with a maximum operating temperature of 85°C and minimum of -55°C.
This FunctionMAX FX8C connector series supports high-speed signal transmission up to 3.125 Gbit/s, making it ideal for advanced electronics requiring reliable and noise-resistant board connections. Built-in guide ribs provide a self-alignment tolerance of ±0.6 mm, facilitating easy and accurate mating during assembly.
The connector incorporates spring deflection contact design and a 2 mm wiping distance, ensuring enhanced contact reliability and electrical continuity. Bosses on the PCB aid alignment and prevent misinsertion, improving manufacturing quality and consistency.
Applications of the FX8C series include servers, broadcast equipment, industrial machinery, medical devices, and point-of-sale terminals. The shrouded design offers extra protection for contacts during handling and installation.
High-speed transmission rate of 3.125 Gbit/s ensures signal integrity. Polyphenylene sulphide housing provides thermal and mechanical endurance. Phosphor bronze contacts with gold plating retain conductivity and resist corrosion.
Self-aligning guide ribs simplify mating with ±0.6 mm tolerance. Spring deflection contacts enhance durability and contact reliability. Surface mount type fits compact PCB layouts. Wide operating temperature range from -55°C to 85°C.
Suitable for diverse industrial and commercial electronic equipment.
This Hirose FX8C PCB header is a dependable choice for high-performance board-to-board connections in various electronic systems. Discover more PCB Headers and connectors in our Electronics & Electricals category to match your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FX8C series PCB header supports high-speed signal transmission up to 3.125 Gbit/s.
This model features a compact 0.6 mm pitch and has 60 male contacts arranged in 2 rows.
It is constructed with a polyphenylene sulphide housing and phosphor bronze contacts, with a gold-plated contact surface for optimal conductivity.
The FX8C PCB header operates within a temperature range of -55°C to 85°C.
This connector is designed for surface mounting applications.
The built-in guide ribs provide a self-alignment tolerance of ±0.6 mm, facilitating easy and accurate mating during assembly.
The current rating for this model is 400 mA.
The FX8C PCB header utilizes a solder termination type.
This connector has a straight orientation.
This model is suitable for applications in servers, broadcast equipment, industrial machinery, medical devices, and point-of-sale terminals.
The contact gender for this PCB header is male.
The country of origin for the FX8C series PCB header is India.
