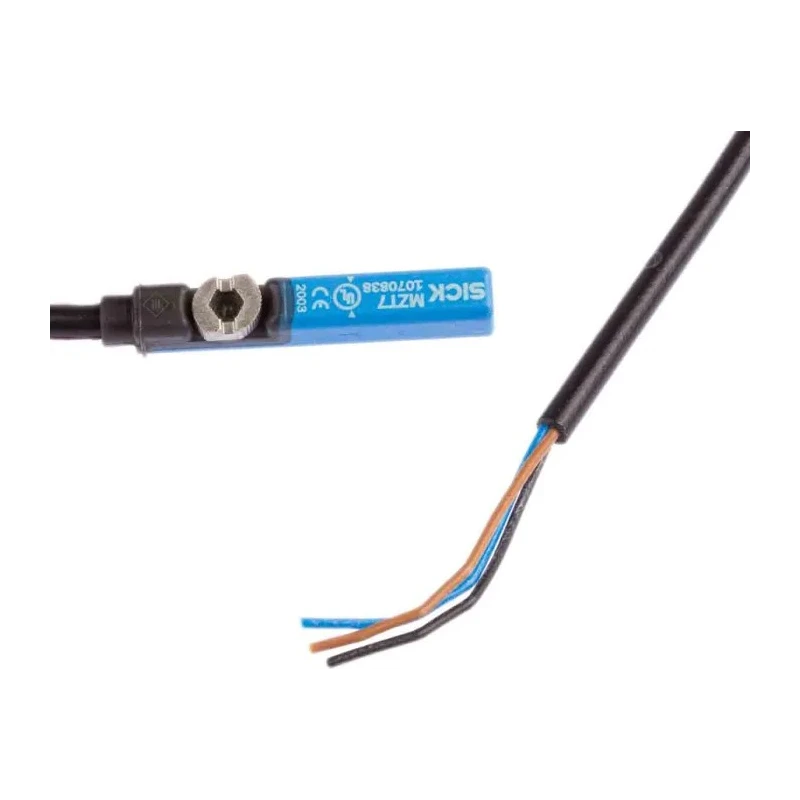

SICK Magnetic Pick Up Plastic Panel Mount Sensor 30V DC Max Supply Voltage MZT7-03VPS-KW0 MZT7-03VPS-KW0 / 1070838

SICK MZT7-03VPS-KW0 Magnetic Pick Up Plastic sensor is a panel mount motion control sensor operating at a maximum supply voltage of 30V DC. It is designed to detect magnetic fields for precise rotational speed monitoring in industrial setups.

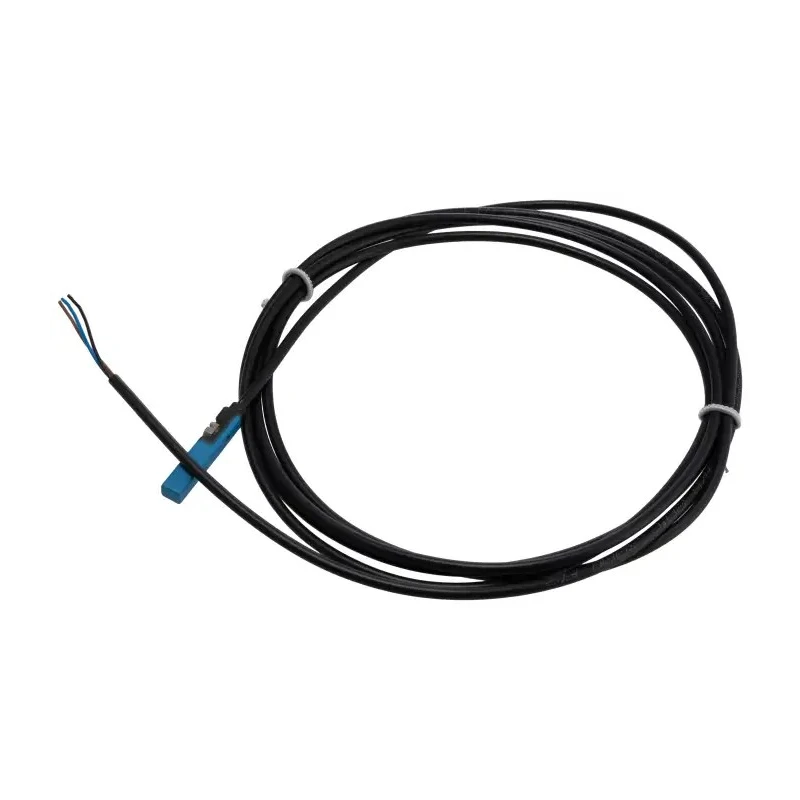

Featuring a robust plastic block housing and compact design, the sensor is suitable for mounting on cylinders and rails requiring contactless position or speed feedback. The axial 3-wire cable of 2 meters length facilitates straightforward electrical integration into industrial machinery.

With an IP65 and IP67 rated enclosure, this sensor offers strong resistance against ingress of dust and water, making it well suited for wet and harsh environments. It operates efficiently within an ambient temperature range of -30°C to +70°C, sustaining performance even under mechanical stress such as shock up to 30g and vibration from 10 to 55 Hz.

The sensor supports a switching frequency of 1000Hz enabling high-resolution pulse detection and has a typical magnetic response sensitivity of 3mT ensuring reliable actuation. It can handle continuous current up to 100mA allowing direct interfacing with control electronics. An integrated LED provides immediate visual feedback on switching output status for quick diagnostics.

Electrical protections incorporated in the design include reverse polarity and internal short-circuit protections, thereby enhancing operational safety and device longevity in automated industrial environments.

This magnetic pick-up sensor is ideal for rotational speed monitoring on pneumatic cylinders and is compatible with SMC CDQ2 and ECDQ2 rails for position feedback applications. It is also used effectively on dovetail groove cylinders needing T-slot sensors and is suitable for machine control tasks requiring waterproof magnetic sensing.

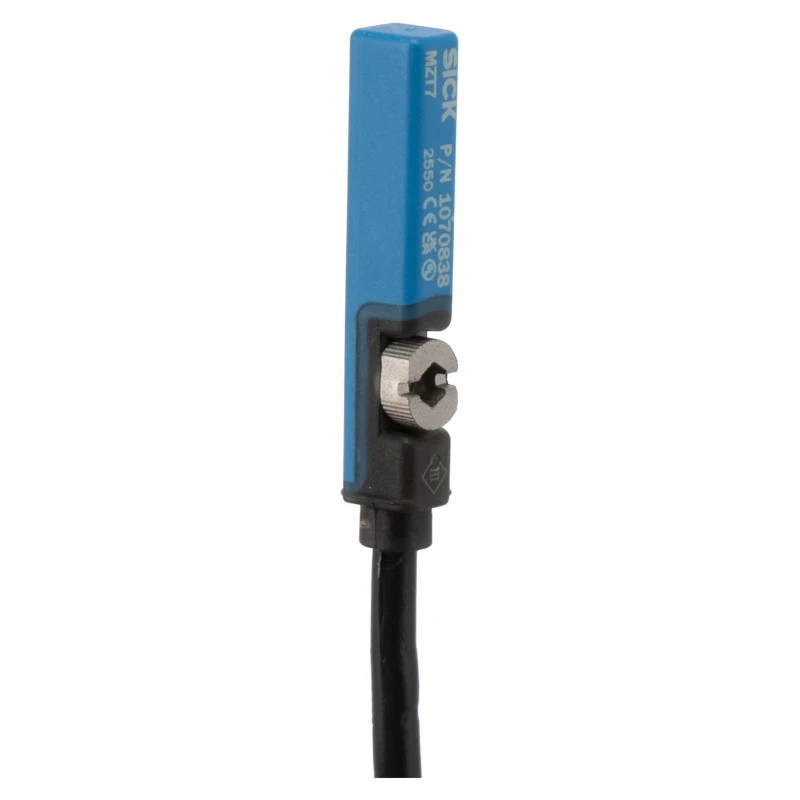

This sensor features a compact block body style with a plastic housing for durability. Panel mount installation is suitable for integration with pneumatic and profile cylinders. The sensor supports a maximum supply voltage of 30V DC with a switching frequency of 1000Hz for high resolution.

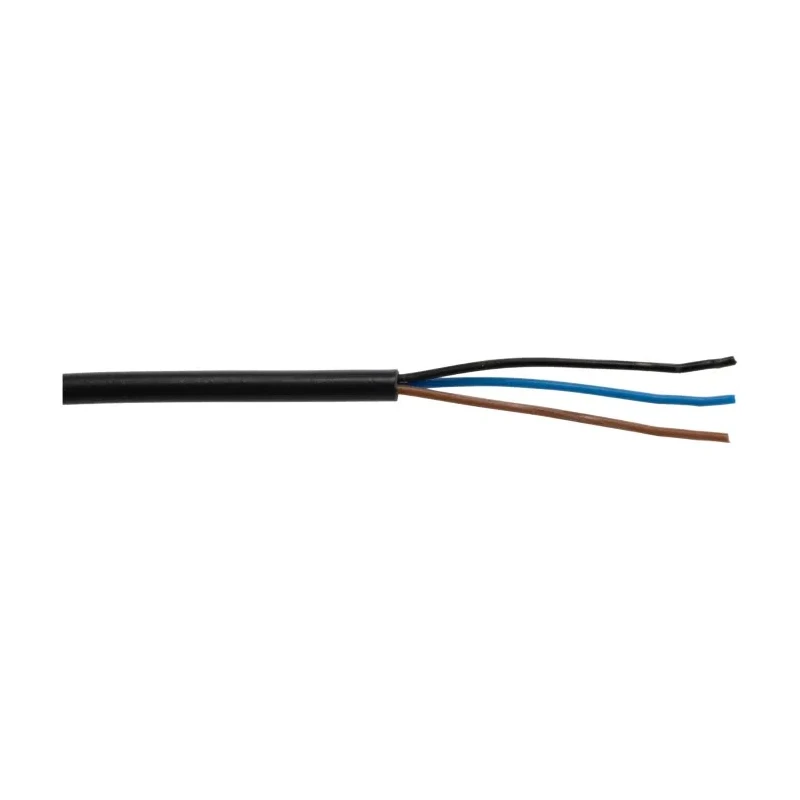

It includes an axial 3-wire 2m cable simplifying electrical connection in industrial applications. Designed with IP65/IP67 rated enclosures, it offers excellent resistance to water and dust in harsh environments. It withstands shock up to 30g and vibration from 10-55 Hz ensuring robust industrial performance.

The sensor has integrated LED for visual switching status diagnostics and includes reverse polarity and short-circuit protection. Designed for use in rotational speed monitoring on pneumatic cylinders and machine control requiring waterproof sensing.
