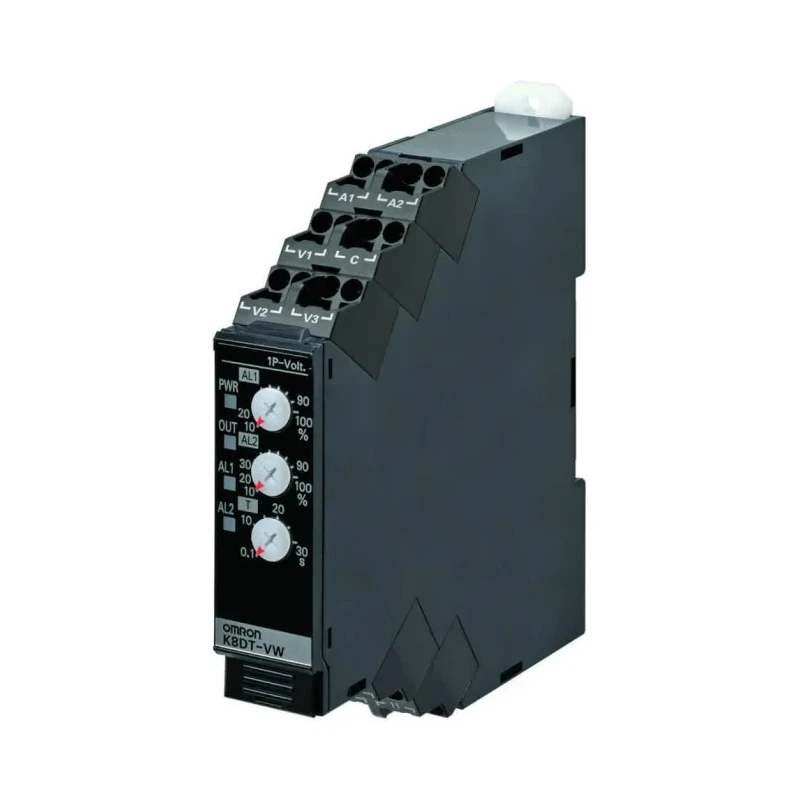

Omron Single Phase Monitoring Relay 240V AC, SPDT Contact, DIN Rail Mount K8DT-VW2CA

Omron K8DT-VW2CA is a single phase monitoring relay designed for voltage supervision applications in industrial and automation settings. It operates on a wide supply voltage range of 100 to 240V AC and detects both overvoltage and undervoltage conditions, helping to protect electrical installations and sensitive electronics.

This device is configured with a Single Pole Double Throw (SPDT) contact, rated at 10A, enabling it to handle standard control and signalling loads efficiently. The compact form factor with a 17.5mm width allows for high-density mounting within control panels via standard DIN rail clips, saving valuable cabinet space.

Push-in terminal technology is incorporated to decrease installation time while ensuring secure and reliable electrical connections. The relay operates within an ambient temperature range of -20°C to 60°C, suitable for typical indoor electrical rooms and conditioned environments such as HVAC control panels.

Certifications include compliance with EN 60947-5-1 and UL 60947-5-1 standards governing electrical control circuit devices and components, alongside RoHS environmental standards. Power consumption is rated at a low 2.5VA, aiding energy efficiency.

Typical applications for the Omron K8DT-VW2CA include monitoring supply voltage to motor starters, integration within factory automation control racks, use in distribution boards to protect sensitive electronics, and voltage supervision in HVAC control systems.

The SPDT contact arrangement allows versatile switching capabilities for control and signalling. Operates with a 10A contact current to support typical load requirements. Features a compact 17.5mm width, DIN rail mounting for efficient panel integration.

Utilizes push-in terminals that reduce wiring time and ensure reliable connections. Designed to operate in ambient temperatures from -20°C to 60°C for indoor electrical environments. Complies with EN 60947-5-1, UL 60947-5-1, and RoHS standards for safety and environmental protection.

Power consumption is minimal at 2.5VA, reducing load on supply circuits. This model is made in China and is a new product suitable for electrical distribution and automation systems requiring robust and reliable voltage monitoring.

Explore additional Omron Monitoring Relays and related automation components in the Electronics & Electricals category on EnvMart to find complementary control and protection devices.
