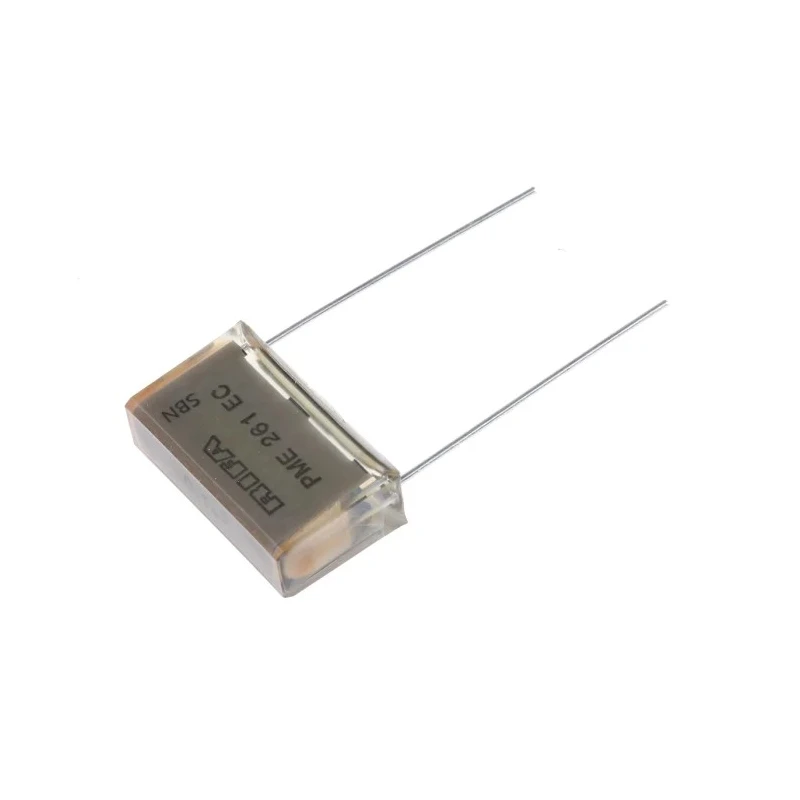

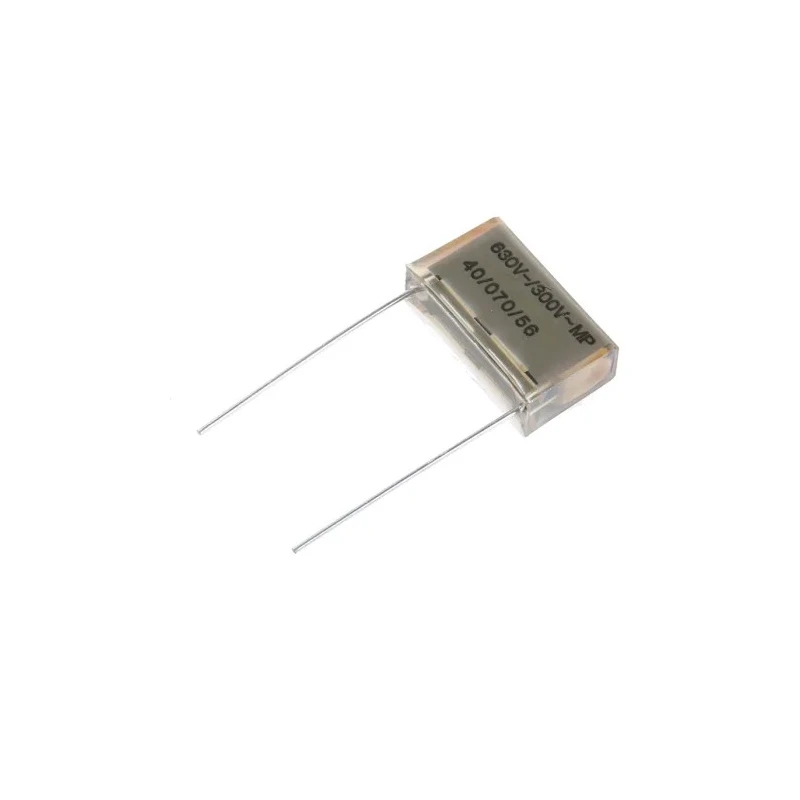

KEMET PME261 Paper Capacitor 630V AC 630 V DC 100nF Through Hole PME261

KEMET PME261 Paper Capacitor model PME261 is a high-quality paper capacitor with capacitance of 100nF designed for through-hole mounting. It has rated AC voltage of 630V and DC voltage of 630V, making it suitable for general use in DC and low frequency pulse applications across industrial electronics, power supply circuits, and manufacturing equipment.

The capacitor is encapsulated with self-extinguishing impregnated paper material meeting UL 94V-0 flammability requirements, offering excellent stability and outstanding reliability under continuous use. Its high dV/dt capability and self-healing properties provide enhanced performance in demanding electrical environments. Resistant to ionisation due to the impregnated dielectric, this capacitor complies with UL and IEC 60286-2 standards to ensure safety and quality.

Key physical specifications include a lead pitch of 20.3 mm, lead diameter of 0.8 mm, and compact size with 24 mm length, 14 mm height, and 7.6 mm depth. It is rated for a maximum operating temperature of 100°C. The capacitor has two pins for secure through-hole circuit board mounting.

This component is intended for electrical engineers and technicians working in electronics assembly, industrial automation, and power conditioning where reliable filtering and pulse handling is critical. It should not be used in positions where capacitor failure could create electric shock hazards.

Encapsulated in self-extinguishing UL 94V-0 material for safety. Excellent stability and reliability for continuous operation. High dV/dt capability with outstanding self-healing properties. Good resistance against ionisation from impregnated dielectric.

Compliant with UL and IEC 60286-2 standards. 20.3 mm lead pitch with 0.8 mm diameter leads. Capacitance of 100nF for general DC and low frequency applications. Rated voltages: 630V AC and 630V DC. Maximum operating temperature: 100°C.

Compact dimensions suitable for through-hole mounting.

Choose KEMET PME261 capacitors for dependable performance in electronic circuit design, industrial applications, and power filtering solutions. Explore more film Capacitors and related components in the Electronics & Electricals category at EnvMart.
