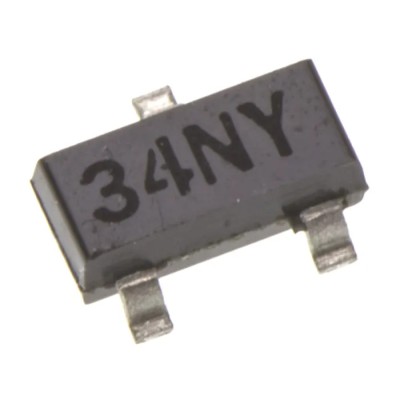

STMicroelectronics Low Power Voltage Detector 3-Pin SOT-23 3.06 V Threshold STM1061N30WX6F

STMicroelectronics STM1061N30WX6F is a low power voltage detector designed for power supply monitoring and microprocessor reset supervision in electronic systems. The device monitors a single supply voltage and asserts an active low reset output whenever this voltage falls below a fixed threshold of 3.06 V. This ensures stable operation of digital circuits by preventing erratic behavior during voltage dips.

Housed in a compact 3-pin SOT-23 surface mount package measuring only 3.04 mm in length, 1.4 mm in width, and 1.12 mm in height, the STM1061N30WX6F is well suited for space-constrained applications. Its low power consumption and wide operating voltage range - from a minimum of 700 mV to a maximum of 6 V - make it suitable for battery-powered and portable devices.

The output driver is open drain and active low, facilitating easy connection to various microcontroller input pins with pull-up resistors. It includes a hysteresis feature to avoid output chatter near the threshold level. The detector operates reliably over a temperature range of -40°C to 85°C, making it ideal for industrial and automotive electronics.

Typical applications for the STM1061N30WX6F include desktop and portable computers, test and measurement instruments, battery-powered equipment, and multiple-output power supplies. It ensures power-on reset and prevents operation under undervoltage conditions, enhancing system reliability and longevity.

Monitors supply voltage with 1 supervisor for reliable reset operations. Features open drain active low output for easy interfacing. Operates over a temperature range from -40°C to 85°C for wide environmental tolerance. Small surface mount package dimensions: 3.04 mm length, 1.4 mm width, and 1.12 mm height.

Minimum operating voltage is 700 mV and maximum supply voltage is 6 V. Ideal for embedded microprocessor supervisory and reset circuits. Ensures proper operation of microcontrollers with power fail detection capabilities.

Package type SOT-23 enables compact PCB design and high assembly efficiency.

This Voltage Detector IC is compliant with typical power management requirements and supports robust design of electronic products in industrial, commercial, and automotive sectors. Explore more power management ICs and voltage monitoring components in EnvMart’s extensive catalog.
