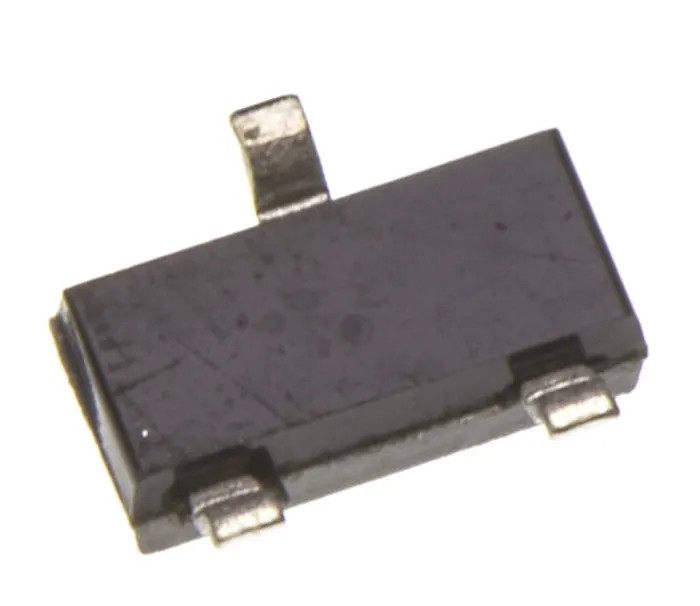

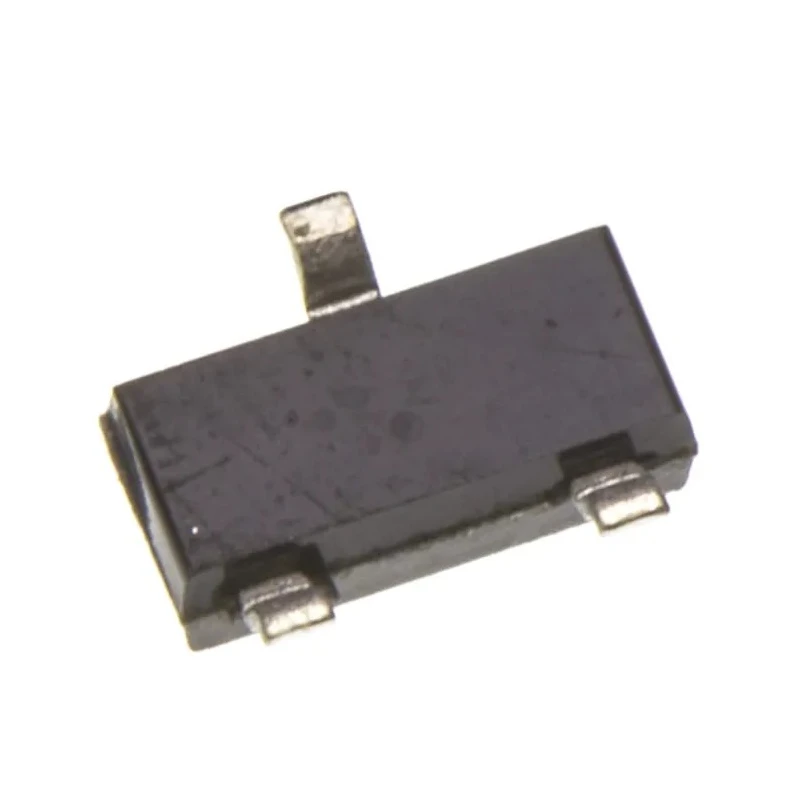

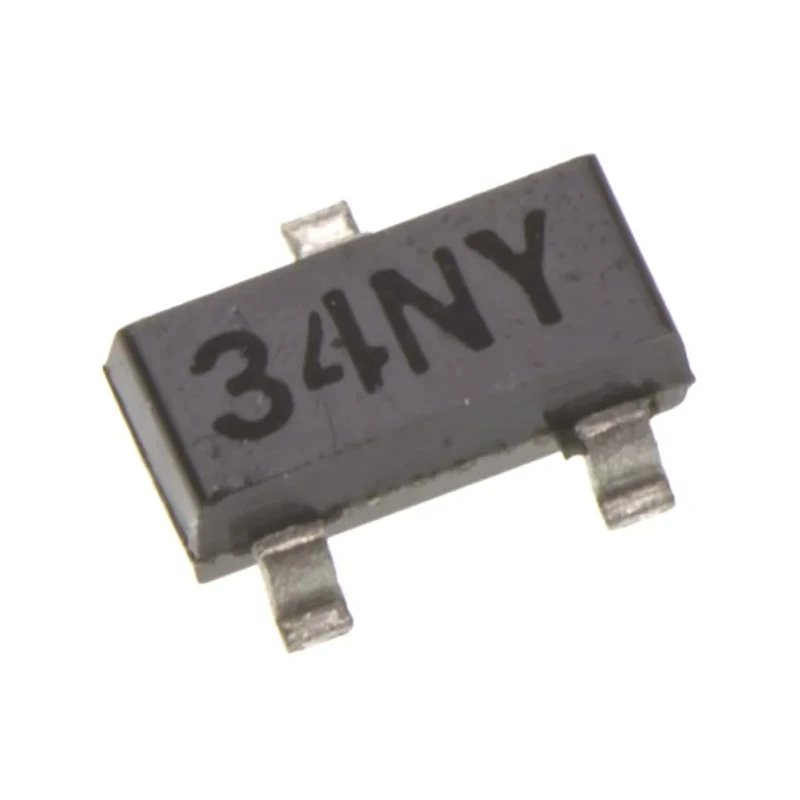

STMicroelectronics Low Power Voltage Detector 3-Pin SOT-23 Package 3.468V Reset Threshold STM1061N34WX6F
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.12mm |
| Length | 3.04mm |
| Model | STM1061N34WX6F |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | STM1061 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Sub Type | Low Power Voltage Detector |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 700mV |
| Number of Supervisors | 1 |
| Output Driver | Active Low, Open Drain |
| Reset Threshold Voltage | 3.468V |
| Monitored Voltage | 1.6V |
Key Features
- Monitors supply input voltage to detect drops below threshold.
- Features an active low, open drain output driver for efficient signaling.
- Operates over a temperature range of -40°C to 85°C ensuring durability.
- Compact surface mount SOT-23 package with a 3-pin configuration.
- Maximum supply voltage is 6V, minimum supply voltage is 700mV for versatility.
- Designed for microprocessor supply voltage supervisory and reset functions.
- Single supervisor voltage detector suitable for low power applications.
Product Description
STMicroelectronics STM1061N34WX6F low power voltage detector is a precision device in a compact 3-pin SOT-23 surface mount package, designed to monitor supply voltage levels effectively. It features a reset threshold voltage of 3.468V, which ensures that when the power supply falls below this trip point, the output is driven low to initiate corrective action or reset.
This voltage detector IC incorporates an active low, open drain output driver, facilitating efficient interfacing with microprocessor supervisory circuits. Ideal for power-on reset and voltage monitoring functions, it protects digital devices by monitoring voltage supplies over a temperature range from -40°C to 85°C, ensuring reliability in industrial and consumer electronic applications.
The STM1061 series is suited for use in desktop computers, laptops, notebooks, test equipment, battery-powered instruments, and multiple output power supplies requiring reliable voltage supervision and reset capabilities. Its low power consumption makes it favorable for portable devices.
Key physical dimensions include a length of 3.04mm, a width of 1.4mm, and a height of 1.12mm. The device supports a maximum supply voltage of 6V and a minimum supply voltage of 700mV, offering wide adaptability in different power systems.
Monitors supply voltage to ensure system stability and prevent malfunction. Open drain output allows for flexible system integration. Compact and easy-to-mount SOT-23 surface package saves PCB space. Suitable for voltage supervision and reset in microprocessor-based devices.
Wide operating temperature range supports use in diverse environments. Single supervisor channel covers one voltage level monitoring. Ensures protection against voltage drops for sensitive electronic systems. Low power operation extends battery life in portable electronic devices.
This STMicroelectronics Voltage Detector is an essential component for electronic designers seeking reliable and low power voltage supervision functionality, widely applicable in industrial, consumer electronics, computing, and instrumentation sectors. Explore more power management ICs and voltage supervisory solutions within EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The reset threshold voltage of the STM1061N34WX6F is 3.468V, which triggers the output to go low when the supply voltage drops below this level.
This voltage detector operates over a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
The STM1061N34WX6F can handle a maximum supply voltage of 6V, providing flexibility in different power systems.
It features an active low, open drain output driver, allowing for efficient signaling and integration with microprocessor supervisory circuits.
The dimensions of the STM1061N34WX6F are 3.04mm in length, 1.4mm in width, and 1.12mm in height, making it compact for surface mounting.
This model supports a single supervisor channel for monitoring one voltage level.
The minimum supply voltage for the STM1061N34WX6F is 700mV, allowing for versatility in various applications.
It is suitable for use in desktop computers, laptops, notebooks, test equipment, and battery-powered instruments requiring reliable voltage supervision.
The STM1061N34WX6F is packaged in a compact SOT-23 surface mount configuration, which saves PCB space.
This voltage detector monitors a voltage level of 1.6V, ensuring system stability and preventing malfunctions.
The STM1061N34WX6F belongs to the STM1061 series of low power voltage detectors, designed for effective voltage monitoring.
This model supports surface mounting, making it easy to integrate into various electronic designs.
