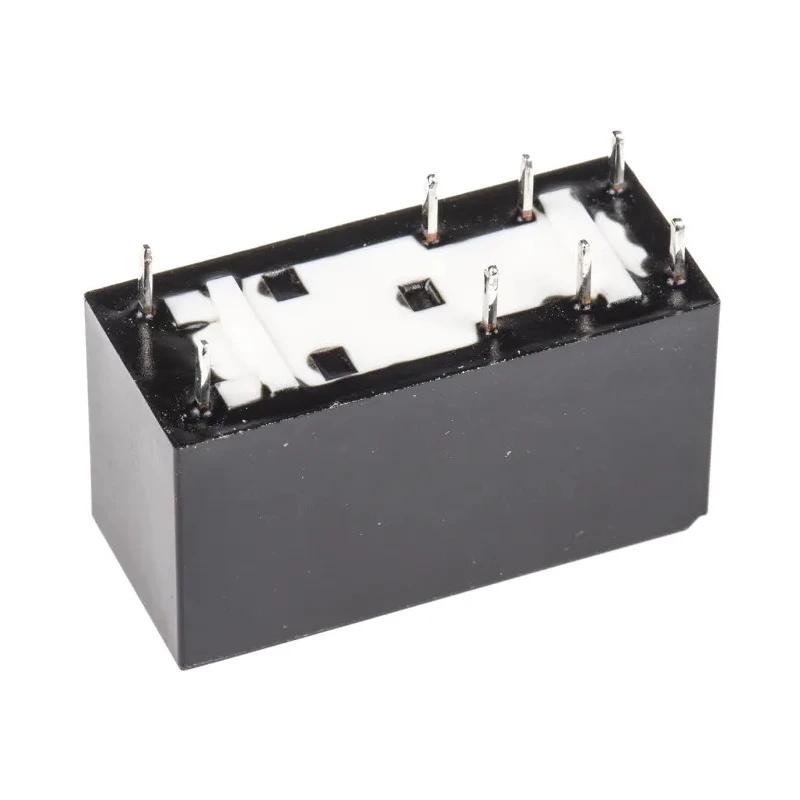

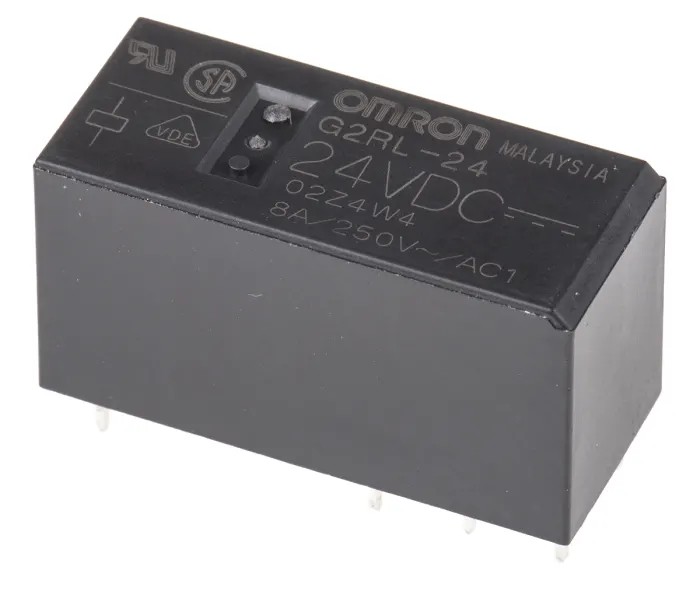

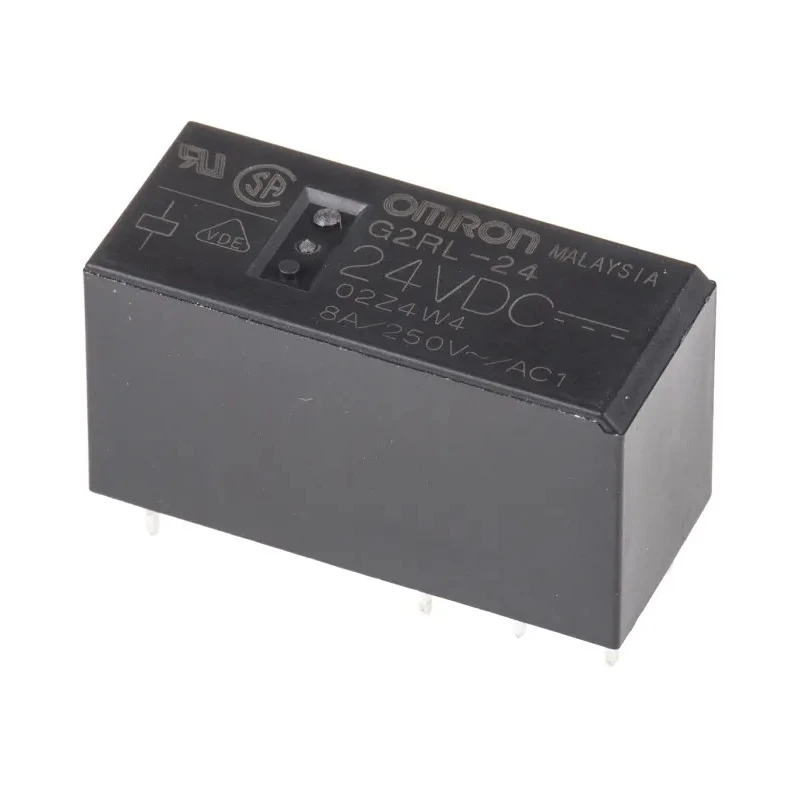

Omron PCB Power Relay 24V DC Coil 8A Switching Current DPDT G2RL-24 DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-24 DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, EN, IEC, RoHS, UL, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
| Omron PCB Mount Non-Latching Relay, 24V dc Coil, 8A Switching Current, DPDTBrand | Omron |
Key Features
- Compact low-profile design with 15.7mm maximum height for efficient PCB mounting.
- Coil voltage rated at 24V DC ensuring reliable operation.
- Double Pole Double Throw (DPDT) contact configuration supports versatile switching needs.
- Switching current capability of 8 amperes for moderate power applications.
- Silver alloy contact material offers good conductivity and durability.
- Operating temperature range from -40°C to 85°C suitable for various industrial environments.
- Through hole terminal type for secure PCB installation.
- Switching AC voltage up to 250V AC and switching power capacity of 2 kVA supports a wide range of load conditions.
Product Description
Omron G2RL-24 DC24 is a PCB power relay designed for reliable electrical switching with a 24V DC coil and an 8A switching current rating. Its DPDT contact configuration allows for flexible double pole double throw operations, making it suitable for industrial automation, HVAC control, and electrical switching applications.
The compact relay has a maximum height of 15.7mm and dimensions of 29mm length and 12.7mm width, optimized for PCB mounting with through-hole terminals for secure connections. The coil resistance is 1.4 kΩ with a power draw of only 400mW, providing efficient coil operation.
The relay is capable of switching up to 250V AC at 8 amps, with a switching power of 2 kVA, supported by silver alloy contacts to ensure durability and excellent conductivity. It is rated for operation in harsh industrial environments with a temperature range from -40°C to 85°C.
Safety and quality are assured by compliance with multiple certifications including CSA, EN, IEC, RoHS, UL, and VDE standards. The relay features a high tracking resistance (CTI > 250) meeting EN60335-1 requirements for electrical safety and reliability.
This Omron relay is ideal for industrial, manufacturing, automation systems, and electrical control panels where space-efficient, reliable switching is critical. Compact low-profile design for PCB mounting. 24V DC coil voltage with low power consumption.
DPDT contact configuration supports versatile switching. 8A switching current capacity for moderate load. High operating temperature range (-40°C to 85°C). Complies with international safety and quality standards. Silver alloy contacts provide durability and conductivity.
Through hole mounting for secure PCB installation. Tracking resistance meets EN60335-1 safety requirements. Suitable for industrial and automation electrical applications. Explore more Power Relays and Omron products in EnvMart’s comprehensive electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 8 amperes, suitable for moderate power applications.
The coil voltage of this relay is rated at 24V DC, ensuring reliable operation in various applications.
This relay features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching needs.
The operating temperature range for this relay is from -40°C to 85°C, making it suitable for harsh industrial environments.
The dimensions of this model are 29mm in length, 12.7mm in width, and a maximum height of 15.7mm.
This relay uses through-hole terminals for secure PCB installation, ensuring reliable connections.
The relay is capable of switching AC voltage up to 250V AC, suitable for various load conditions.
The coil resistance for this relay is 1.4 kΩ, which contributes to its efficient operation.
The coil power draw for this model is 400mW, indicating low power consumption during operation.
The contacts of this relay are made of silver alloy, providing good conductivity and durability.
This relay complies with multiple safety and quality standards including CSA, EN, IEC, RoHS, UL, and VDE.
This relay is suitable for applications in industrial automation, HVAC control, and electrical switching systems.
