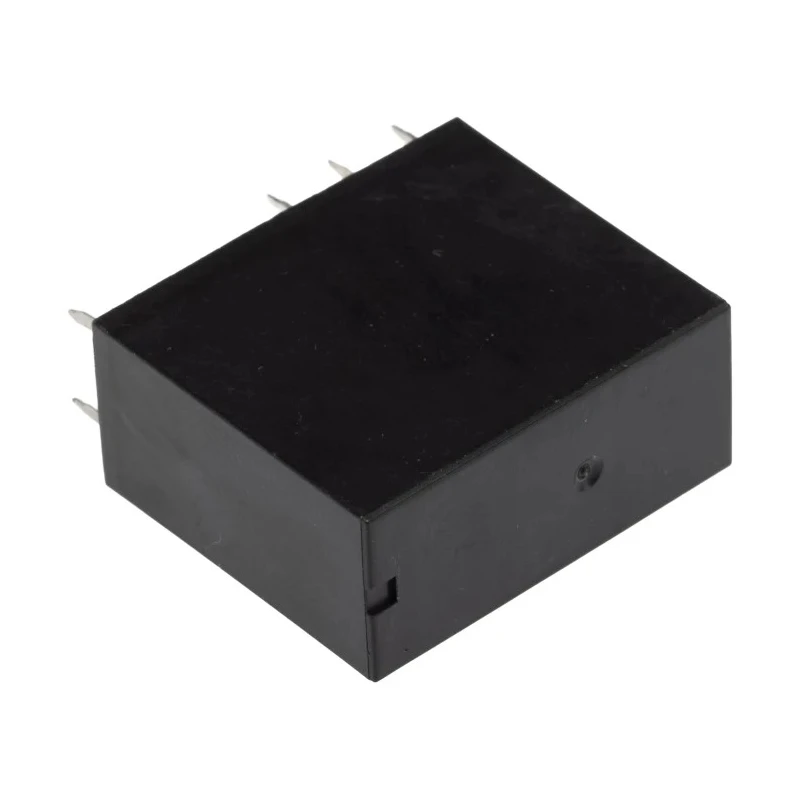

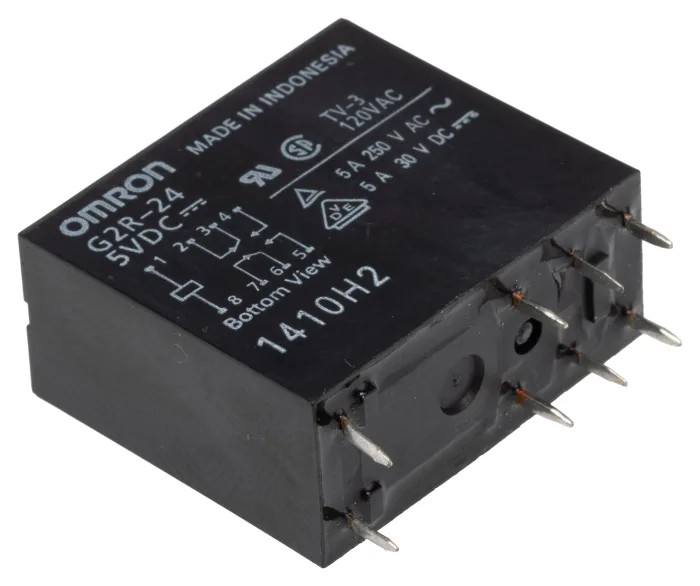

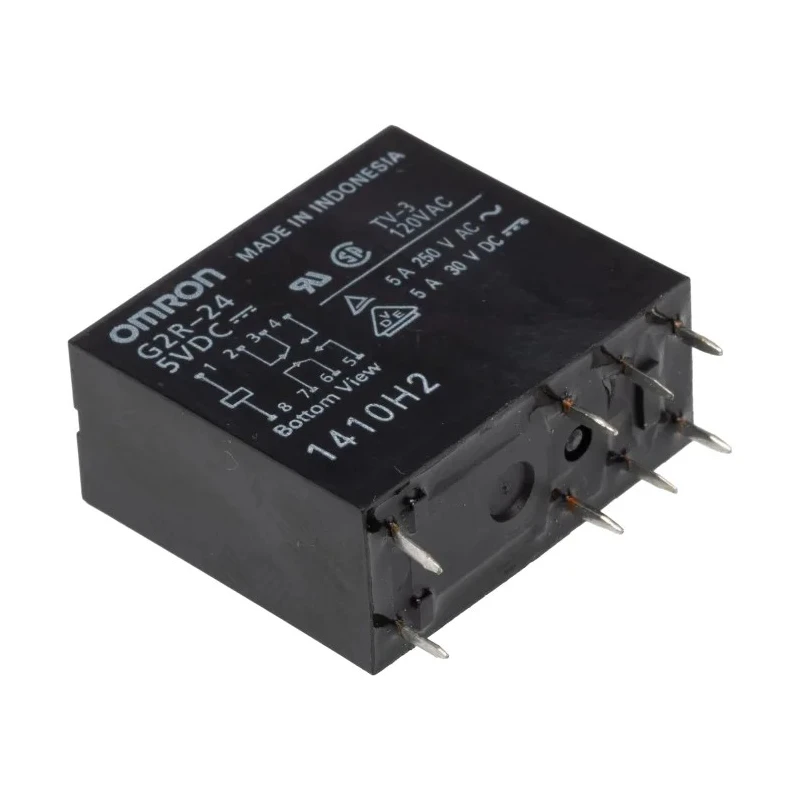

Omron PCB Power Relay, 5V DC Coil Voltage, 4A Switching Current, DPDT Contact Configuration, Series G2R G2R-24 DC5

Omron G2R-24 DC5 is a general-purpose PCB power relay designed for various domestic and commercial electrical applications requiring reliable and efficient switching solutions. It features a 5V DC coil voltage and a 4A switching current with DPDT contact configuration to handle multiple circuit switching tasks.

This relay is specifically designed for through-hole PCB mounting, ensuring stable and durable installation in electronic assemblies. The coil resistance of 47 ohms and coil power consumption of 0.53W guarantee low power consumption while maintaining strong electromagnetic operation.

Engineered to operate in harsh environments, the relay supports a wide operating temperature range from -40°C to 70°C. It is capable of switching high voltages up to 125V DC and 380V AC, with a maximum switching power of 1kVA, making it suitable for industrial control panels, HVAC systems, manufacturing equipment, and automation controls.

The silver alloy contacts enhance the relay's electrical conductivity and longevity, making it highly reliable in frequent switching applications. Its compact dimensions of 29mm length, 12.7mm width, and 25.5mm height optimize PCB space utilization.

The G2R-24 DC5 relay complies with international standards and holds certifications such as CSA, RoHS, VDE, and UL, ensuring safety and quality compliance for industrial and commercial use.

The relay provides a dual pole double throw (DPDT) contact configuration ensuring versatile switching. Designed for PCB mounting with through-hole terminal type for reliable installation. The coil resistance is 47 ohms with a coil power consumption of 0.53W.

Operates reliably within a temperature range of -40°C to 70°C for varied environments. Supports switching of up to 125V DC and 380V AC voltages with maximum switching power of 1kVA. Constructed with silver alloy contact material for durability and improved conductivity.

Dimensions are compact, measuring 29mm length, 12.7mm width, and 25.5mm height. Meets industry standards and approvals including CSA, RoHS, VDE, and UL certifications.

This Omron PCB power relay is ideal for use in electrical automation, control systems, telecommunications, industrial manufacturing, and other demanding environments where reliable power switching is essential.
