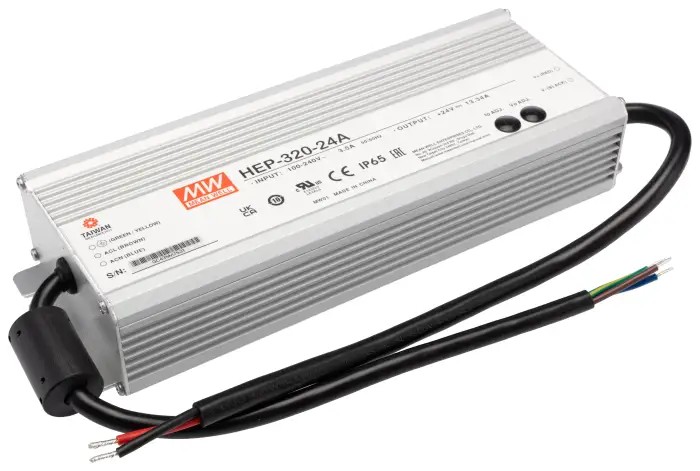

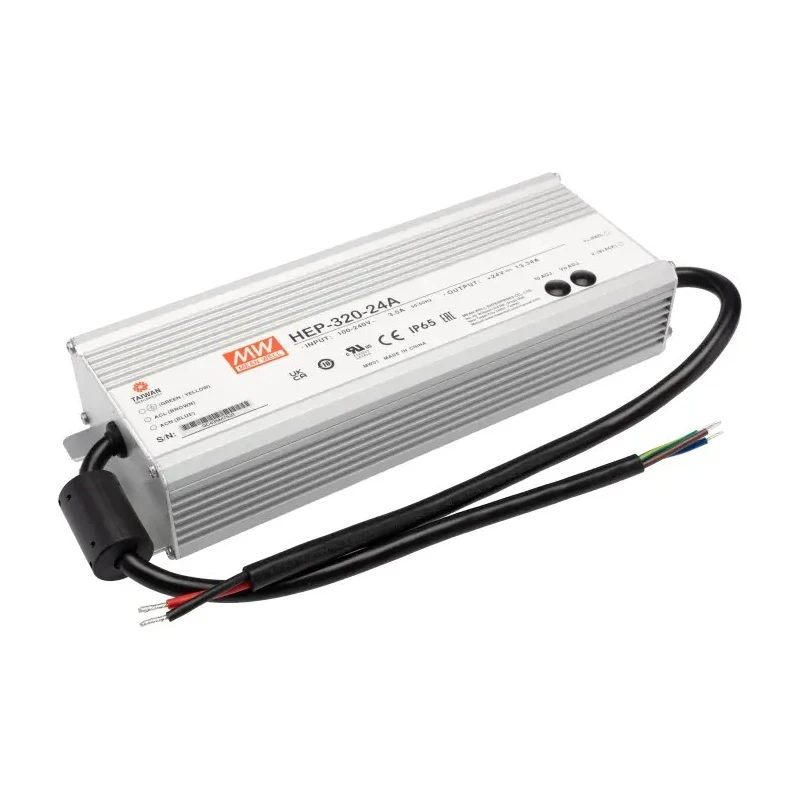

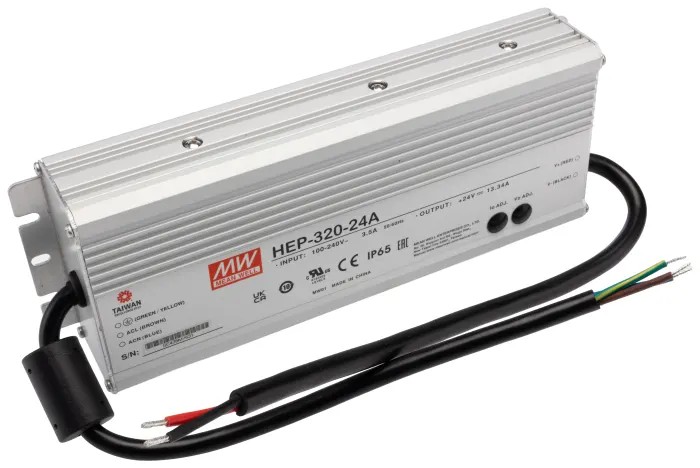

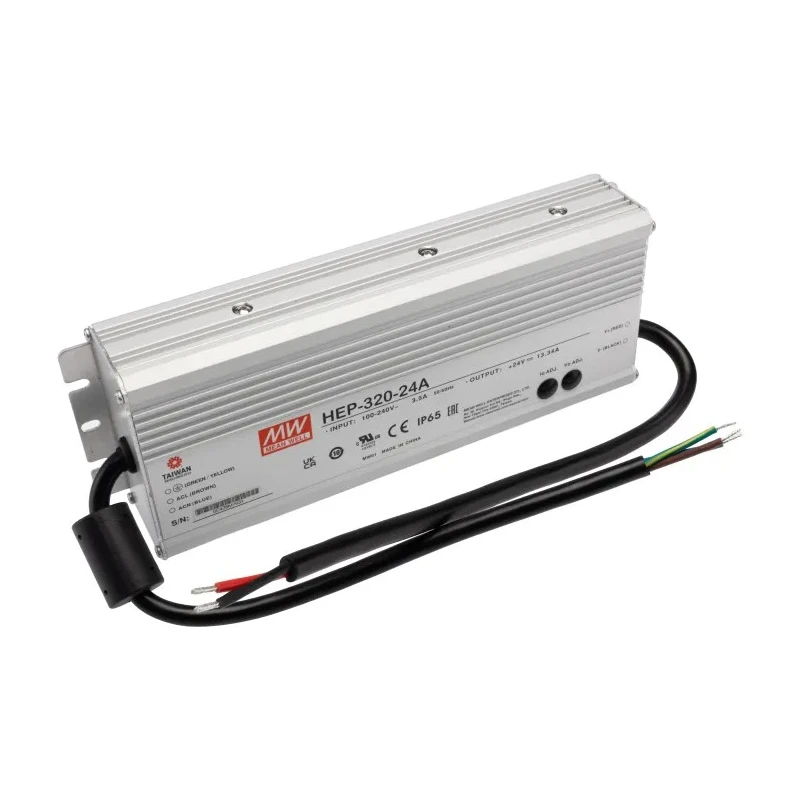

MEAN WELL Industrial-grade Switching Power Supply 24V DC, 320W Power, 13.34A Output Current, IP65 Aluminium HEP-320-24A
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 320W |
| Efficiency | 94% |
| Length | 252mm |
| Model | HEP-320-24A |
| Depth | 43.8mm |
| Gross Weight | 1.9kg |
| Width | 90mm |
| Mount Type | Chassis |
| Series | HEP-320 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -55°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 431, 305V dc |
| Standards/Approvals | EAC TP TC 004, TUV BS ENEN 6681, UL 6681, ASNZS 668.1 |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 13.34A |
| Minimum Input Voltage | 90V ac |
Key Features
- High-efficiency switching power supply with up to 94% efficiency.
- Universal AC input voltage range from 90V AC to 305V AC.
- Rugged IP65 rated aluminium casing with heat-conducted silicone potting.
- Operates in -55°C to 70°C temperature range with free air convection cooling.
- Withstands 10G vibration tests for industrial reliability.
- 6 kV surge immunity level for electrical robustness.
- Chassis mounting for secure installation.
- Compact size with dimensions 252mm (L) x 90mm (W) x 43.8mm (D).
Product Description
MEAN WELL HEP-320-24A is an industrial-grade switching power supply designed for demanding applications requiring stable 24V DC output with 320W power capacity. The power supply delivers a continuous output current of 13.34A, suitable for a broad range of industrial, telecom, mining, and petroleum environments.
This model features a universal AC input voltage range of 90 to 305V AC and supports DC input up to 431V, making it versatile for various power environments. The chassis mount design and aluminium casing with heat-conducted silicone potting ensure IP65 protection, providing exceptional resistance against humidity, dust, oil, and vibrations up to 10G. This rugged construction enables reliable operation in harsh outdoor and industrial settings.
Designed to operate between -55°C to 70°C without forced cooling, it uses natural convection cooling to maintain thermal stability. Its high efficiency of up to 94% reduces energy losses and heat generation. Electrical resilience is enhanced by a 6 kV surge immunity level, preventing damage from transient voltage spikes.
The power supply complies with global safety and EMC standards, including UL60950-1, EN60950-1, EN55022 Class B, and multiple EN61000 series electromagnetic compatibility tests, ensuring safe and reliable use worldwide.
This power supply is ideal for outdoor telecommunications equipment installations, external signage, mining and petroleum industries, manufacturing plants, and other industrial power control applications requiring dependable DC power.
High-efficiency switching power supply with up to 94% efficiency. Universal AC input voltage range from 90V AC to 305V AC. Rugged IP65 rated aluminium casing with heat-conducted silicone potting. Operates in -55°C to 70°C temperature range with free air convection cooling.
Withstands 10G vibration tests for industrial reliability. 6 kV surge immunity level for electrical robustness. Chassis mounting for secure installation. Compact size with dimensions 252mm (L) x 90mm (W) x 43.8mm (D). Complies to UL60950-1, EN60950-1, EN55022 Class B, and related EMC standards.
Explore more high-quality Switching Power Supplies and industrial electronics on EnvMart, your trusted source for reliable components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 13.34A.
It has an efficiency rating of up to 94%.
This unit operates within a temperature range of -55°C to 70°C.
It features a chassis mounting design for secure installation.
The dimensions are 252mm (L) x 90mm (W) x 43.8mm (D).
The maximum output voltage is 24V DC.
It complies with UL60950-1, EN60950-1, EN55022 Class B, and multiple EN61000 series standards.
It has a surge immunity level of 6 kV, which helps prevent damage from transient voltage spikes.
It is suitable for industrial, telecom, mining, and petroleum environments that require stable DC power.
The gross weight of this power supply is 1.9kg.
