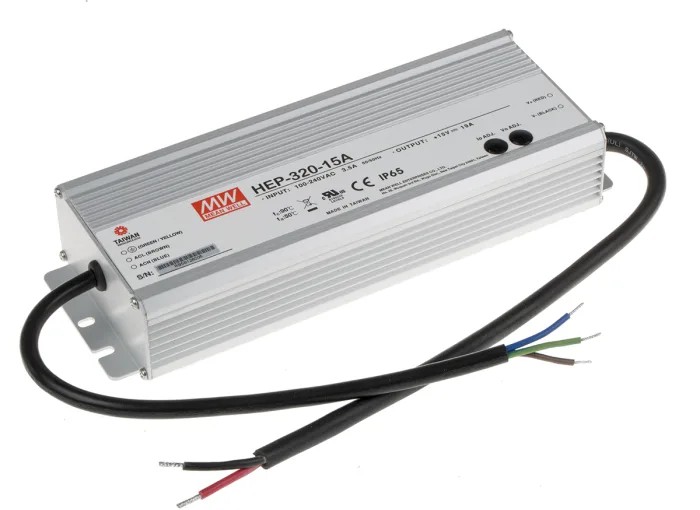

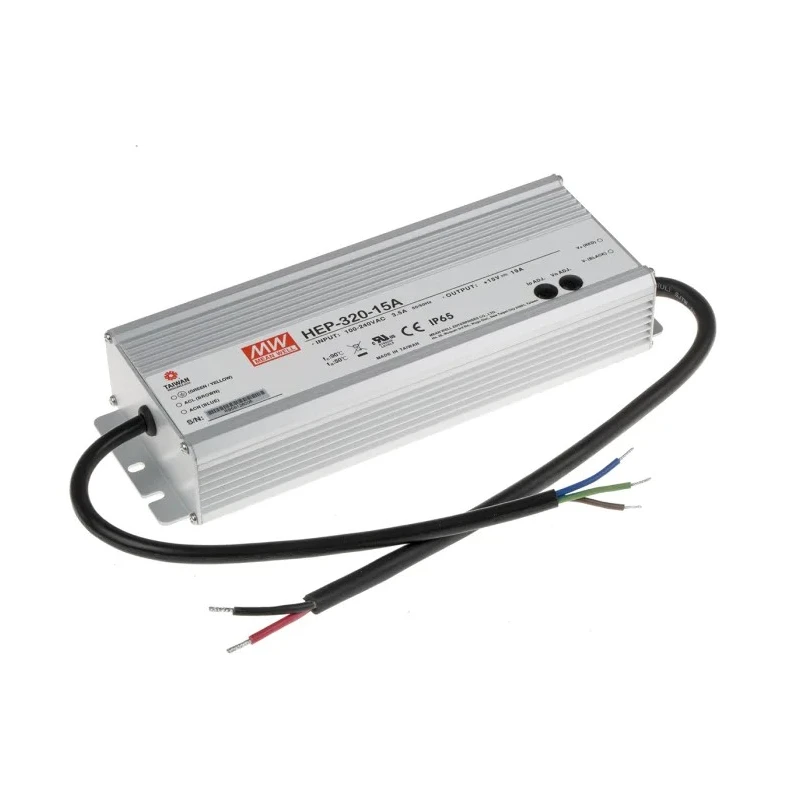

MEAN WELL Industrial-Grade Switching Power Supply 15V DC, 285W, 19A Output, Aluminium Casing, IP65 HEP-320-15A
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 285W |
| Efficiency | 92.5% |
| Length | 252mm |
| Model | HEP-320-15A |
| Depth | 43.8mm |
| Gross Weight | 1.9kg |
| Width | 90mm |
| Mount Type | Chassis |
| Series | HEP-320 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -55°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 431, 305V dc |
| Standards/Approvals | UL 6681, ASNZS 668.1, EAC TP TC 004, TUV BS ENEN 6681 |
| Maximum Output Voltage | 15V dc |
| SMPS Output Current | 19A |
| Minimum Input Voltage | 90V ac |
Key Features
- Supports universal AC input voltage with a wide range up to 305V AC.
- Operation temperature range from -55°C to +70°C under free air convection cooling.
- High efficiency of 92.5% enables energy-saving performance.
- Fully potted with heat-conducted silicone for enhanced durability and protection.
- Meets multiple safety and quality standards including UL, ASNZS, TUV, and EAC approvals.
- Designed for industrial-grade environments withstanding vibration up to 10G and surge immunity of 6 KV.
- Compact dimensions with length 252mm, width 90mm, and depth 43.8mm allow versatile installation.
- Ideal for outdoor telecom equipment, external signage, mining, and petroleum installations.
Product Description
MEAN WELL HEP-320-15A is an industrial-grade switching power supply that produces stable 15V DC output at 285W with a maximum output current of 19A, housed within a durable aluminium chassis. Designed to perform reliably in demanding environments, it operates efficiently from -55°C to +70°C using free air convection cooling.
The power supply supports universal AC input with a minimum input voltage of 90V AC and can tolerate maximum input voltages of 431V DC and 305V AC. Its fully potted design with heat-conducted silicone enhances resistance against dust, moisture, and vibration. The unit is tested to withstand 10G vibration shocks and surge immunity rated at 6 KV, ensuring operational integrity in industrial, telecommunications, mining, and petroleum applications.
Built to comply with safety standards including UL 6681, ASNZS 668.1, EAC TP TC 004, and TUV certifications, the HEP-320-15A also features a high efficiency rating of 92.5%, contributing to energy savings during extended operation. Compactly sized at 252mm (L) x 90mm (W) x 43.8mm (D) and weighing 1.9 kg, it is well suited for chassis mounting and installation in challenging conditions requiring IP65 protection.
Common applications include outdoor telecom equipment installations, external digital signage, and industrial deployments in mining and petroleum sectors. This device offers reliability and durability for continuous, heavy-duty industrial use.
Supports universal AC input voltage with a wide range up to 305V AC. Operation temperature range from -55°C to +70°C under free air convection cooling. High efficiency of 92.5% enables energy-saving performance. Fully potted with heat-conducted silicone for enhanced durability and protection.
Meets multiple safety and quality standards including UL, ASNZS, TUV, and EAC approvals. Designed for industrial-grade environments withstanding vibration up to 10G and surge immunity of 6 KV. Compact dimensions with length 252mm, width 90mm, and depth 43.8mm allow versatile installation.
Ideal for outdoor telecom equipment, external signage, mining, and petroleum installations. Constructed for harsh environments with IP65 ingress protection rating. Explore the extensive range of industrial and electronic power supplies at EnvMart for optimized power distribution solutions.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output power of 285W.
The efficiency rating is 92.5%, contributing to energy-saving performance during operation.
The operating temperature range is from -55°C to +70°C, allowing it to function in extreme conditions.
It has compact dimensions of 252mm in length, 90mm in width, and 43.8mm in depth, with a weight of 1.9 kg.
Yes, it is designed for outdoor applications and has an IP65 ingress protection rating, making it resistant to dust and water.
This unit meets multiple safety standards including UL 6681, ASNZS 668.1, EAC TP TC 004, and TUV certifications.
It can tolerate a maximum input voltage of 431V DC and 305V AC.
It operates using free air convection cooling, which helps maintain optimal temperatures during operation.
