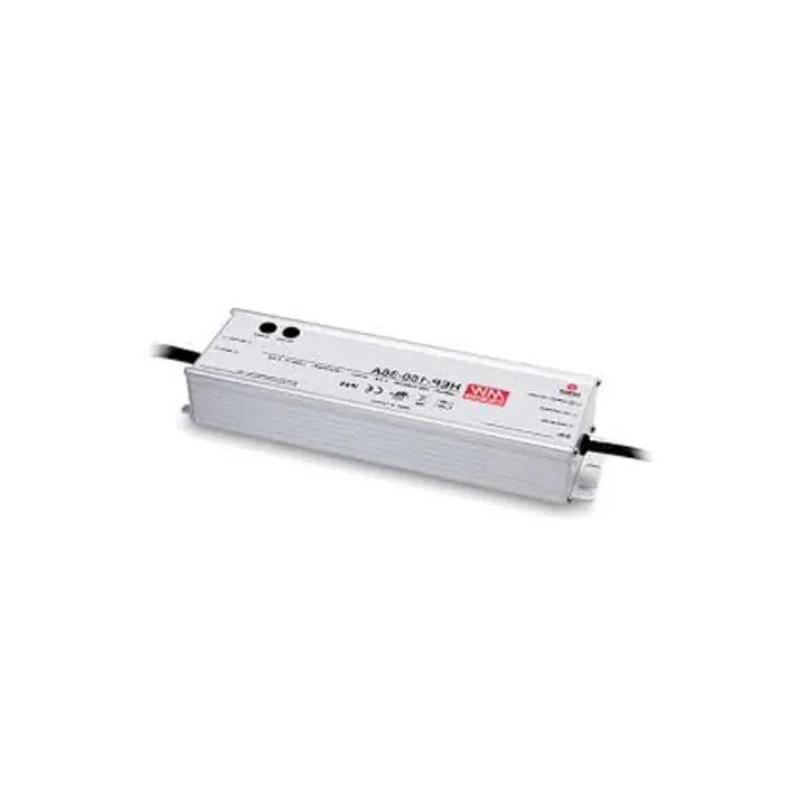

MEAN WELL Industrial-Grade 151W 36V dc Switching Power Supply Chassis Mount HEP-150-36A

MEAN WELL HEP-150-36A is an industrial-grade switching power supply offering 151W power output at 36V dc. It is designed with a robust aluminium chassis and fully potted with heat-conducted silicone to provide excellent performance under harsh environmental conditions such as high humidity, dust, oil, and vibration. The unit operates efficiently between temperatures of -55°C and +70°C, ensuring stable power delivery in extreme industrial and outdoor applications.

Featuring a universal AC input range up to 305V AC and a maximum DC input voltage of 431V dc, this switching power supply supports a single output of 4.2A current. Its construction allows cooling via free air convection without the need for fans, reducing maintenance while improving reliability.

The HEP-150-36A has undergone rigorous testing including 10G vibration endurance, and offers 6kV surge immunity to protect sensitive equipment from voltage spikes. Its chassis mount design measures 228mm in length, 68mm in width, and 38.8mm in depth, weighing approximately 1.2kg.

This unit complies with international standards such as TUV BS ENEN 6681, UL 6681, ASNZS 668.1, as well as EMC standards EN60950-1, EN55022 Class B, and others, ensuring safety and electromagnetic compatibility.

Typical applications include outdoor telecom equipment, external signage displays, mining and petroleum installations, and other industrial environments requiring a durable and reliable power solution.

Constructed with durable aluminium casing fully potted with heat-conducted silicone. Capable of operating under extreme temperatures from -55°C to +70°C. High efficiency of up to 93.5% enables reliable performance. Equipped with universal AC input and supports full range up to 305 V AC.

Designed to withstand 10G vibration tests for enhanced durability. Cooling achieved through free air convection design without fans. Offers 6 kV surge immunity level for protection against voltage spikes. Suitable for demanding environments like outdoor telecom, mining, petroleum, and signage installations.

Chassis mount type with a compact size (228mm length, 68mm width, 38.8mm depth). Certified to standards including TUV BS ENEN 6681, UL 6681, ASNZS 668.1, and EAC TP TC 004. Explore EnvMart's extensive range of Switching Power Supplies for industrial and commercial applications to find models suitable for your electrical design needs.
