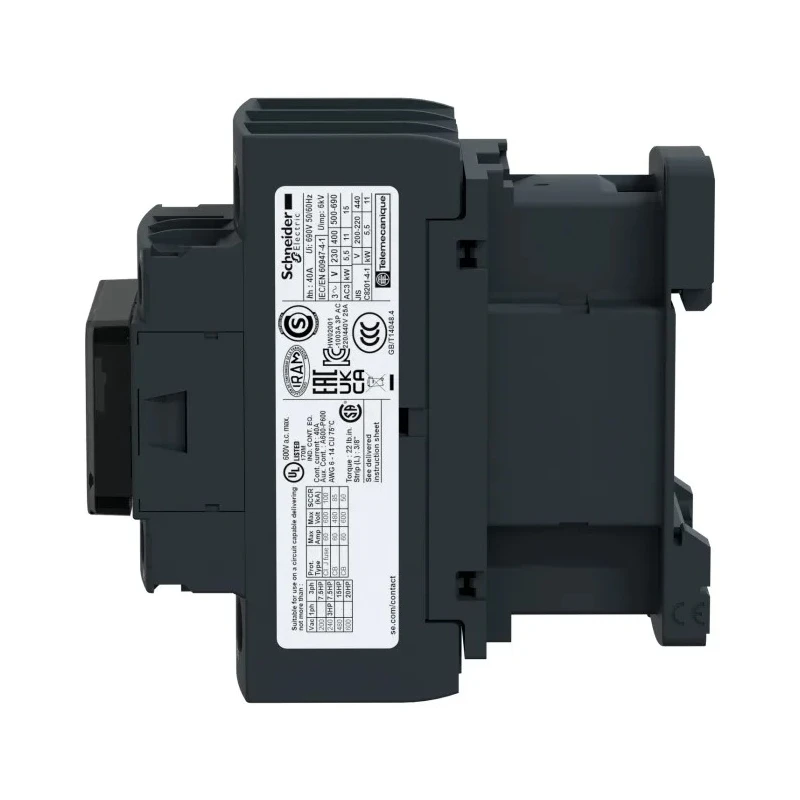

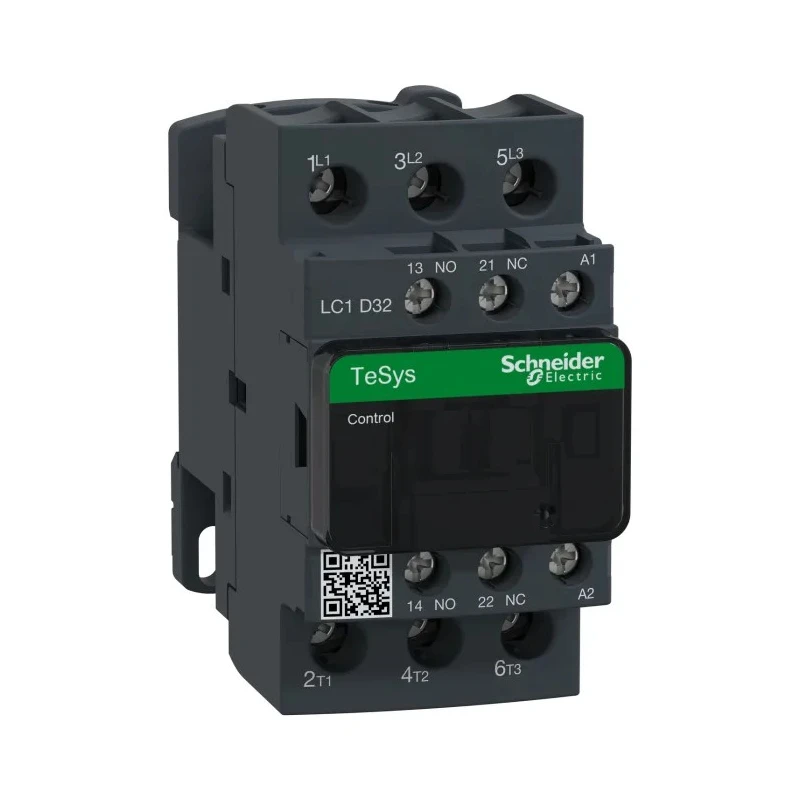

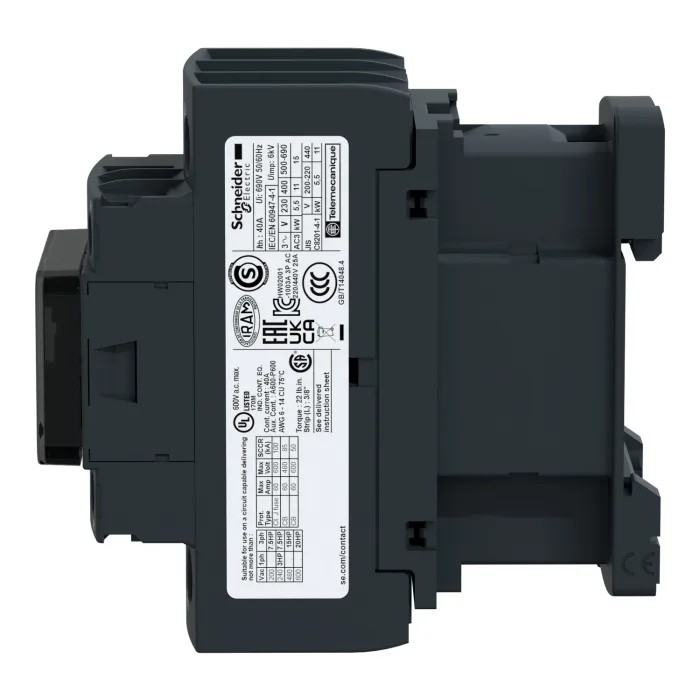

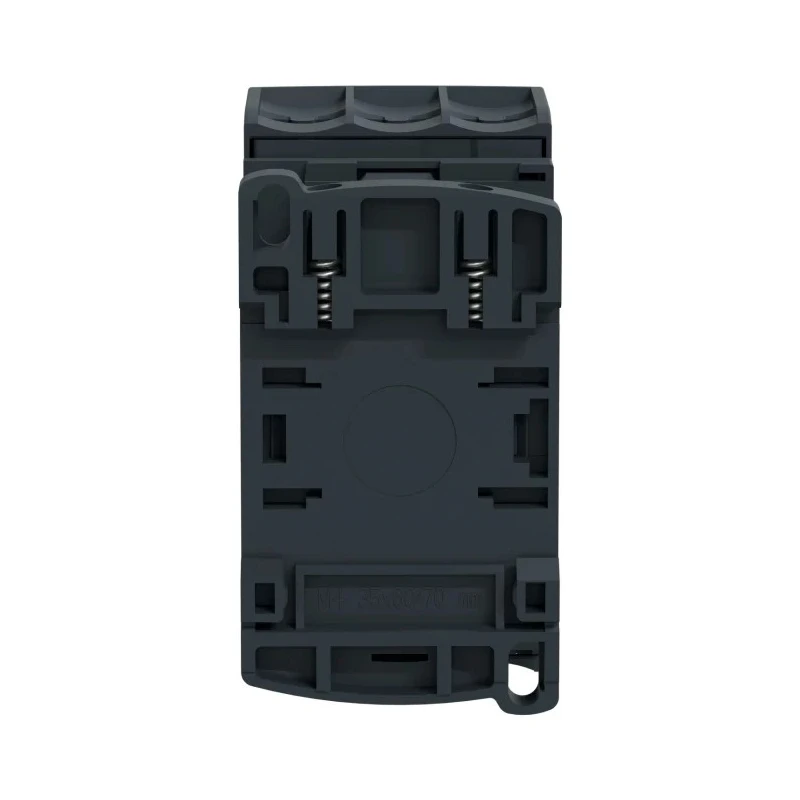

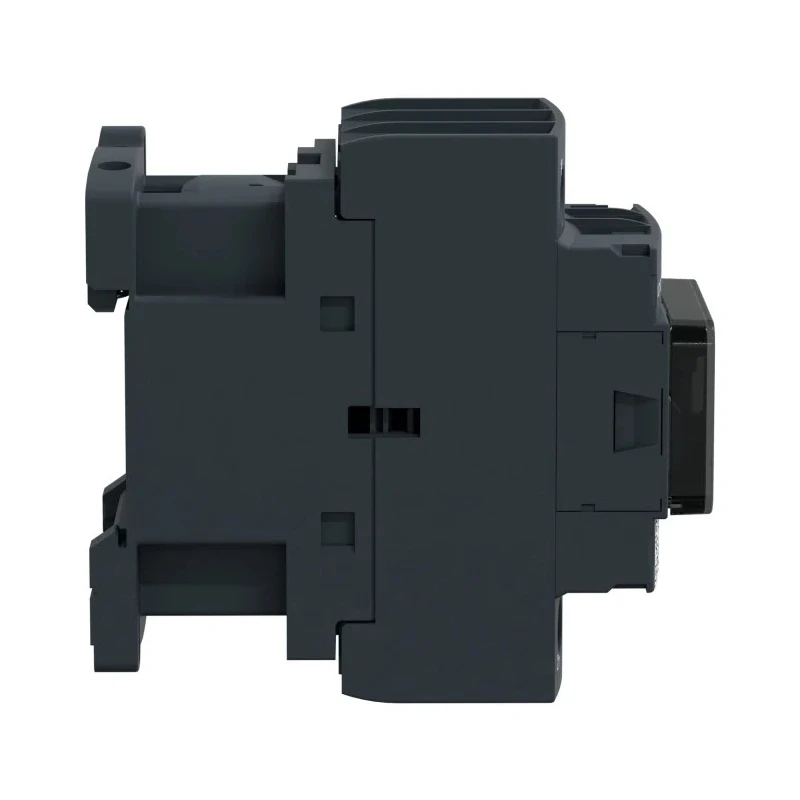

Schneider Electric 3-Pole Contactor , 110V AC Coil, 32 A, 15 kW Power Rating, DIN Rail Mount LC1D

Schneider Electric LC1D32F7 3-Pole Contactor is engineered for industrial motor control and resistive load switching with a coil voltage of 110V AC and a power rating of 15 kW. This contactor features a robust contact current rating of 32 A and is suitable for use with contact voltages up to 690V AC.

The compact design with dimensions of 85mm length, 45mm width, and 92mm depth fits conveniently on standard DIN Rail mounts, offering easy installation and space-saving in control panels. The contactor includes three normally open (NO) contacts along with two auxiliary contacts configured as 1 NO and 1 NC, providing flexible circuit control options.

Designed to operate in a wide temperature range from -40°C to +60°C, it ensures reliability in diverse industrial environments. Screw clamp terminals support both flexible and solid cables ranging from 1 mm² to 10 mm², enhancing installation versatility. Compliance with international standards such as UL, RoHS, IEC, EAC, CSA, and CCC guarantees safety and quality.

This product supports applications in industrial automation for motor management, HVAC system controls, and other machinery requiring reliable contact switching for motor and resistive loads.

The contactor’s mechanical interlocks and auxiliary contact configuration enhance system safety during operation, conforming to rigorous industry standards. Operates with 110V AC coil voltage ensuring compatibility with standard control circuits.

Features a durable 3-pole configuration with three normally open contacts. Maximum rated contact voltage is 690V AC for versatile industrial use. Includes two auxiliary contacts configured as 1 NO and 1 NC for enhanced control.

Compact dimensions of 85mm length, 45mm width, and 92mm depth allow for easy DIN Rail installation. Supports motor control and switching of resistive loads effectively and safely. Equipped with screw terminal connections accommodating 1 mm² to 10 mm² cables.

Operates reliably in ambient temperatures from -40°C up to +60°C. Meets multiple international standards including UL, RoHS, IEC, EAC, CSA, and CCC. Designed for disassembly promoting sustainability and easier maintenance.
