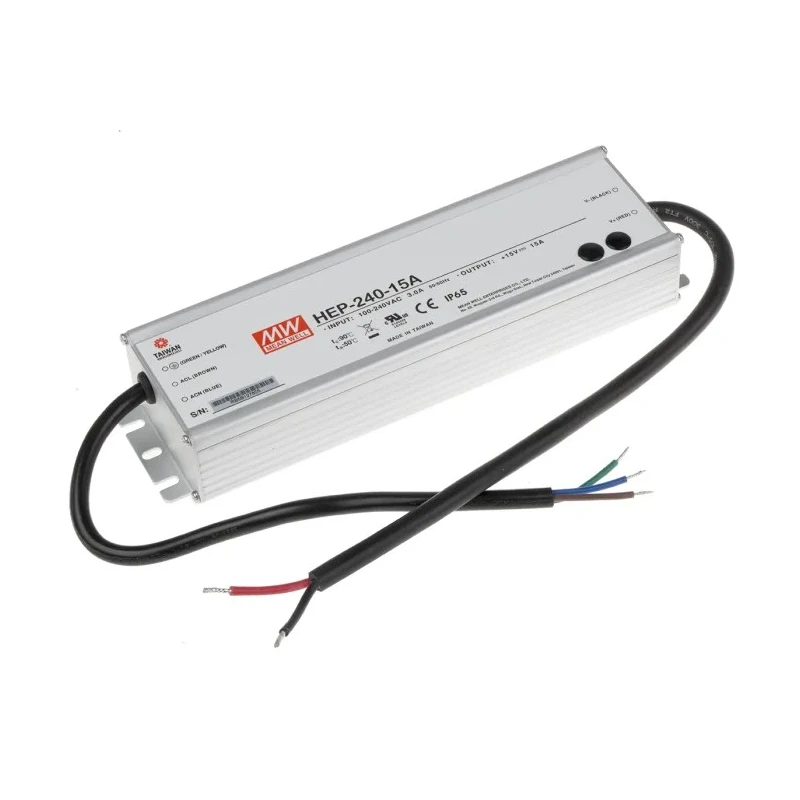

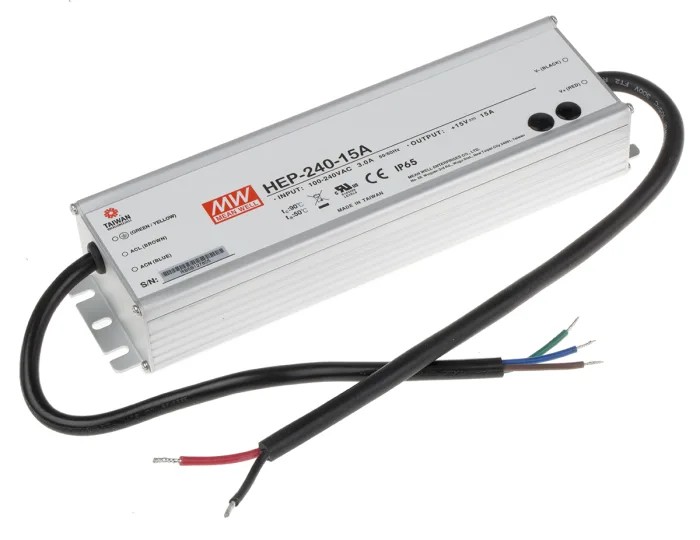

MEAN WELL Industrial-grade 225W 15V DC Switching Power Supply Chassis Mount HEP-240-15A

MEAN WELL HEP-240-15A is an industrial-grade switching power supply designed for rugged environments with high reliability. This chassis-mount power supply delivers a maximum output voltage of 15V DC with a power capacity of 225W and supports a single output channel delivering 15 amps. Its robust aluminium casing is fully potted with heat-conducted silicone, providing excellent resistance against dust, humidity, and high vibration conditions. The unit operates efficiently with up to 90% efficiency and maintains performance in temperature ranges from -55°C up to 70°C, cooled by free air convection.

The power supply supports a universal AC input range starting from 90V AC and can handle input voltages up to 305V AC or 431V DC, making it suitable for diverse electrical environments. It complies with standards such as UL 6681, TUV, EAC TP TC 004, and ASNZS 668.1, ensuring international quality and safety requirements are met. The product features a 6 kV surge immunity level, further guaranteeing durability in industrial applications.

This compact power supply measures 244.2 mm in length, 68 mm in width, and 38.8 mm in depth, with a gross weight of 1.3 kg, offering easy integration into control panels or machinery enclosures. Its design withstands rigorous 10G vibration tests, making it ideal for installation in outdoor telecom infrastructures, petrochemical plants, mining facilities, and external signage power needs.

Offers a maximum output voltage of 15V DC and 225W power rating. Features chassis mount type suitable for industrial installation. Operates reliably between -55°C and 70°C temperature range. Incorporates a durable aluminium chassis with heat-conducted silicone potting.

Efficient design offering 90% efficiency and withstands 10G vibration tests. Input voltage range supports universal AC input with a minimum of 90V AC. Provides protection with 6 KV surge immunity level for harsh conditions.

Compact dimensions: Length 244.2mm, Width 68mm, Depth 38.8mm for versatile mountings. Suitable for outdoor telecom, mining, petroleum installations, and external signage.

This product is an excellent choice for industrial power supply needs where durability and reliable performance in harsh environments are critical. Explore more power supply solutions and industrial components in the Electronics & Electricals category at EnvMart.
