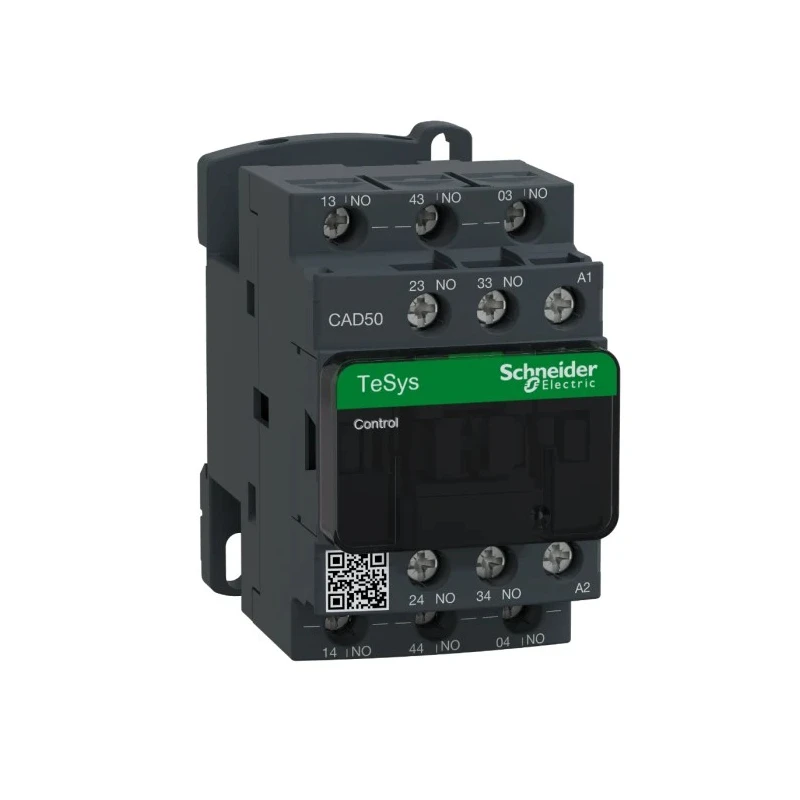

Schneider Electric CAD 5-Pole Contactor, 110V Coil Voltage, Control Relay, 10A Contact Current, Screw Clamp Terminals CAD50F7

Schneider Electric CAD50F7 is a 5-pole contactor from the CAD series designed as a reliable control relay with a coil voltage of 110V and a contact current rating of 10A. This model supports control circuits with voltage Uc of 110V and contact voltage up to 690V ac.

The compact device measures 77mm in length, 45mm in width, and 86mm in depth, making it suitable for space-conscious automation applications. It features screw clamp type terminals for robust electrical connections and accommodates mounting on DIN rails or plates, allowing versatile installation options in electrical panels.

Equipped with 5 normally open (NO) poles, it enables effective switching operations in various control and signalling systems. The contactor is engineered with Schneider Electric's patented EverLink technology, enabling rapid, secure wiring by connecting contactors and circuit breakers without extra accessories. This reduces heat loss, wiring time, and service interruptions.

This contactor operates reliably under a temperature range of -5°C to 60°C and meets international standards including CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, GB/T 14048.5, JIS C8201-5-1, and UL 60947-5-1. Its robust design includes a rated impulse withstand voltage of 6 kV, complying with IEC 60947 safety requirements and mechanical endurance under vibration and temperature cycling.

Suitable for industrial, commercial, and infrastructure applications, the CAD50F7 is used primarily to create motor starters, control relay circuits, and power control and signalling equipment. It supports both AC and DC control circuits, including versions with low power consumption and built-in suppression options.

5-pole design with 5 NO contacts for control applications. Robust mounting options: DIN rail and plate. Screw clamp terminals for secure electrical connections. Wide operating temperature range of -5 to 60°C. Compliant with multiple international standards ensuring quality and safety.

Incorporates EverLink technology for fast and reliable wiring. Rated impulse voltage withstand of 6 kV as per IEC standards. Control relay application suitable for motor starters and signaling control.

Set includes Schneider Electric CAD50F7 contactor unit. This device contributes to energy-efficient and sustainable electrical control solutions, fulfilling the requirements of modern automation systems.
