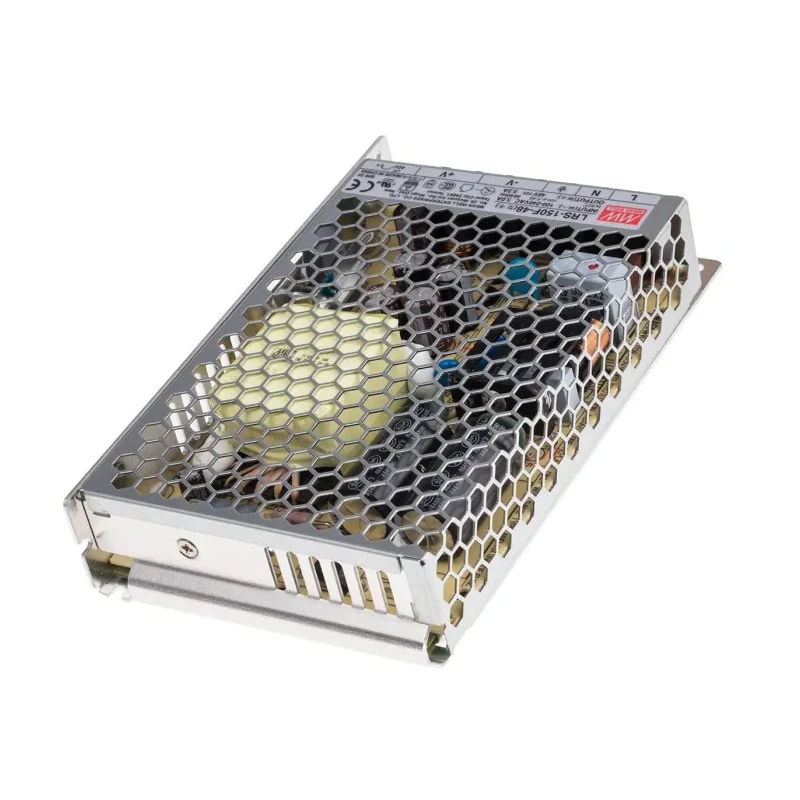

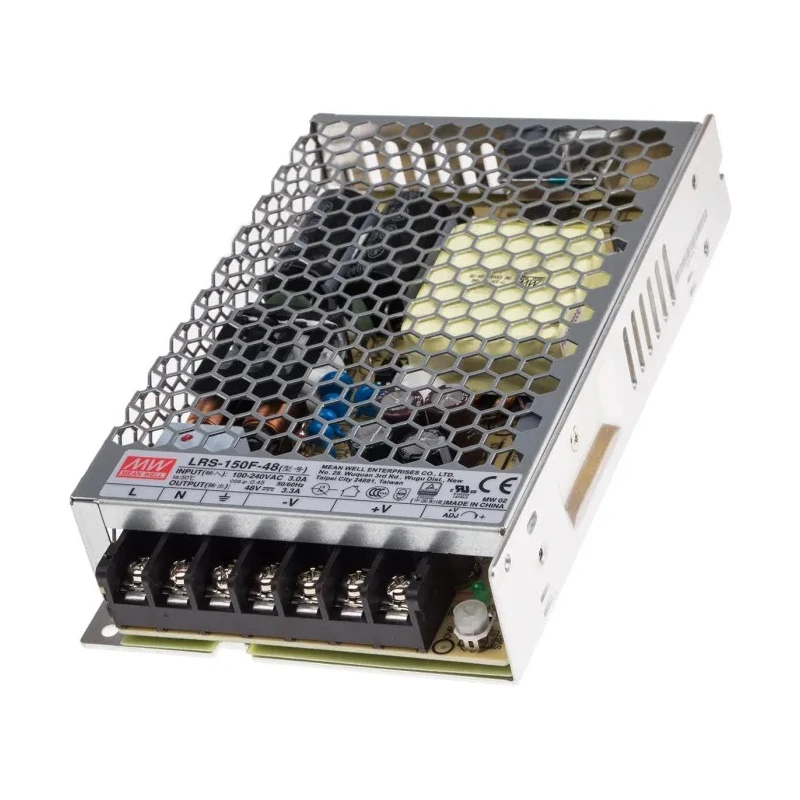

MEAN WELL LRS-150F-48 Switching Power Supply 48V dc 158W 3.3A Chassis Mount LRS-150F-48

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL LRS-150F-48 Switching Power Supply 48V dc 158W 3.3A Chassis Mount LRS-150F-48

Name: MEAN WELL LRS-150F-48 Switching Power Supply 48V dc 158W 3.3A Chassis Mount LRS-150F-48
Brand: MEAN WELL
SKU: 183394
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	158W
Efficiency	90%
Length	159mm
Model	LRS-150F-48
Depth	30mm
Gross Weight	480g
Width	97mm
Mount Type	Chassis
Series	LRS-150F
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	48V dc
SMPS Output Current	3.3A
Minimum Input Voltage	85V ac

Key Features

High efficiency of up to 90% reduces energy loss.
Supports universal AC input voltage with 85V to 264V ac range.
Operates reliably between -30°C to 70°C ambient temperature.
Compact chassis mount design measuring 159mm length, 97mm width, and 30mm depth.
Enclosed metal mesh housing ensures excellent heat dissipation through air convection.
Resistance to 5G vibration for improved durability in industrial environments.
Low no-load power consumption below 0.5W saves energy and cost.
Compliant with multiple international safety standards including UL 62368-1 and IEC 60950-1.

Product Description

MEAN WELL LRS-150F-48 is a high-performance switching power supply providing a stable 48V dc output with a maximum power rating of 158 watts and output current of 3.3 amperes. Designed with a chassis mounting type, it features a compact form factor of 159mm length, 97mm width, and 30mm depth.

This power supply supports a wide universal AC input range from 85V to 264V ac, and withstands surge voltage up to 300V ac for 5 seconds. It operates efficiently up to 90%, while maintaining a very low no-load power consumption of less than 0.5 watts. The LRS-150F-48 is engineered with robust metal meshing and convection cooling via air flow, enabling it to maintain performance in operating temperatures ranging from -30°C to 70°C and resist 5G vibration forces.

Compliance with international safety and quality standards such as UL 62368-1, IEC 60950-1, and various regional certifications assures its suitability for demanding industrial and commercial environments.

Typical applications include use in industrial automation systems, control machinery, mechanical and electrical equipment, and household appliances, where reliable and efficient power conversion is critical.

High efficiency of up to 90% reduces energy loss. Universal AC input voltage range for global compatibility. Compact chassis mount design fits constrained installation spaces. Robust metal mesh housing ensures effective heat dissipation.

Resistance to mechanical vibration improves durability. Low standby power consumption conserves energy. Wide operating temperature supports various environmental conditions. Multiple international safety approvals ensure compliance and reliability.

Single output delivers stable 48V dc power at 3.3A current capacity. Ideal for industrial, commercial, and home appliance power needs. Explore the Electronics & Electricals section on EnvMart for a wide range of power supplies and switching power solutions from trusted brands like MEAN WELL.
