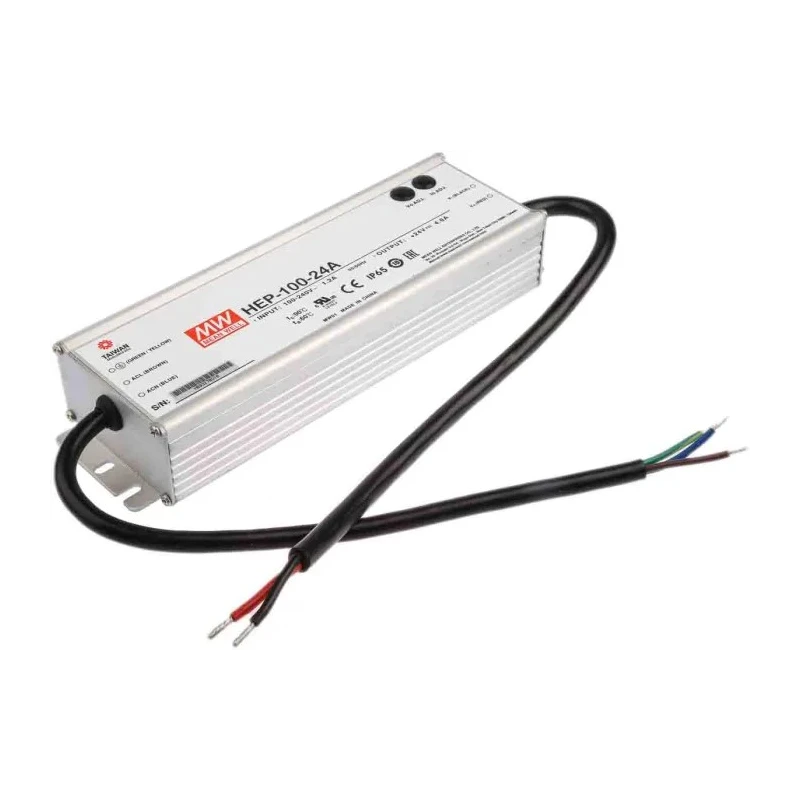

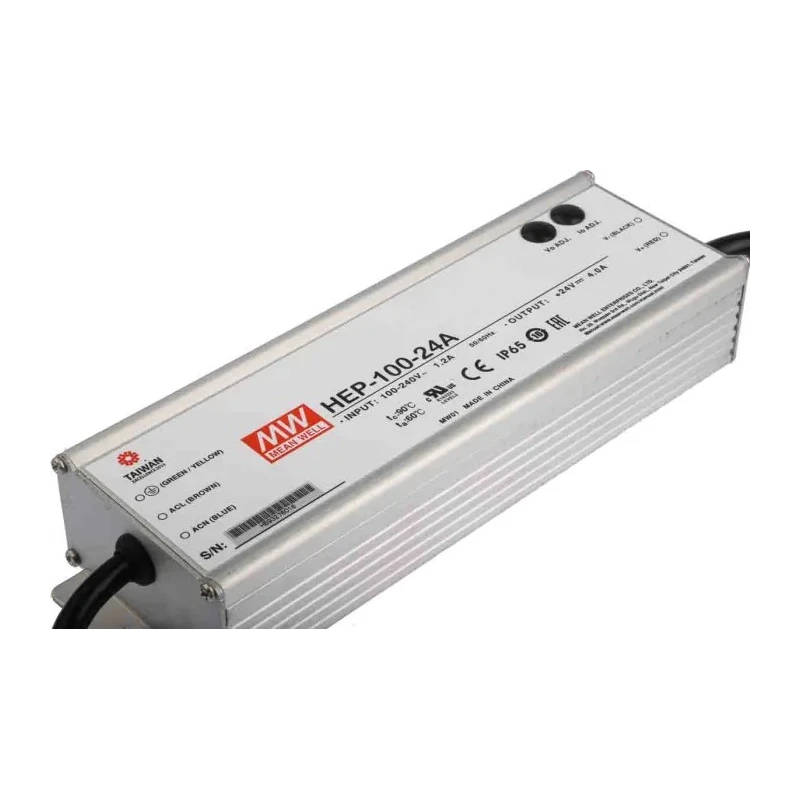

MEAN WELL 96W 24V dc Single Output Chassis Mount Switching Power Supply HEP-100-24A
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 96W |
| Efficiency | 93% |
| Length | 220mm |
| Model | HEP-100-24A |
| Depth | 38.8mm |
| Gross Weight | 1.1kg |
| Width | 68mm |
| Mount Type | Chassis |
| Series | HEP-100 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -55°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 431, 305V dc |
| Standards/Approvals | ASNZS 668.1, EAC TP TC 004, TUV BS ENEN 6681, UL 6681 |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 4A |
| Minimum Input Voltage | 90V ac |
Key Features
- Offers a universal input voltage range from 90V ac to 305V ac and 127V dc to 431V dc.
- Features a high efficiency of 93% and built-in active PFC function.
- Operates in temperature ranges from -55°C up to 70°C with free air convection cooling.
- Equipped with protections against short circuits, overloads, overvoltage, and over temperature.
- Constructed with an aluminium casing fully potted with heat-conducted silicone for durability.
- Compliance with multiple international standards including UL60950-1 and EN60950-1.
- Suitable for use in harsh environments with high humidity, dust, oil, and vibration resistance.
- Applications include outdoor telecommunication, mining, petroleum installations, signage, and billboards.
Product Description
MEAN WELL HEP-100-24A is a high-performance 96W switching power supply featuring a single 24V dc output with a current rating of 4A. Designed for chassis mounting, it supports universal input voltages ranging from 90V ac to 305V ac and 127V dc to 431V dc, making it highly adaptable for diverse power requirements.
The unit is engineered to withstand extreme environmental conditions such as high humidity, dusty and oily atmospheres, and intense vibration up to 10G. Its aluminium casing is fully potted with heat-conducted silicone to enhance thermal management and durability.
Cooling is achieved through free air convection without the need for a fan, enabling quieter operation and reduced maintenance. The power supply includes built-in protections against short circuit, overload, overvoltage, and over temperature for reliable and safe operation.
With an efficiency up to 93% and built-in active power factor correction, the HEP-100-24A supports energy-saving goals while maintaining consistent power delivery. It operates effectively within a temperature range of -55°C to 70°C and an altitude of up to 5000 meters.
Universal input voltage from 90V ac to 305V ac and 127V dc to 431V dc. High efficiency of 93% and active power factor correction. Fanless design with free air convection cooling. Robust aluminium casing fully potted with heat-conducted silicone.
Wide operating temperature range from -55°C to 70°C. Multiple safety protections: short circuit, overload, overvoltage, and over temperature. Complies with international safety and EMC standards including UL and EN certifications.
Certified for outdoor and industrial applications requiring IP65 / IP68 protection (optional). Ideal for telecommunications, mining, petroleum, signage, and other industrial installations.
Choose MEAN WELL HEP-100-24A for dependable and efficient switching power supply solutions across industrial and commercial applications. Explore more products in the Power Supplies category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 24V dc.
It has an efficiency rating of 93%.
It operates effectively within a temperature range of -55°C to 70°C.
This model is designed for chassis mounting.
The gross weight of this power supply is 1.1 kg.
It includes protections against short circuits, overloads, overvoltage, and over temperature.
The output current rating for this model is 4A.
The dimensions are 220mm in length, 68mm in width, and 38.8mm in depth.
It is designed to withstand high humidity, dust, oil, and vibration up to 10G.
This power supply complies with multiple international standards including UL60950-1 and EN60950-1.
It is suitable for applications in outdoor telecommunication, mining, petroleum installations, signage, and billboards.
