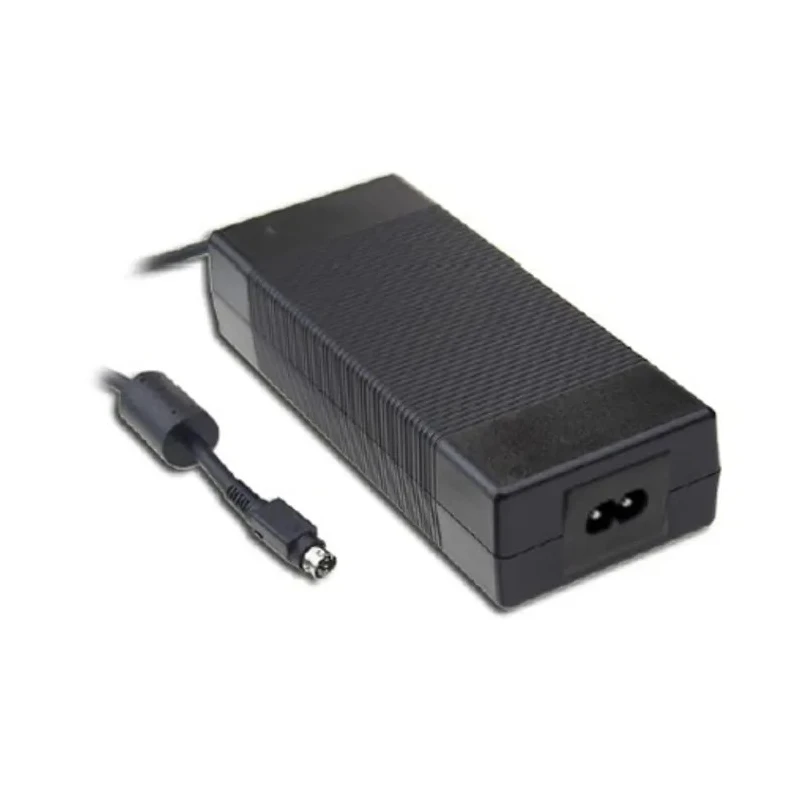

MEAN WELL AC/DC Adapter 264V AC Input 13.4 A Maximum Output Current 15 V DC Output GSM220B15-R7B
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM220B15-R7B |
| Cable Length | 1000mm |
| Overall Length | 210mm |
| Series | GSM220B |
| Overall Width | 72mm |
| Maximum Operating Temperature | 70°C |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 13.4A |
| Standards/Approvals | CE, IEC 60950-1, UL 60950-1 |
| Minimum Input Voltage | 80V ac |
| Overall Depth | 35mm |
| Minimum Output Voltage | 15V dc |
| Input Connector Type | IEC 320-C8 |
| Better World Verification | UL Energy Verified |
Key Features
- Equipped with a 3-pole IEC 320-C8 AC inlet for wide voltage input range.
- Medical safety approved with Class 2 power and suitable for BF applications.
- High efficiency rating up to 94.5% with low no-load consumption below 0.15 W.
- Fully enclosed flame retardant casing with multiple industry standard protections.
- Fanless design supports a wide operating temperature range from -30°C to +70°C.
- Provides LED indication for power status to enhance user monitoring.
- Complies with certifications including CE, IEC 60950-1, and UL 60950-1.
- Integral active Power Factor Correction (PFC) function improves energy efficiency.
Product Description
MEAN WELL GSM220B15-R7B AC/DC Adapter is a desktop style medical-grade power supply delivering 220W with high reliability. It accepts a wide AC input voltage range from 85 to 264V AC through its IEC 320-C8 AC inlet and provides a stable 15V DC output at a maximum current of 13.4A. This adapter supports critical applications in medical and industrial sectors such as mobile clinical workspaces, breath machines, medical computer monitors, oral irrigators, and portable hemodialysis machines.
The unit features a Class 2 power design without an earth pin and is medically safety approved, making it suitable for BF applications. It achieves a high energy efficiency rating of up to 94.5% coupled with a very low no-load power consumption below 0.15 W, aligning with environmental sustainability goals. The fully enclosed casing is constructed with 94V-0 flame retardant materials to ensure safety.
Additional protections include short circuit, overload, over voltage, and over temperature safeguards. A fanless cooling design enables silent operation and supports operation in ambient temperatures from -30°C to +70°C. LED indicators provide visible feedback on power status.
Certified to CE, IEC 60950-1, and UL 60950-1 standards with a UL Energy Verified Better World label, the GSM220B15-R7B adapter is tested with 100% full load burn-in before shipment.
Wide input voltage range from 80 to 264V AC with IEC320-C8 inlet. Maximum output current of 13.4A at 15V DC nominal output. Operating temperature range -30°C to +70°C with fanless design. High efficiency up to 94.5% and low no-load consumption below 0.15 W.
Compact dimensions 210mm length, 72mm width, 35mm depth. Medical-grade safety compliance and suitable for BF applications. Integral active PFC and multiple industry standard protections. LED power status indicator for easy monitoring.
This AC/DC adapter is ideal for industrial, medical, laboratory, and electronic power supply use cases demanding reliable, efficient desktop power solutions. Explore more in EnvMart’s Power Supplies & Transformers category for matching products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 13.4A at a nominal output of 15V DC.
It accepts a wide AC input voltage range from 80V to 264V AC.
The adapter has dimensions of 210mm in length, 72mm in width, and 35mm in depth.
It complies with CE, IEC 60950-1, and UL 60950-1 standards.
The operating temperature range is from -30°C to +70°C.
It uses an IEC 320-C8 input connector type.
Yes, it includes protections against short circuit, overload, over voltage, and over temperature.
It has a high efficiency rating of up to 94.5% with low no-load consumption below 0.15W.
The cable length is 1000mm.
Yes, it is medically safety approved and suitable for BF applications.
The GSM220B15-R7B is manufactured in India.
The nominal output voltage is 15V DC.
