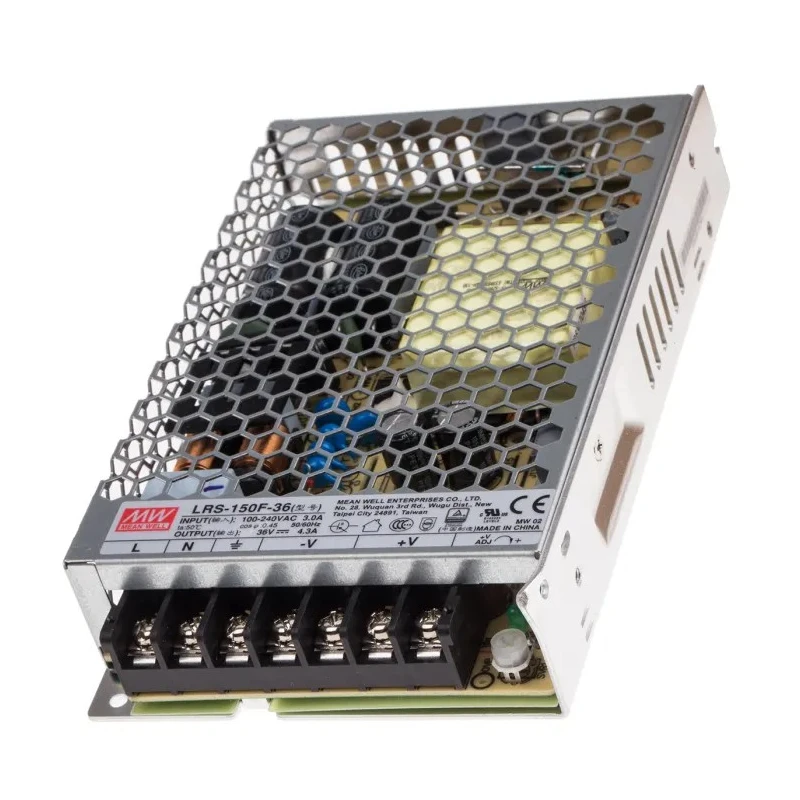

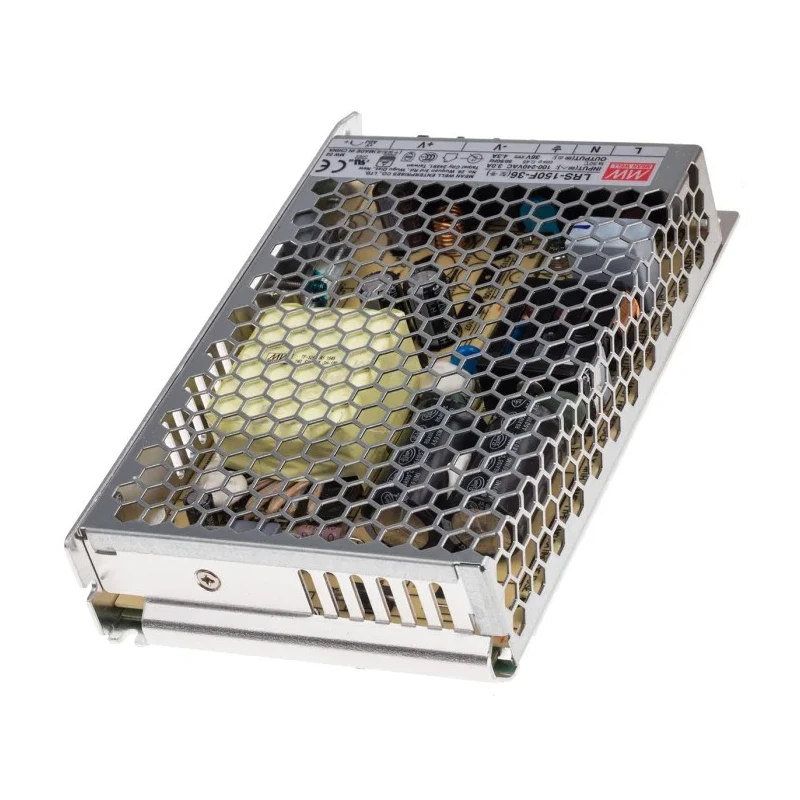

MEAN WELL LRS-150F-36 Switching Power Supply 36V DC 154.8W 4.3A Chassis Mount LRS-150F-36
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 154.8W |
| Efficiency | 89% |
| Length | 159mm |
| Model | LRS-150F-36 |
| Depth | 30mm |
| Gross Weight | 480g |
| Width | 97mm |
| Mount Type | Chassis |
| Series | LRS-150F |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 36V dc |
| SMPS Output Current | 4.3A |
| Minimum Input Voltage | 85V ac |
Key Features
- Features universal AC input with full range support.
- Provides high efficiency up to 89% to reduce energy loss.
- Designed for industrial automation and control machinery applications.
- Includes 5G vibration resistance and free air convection cooling.
- Operates within temperature range of -30°C to 70°C.
- Supports input voltage from 85V AC minimum to 370V/264V DC maximum.
- Complies with multiple safety standards including UL, TUV, CSA, and CE.
- Single output unit providing 4.3A current capacity.
Product Description
MEAN WELL LRS-150F-36 switching power supply is a single-output, 150 W enclosed chassis mount unit designed for robust industrial and commercial use. It outputs a stable 36 V DC voltage at 4.3 A current with a power rating of 154.8 W. This power supply supports a wide operating temperature range from -30°C to 70°C, making it suitable for harsh environments.
The product features universal AC input with full range capability from 85V AC minimum to 370V DC maximum and a protection surge input of 300 V AC lasting 5 seconds. It ensures efficient energy use with an 89% efficiency rating and low standby power consumption below 0.5 W. Mechanical design includes metallic meshing and air convection for optimal heat dissipation.
The LRS-150 series incorporates 5G vibration resistance ensuring operational reliability under mechanical stress and is cooled by free air convection, eliminating the need for fans and reducing maintenance.
Typical applications include industrial automation, control machinery, mechanical and electrical equipment, and household appliances requiring stable and reliable power supplies. Universal AC input and full range voltage support.
High efficiency rated at 89% for energy saving. Rugged design with 5G vibration resistance. Compact chassis mounting dimensions. Meets international safety and EMC standards. Low no load power consumption for reduced costs.
Free air convection cooling without fans. Suitable for industrial, commercial, and household applications.
This product is certified with UL 62368-1, TUV EN 62368-1, IS 13252 (Part 1)/IEC 60950-1, EAC TP TC 00, CSA C22.2 No. 62368-1, CCCGB4943.1, BSMI CNS143361, and AS/NZS62368.1 standards, ensuring safety and reliability.
Choose MEAN WELL LRS-150F-36 for durable, efficient, and versatile switching power supply solutions. Browse more products in Switching Power Supplies for comprehensive industrial power management solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an efficiency rating of 89%, which helps reduce energy loss.
The dimensions are 159mm in length, 97mm in width, and 30mm in depth.
It is a single-output unit providing 4.3A current capacity.
This unit is designed for chassis mounting.
Typical applications include industrial automation, control machinery, and household appliances requiring stable power.
It uses free air convection for cooling, eliminating the need for fans.
The minimum input voltage is 85V AC.
