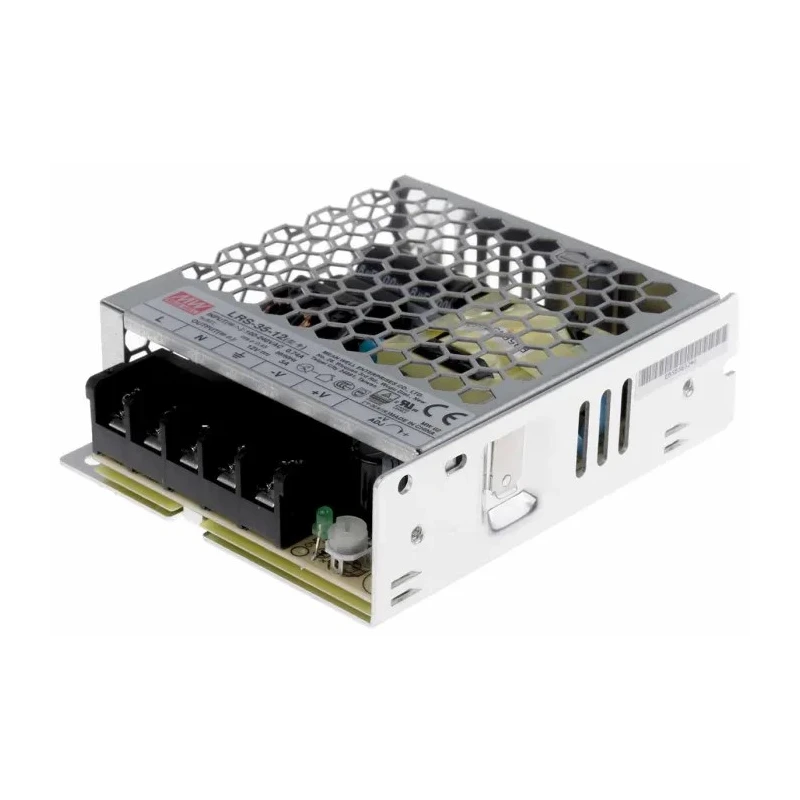

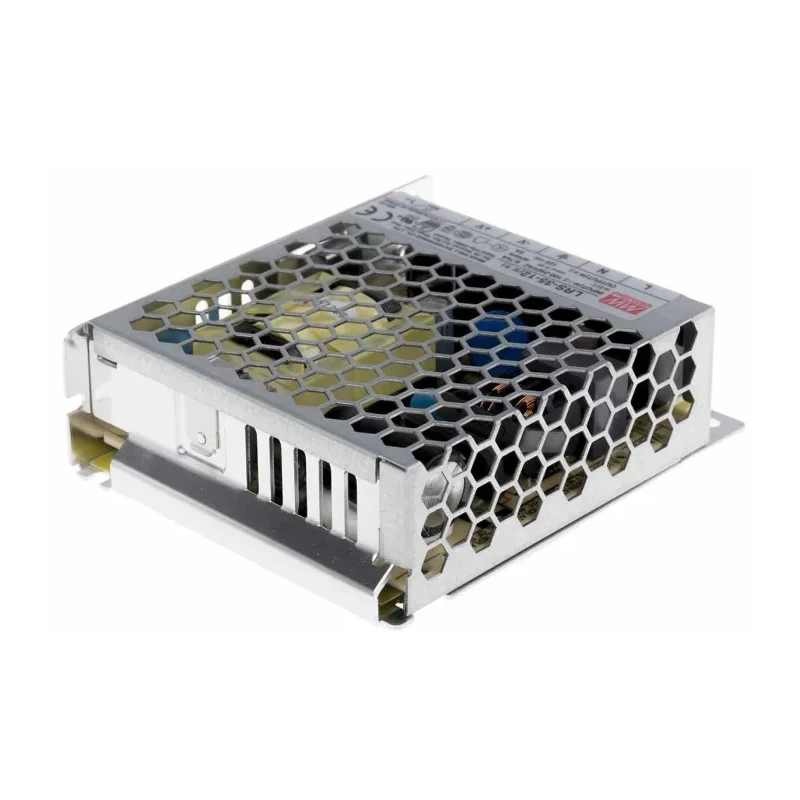

MEAN WELL Switching Power Supply 12V DC 36W Universal AC Input Chassis Mount LRS-35-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 36W |
| Efficiency | 86% |
| Length | 99mm |
| Model | LRS-35-12 |
| Depth | 30mm |
| Gross Weight | 230g |
| Width | 82mm |
| Mount Type | Chassis |
| Series | LRS-35 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 373, 264V dc |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 3A |
| Minimum Input Voltage | 85V ac |
Key Features
- Designed for universal AC input with full range operation.
- Provides a maximum output power of 36 watts.
- Single 12V DC output with 3A current capacity.
- Compact chassis mount form factor for easy installation.
- Wide operating temperature range from -30°C to 70°C.
- High efficiency up to 86% ensuring low power loss.
- Built with 5G vibration resistance for improved durability.
- Supports free air convection for silent cooling.
Product Description
MEAN WELL LRS-35-12 Switching Power Supply is a 36W enclosed single-output power supply designed for reliable operation in industrial and household applications. It delivers a stable 12V DC output with a current rating of 3A, suitable for various control machinery and electrical equipment.
This unit features a universal AC input voltage range, supporting 85V AC minimum and surge tolerance up to 300V AC for five seconds, making it adaptable to diverse power conditions. The chassis mount design with a compact 99mm length, 82mm width, and 30mm depth allows for flexible installation in constrained spaces.
Constructed with metal mesh casing and supported by air convection cooling, it ensures efficient heat dissipation without the need for fans, providing silent operation. The power supply design includes 5G level vibration resistance, enhancing durability in demanding environments.
Its high efficiency of up to 86% minimizes energy losses, improving overall system reliability. The product complies with multiple international safety standards such as UL 62368-1, TUV EN 62368-1, CCC GB 4943.1, CSA C22.2 No. 62368-1, and others, guaranteeing compliance and safety in industrial and consumer contexts.
Designed for universal AC input with full range operation. Provides a maximum output power of 36 watts. Single 12V DC output with 3A current capacity. Compact chassis mount form factor for easy installation. Wide operating temperature range from -30°C to 70°C.
High efficiency up to 86% ensuring low power loss. Built with 5G vibration resistance for improved durability. Supports free air convection for silent cooling. Complies with multiple international safety standards. Ideal for industrial automation, control machinery, and household appliances.
This switching power supply is well-suited for use in industrial automation, mechanical and electrical equipment, and household appliances requiring a reliable 12V DC power source. Its robust design and certification coverage support deployment in demanding environments.
Explore more Switching Power Supplies and power distribution solutions on EnvMart to find the appropriate components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 36 watts.
It supports a universal AC input voltage range from 85V AC to a maximum of 264V AC.
It provides a stable output voltage of 12V DC with a current capacity of 3A.
The dimensions of this model are 99mm in length, 82mm in width, and 30mm in depth.
The operating temperature range is from -30°C to 70°C.
It has an efficiency rating of up to 86%, which helps minimize energy losses.
It supports free air convection for silent cooling, eliminating the need for fans.
This unit features a chassis mount design for easy installation.
It complies with several international safety standards including UL 62368-1 and TUV EN 62368-1.
The gross weight of this model is 230 grams.
It is suitable for industrial automation, control machinery, and household appliances requiring a reliable 12V DC power source.
It is constructed with a metal mesh casing, enhancing durability and protection.
