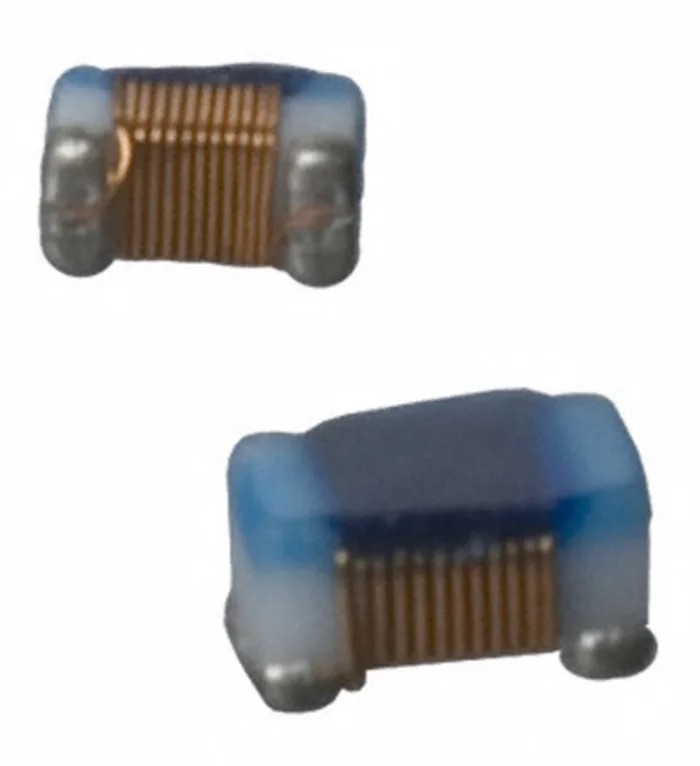

Murata Wirewound Surface Mount Inductor 3.3nH ±0.1 nH 2A Idc Q30 Non-Magnetic Core 1005 LQW15AN3N3B80D

Murata LQW15AN3N3B80D wirewound Surface Mount Inductor is engineered for high performance in electronics applications requiring precision inductance with low resistance and high quality factor. Featuring a non-magnetic core, this inductor offers stable inductance of 3.3 nanohenries with a tight tolerance of plus or minus 0.1 nH, making it suitable for sensitive RF and antenna circuits.

This inductor supports a maximum DC current of 2 amperes and operates reliably across a broad temperature range from negative 55 degrees Celsius to 125 degrees Celsius. It comes in a standard 1005 surface mount package measuring 1 mm in length, 0.6 mm in depth, and 0.5 mm in height, offering space-saving integration on circuit boards. The wirewound construction contributes to excellent attenuation characteristics, making it ideal for matching applications in antenna systems and choke circuits where maintaining signal quality is critical.

Key technical features include low DC resistance of 30 milliohms and a high self-resonant frequency reaching up to 14 GHz, supporting effective operation in high-frequency environments. The solder termination style ensures reliable soldering and mechanical robustness. Fully RoHS compliant, the LQW15AN3N3B80D complies with environmental standards.

These characteristics make the Murata LQW series inductors suitable for various industrial and commercial electronic applications such as RF communication, signal filtering, and power supply circuits.

Non-magnetic core supports stable inductance. High quality factor (Q) minimizes energy losses. Compact 1005 package size for efficient PCB use. Wide operating temperature range from -55°C to 125°C. Low DC resistance enhances circuit efficiency.

High maximum DC current capacity of 2 A. Wirewound construction for durability and stability. High self-resonant frequency of 14 GHz optimizes high-frequency performance. RoHS certified ensuring compliance with environmental directives.

Solder termination style simplifies PCB assembly. Explore more high-quality inductors in the Electronics & Electricals category on EnvMart for your industrial and commercial project needs.
