| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN36NG00D |
| Depth | 0.5mm |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Core |
| Inductance | 0.036μH |
| Standards/Approvals | RoHS |
| Package/Case | 1005 |
| Maximum DC Current | 260mA |
| Maximum DC Resistance | 630mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Surface Mount |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

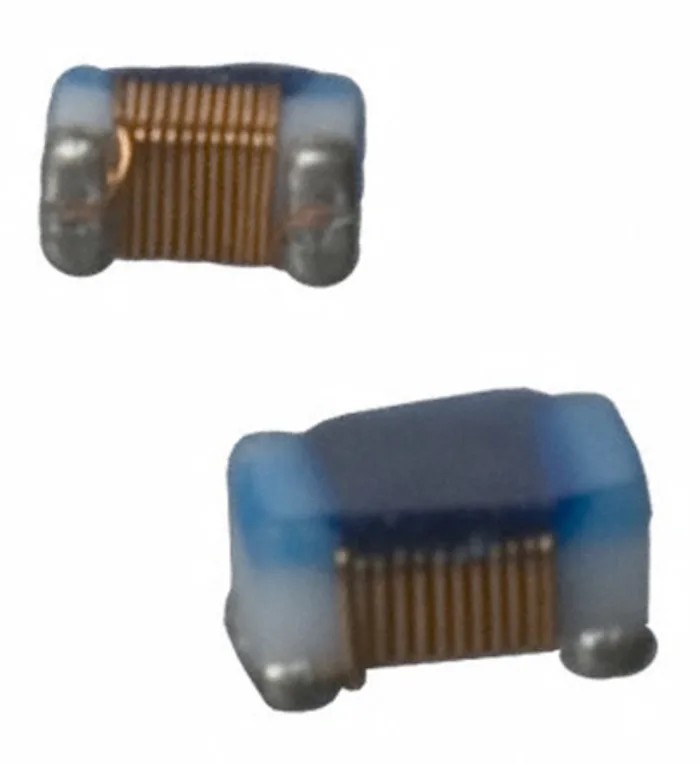

Murata LQW15AN36NG00D is a precision 1005 shielded wirewound surface mount inductor featuring a non-magnetic core, with an inductance value of 0.036 μH ±2% tolerance and a maximum DC current of 260 mA. Its compact 1 mm x 0.5 mm x 0.5 mm dimensions make it ideal for high-density PCB applications where space is a premium.
This inductor is engineered for applications requiring low DC resistance (630 mΩ) and a high quality factor (Q:25), which provides excellent attenuation characteristics and minimal energy losses. It is optimized for RF signal circuits including antenna matching to maintain sensitive reception and transmission capabilities.
The LQW series inductors operate over a wide temperature range from -55°C to 125°C, ensuring consistent performance in automotive, industrial, and commercial electronics environments. Its shielded design and non-magnetic core reduce electromagnetic interference, enabling stable circuit operation.
The device is surface mount compatible with reliable solder termination style, supporting automated PCB assembly. It complies with the RoHS directive, assuring compliance to environmental regulations.
Typical uses include choke circuits where high current levels flow, RF circuits requiring high Q inductors, and antenna impedance matching for enhanced signal quality. The wirewound construction provides robustness and durability to meet demanding industrial standards.
Compact 1005 package for surface mount technology. Shielded with non-magnetic core to minimize interference. Low DC resistance enables efficient current conduction. High quality factor (Q:25) for excellent performance in RF applications.
Wide operating temperature range (-55°C to 125°C) for diverse environments. RoHS compliant for environmental safety. Wirewound construction ensures mechanical durability. Ideal for choke circuits and antenna impedance matching.
