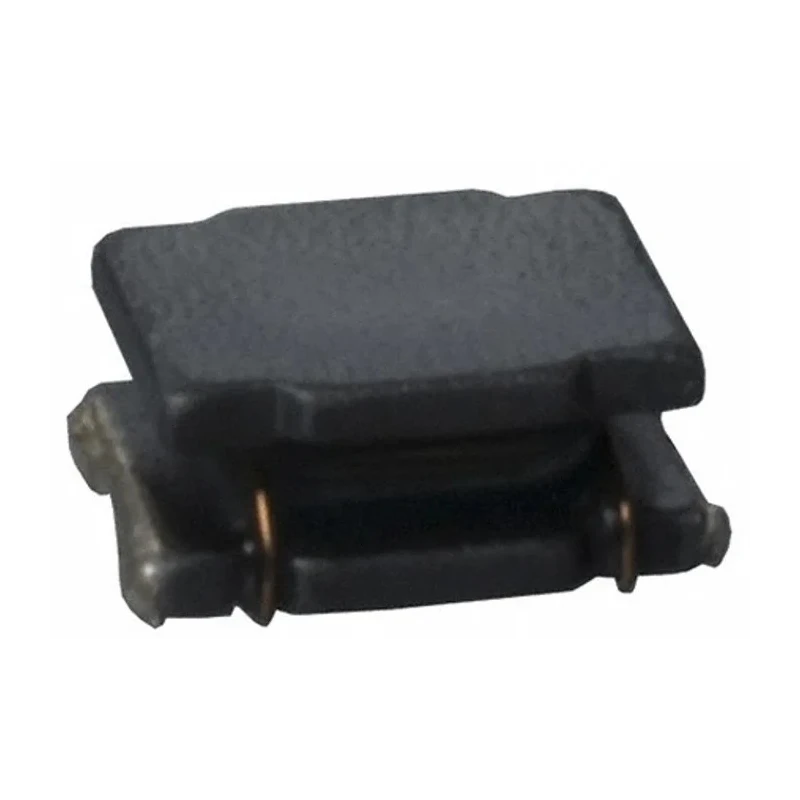

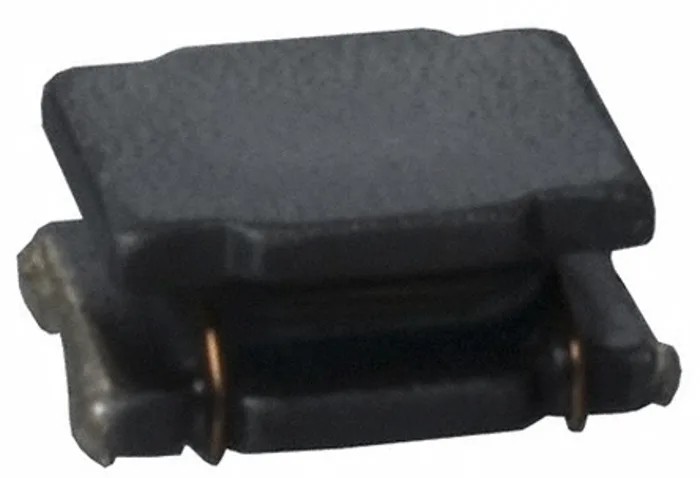

Murata Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±30% 1.3 A IDC 3225 LQH32PN6R8NNCL
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.55mm |
| Length | 3.2mm |
| Model | LQH32PN6R8NNCL |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 1.3A |
| Maximum DC Resistance | 220mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite core for enhanced magnetic performance.
- Inductance tolerance of ±30% suitable for various circuit requirements.
- Constructed with wirewound inductor technology for high inductance levels.
- Compact 3225 package size with dimensions 3.2mm x 2.5mm x 1.55mm.
- Surface mount termination style ensures compatibility with automated PCB assembly.
- Embossed tape packaging for efficient production use.
- Operates reliably within temperatures from -40°C to 125°C.
- Maximum DC resistance of 220 milliohms to minimize power losses.
Product Description
Murata LQH32PN6R8NNCL is a shielded wirewound surface mount inductor featuring a ferrite core, delivering an inductance of 6.8 μH with a tolerance of ±30%. Rated for a maximum DC current of 1.3 A, this inductor is suited for power supply booster circuits and other electronic applications requiring stable inductance and current handling.
The compact 3225 package dimensions (3.2mm length, 2.5mm depth, and 1.55mm height) make it ideal for dense PCB layouts in devices such as digital cameras, mobile phones, TVs, and game machines. Its wirewound construction combined with ferrite core material ensures excellent magnetic properties, contributing to low interference and high efficiency.
Surface mount termination style facilitates automated assembly processes and embossed tape packaging allows for smooth material handling in production lines. The component is moulded for mechanical strength and can operate efficiently within a wide temperature range from -40°C to 125°C. A maximum DC resistance of 220 milliohms helps minimize power dissipation in circuits.
This inductor complies with RoHS regulations, ensuring environmental safety. It is manufactured in Japan, reflecting high quality standards and reliability for industrial and commercial electronics applications.
Features a ferrite core for enhanced magnetic performance. Inductance tolerance of ±30% suitable for various circuit requirements. Constructed with wirewound inductor technology for high inductance levels. Compact 3225 package size with dimensions 3.2mm x 2.5mm x 1.55mm.
Surface mount termination style ensures compatibility with automated PCB assembly. Embossed tape packaging for efficient production use. Operates reliably within temperatures from -40°C to 125°C. Maximum DC resistance of 220 milliohms to minimize power losses.
RoHS compliant fulfilling environmental and safety standards. Moulded construction provides mechanical strength and durability.
Ideal for use in digital cameras, mobile phones, TVs, and gaming machines, this Murata LQH32PN6R8NNCL inductor supports reliable electronic circuit performance in consumer and industrial electronics. Explore similar quality Surface Mount Inductors in the Electronics Components category on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 6.8 μH with a tolerance of ±30%.
This inductor has a maximum DC current rating of 1.3 A.
The dimensions of the 3225 package are 3.2 mm in length, 2.5 mm in depth, and 1.55 mm in height.
It operates reliably within a temperature range from -40°C to 125°C.
The inductor features a ferrite core, which enhances its magnetic performance.
The maximum DC resistance is 220 milliohms, which helps minimize power losses.
This model uses a surface mount termination style, ensuring compatibility with automated PCB assembly.
It is packaged in embossed tape, which facilitates efficient production use.
Yes, this inductor complies with RoHS regulations, ensuring environmental safety.
The maximum self-resonant frequency is 40 MHz.
It is suitable for applications such as power supply booster circuits and is commonly used in digital cameras, mobile phones, TVs, and gaming machines.
This inductor is manufactured in Japan, reflecting high quality standards.
