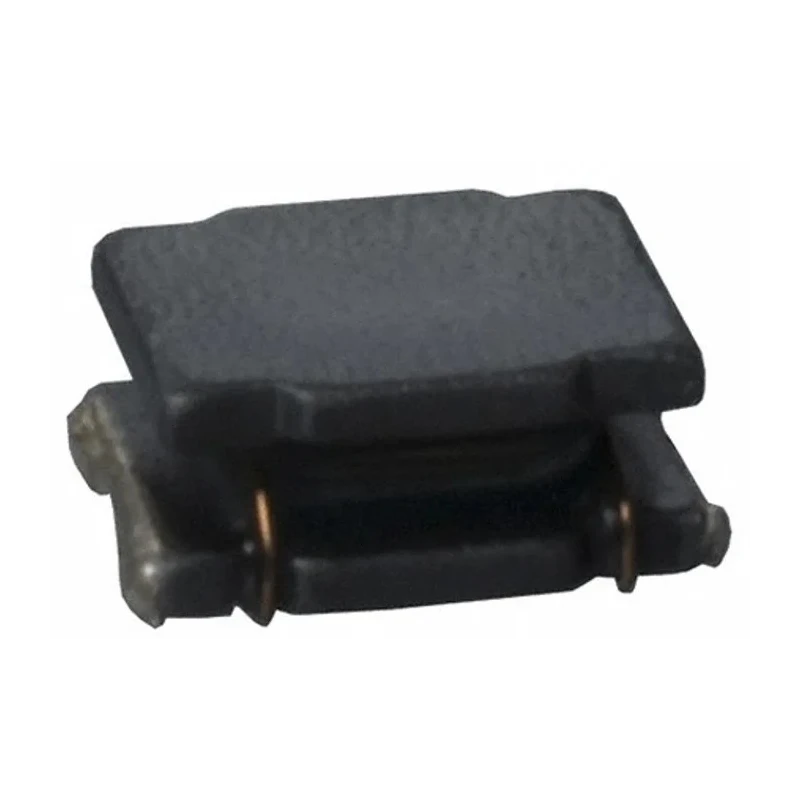

Murata 5050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22μH ±20 % 1.4 A Idc LQH5BPN220MT0L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 5mm |
| Model | LQH5BPN220MT0L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 1.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 259mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 15MHz |
| Inductor Construction | Wirewound |
Key Features
- This surface mount inductor uses a wirewound construction for high inductance stability.
- Shielded design reduces electromagnetic interference and improves performance.
- Ferrite core material enhances magnetic properties and frequency response.
- Operating temperature ranges from -40°C to 125°C for reliable operation.
- Compact 5050 package with dimensions of 5mm length, 5mm depth, and 2mm height suits space-constrained PCBs.
- Maximum DC resistance is 259 milliohms, ensuring low power loss in circuits.
- Termination style is solder, compatible with standard surface mount assembly.
- RoHS compliant construction ensures environmental and safety standards are met.
Product Description
Murata LQH5BPN220MT0L is a 5050 series shielded wirewound surface mount inductor featuring a ferrite core, designed to provide an inductance of 22μH with a tolerance of ±20 % and support a maximum DC current of 1.4 A. Its robust wirewound construction uses copper wire coiled around the ferrite core, coated with resin to enhance mechanical strength and durability.
This inductor's shielded design significantly reduces electromagnetic interference, making it ideal for sensitive electronic applications requiring noise suppression. It operates reliably in industrial and commercial electronics within a broad temperature range from -40°C to 125°C.
The compact surface mount 5050 package measures 5mm x 5mm x 2mm (LxDxH), enabling efficient use of PCB space in high-density circuit boards. Its low maximum DC resistance of 259 milliohms contributes to minimal power loss and improved efficiency in power circuits. The termination style is solder, compatible with surface mount technology assembly processes.
Murata's LQH series inductors adhere to RoHS standards, ensuring environmental safety and compliance. The maximum self resonant frequency of 15 MHz permits application in various consumer electronics, including digital cameras, mobile phones, TVs, and gaming machines.
This wirewound surface mount inductor offers excellent stability in inductance values. Shielding enhances performance by minimizing EMI concerns in sensitive circuits. Ferrite core material optimizes magnetic characteristics for effective energy storage.
The inductor supports a wide operating temperature from sub-zero to high heat environments. Compact footprint suits modern miniaturized electronic devices. Low DC resistance reduces power dissipation and heat generation.
Solder termination style facilitates automated manufacturing processes. RoHS compliance ensures environmentally responsible product design. High self resonant frequency makes it suitable for high-frequency applications.
This Murata surface mount inductor is widely used in industrial, consumer electronics, telecommunications, and manufacturing sectors where reliable inductors are essential for power supply booster circuits and noise filtering.
Explore more Surface Mount Inductors and electronics components at EnvMart to support your project requirements with precision and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±20%.
The maximum DC current supported by this inductor is 1.4 A.
The dimensions of the 5050 package are 5mm in length, 5mm in depth, and 2mm in height.
The maximum DC resistance of this model is 259 milliohms.
It operates reliably within a temperature range of -40°C to 125°C.
The termination style is solder, making it compatible with standard surface mount assembly processes.
This inductor features a ferrite core material, which enhances its magnetic properties.
The maximum self-resonant frequency is 15 MHz, allowing for use in high-frequency applications.
Yes, it is RoHS compliant, ensuring it meets environmental and safety standards.
It uses a wirewound construction, which provides high inductance stability.
The inductor is packaged in embossed tape, suitable for automated manufacturing processes.
This inductor is suitable for various consumer electronics, including digital cameras, mobile phones, and gaming machines, particularly for noise filtering and power supply circuits.
