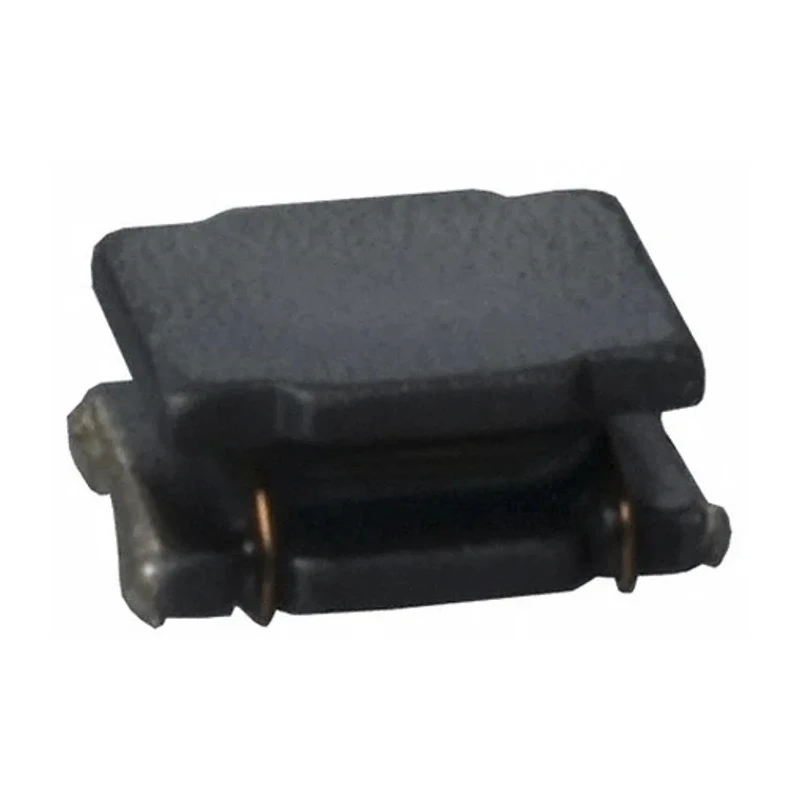

Murata Shielded Wirewound Surface Mount Inductor with Ferrite Core 1μH ±30% 3.4A Idc 4532 Package LQH43PN1R0N26L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43PN1R0N26L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 4532 |
| Maximum DC Current | 3.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 26mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 100MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor uses a wirewound construction for reliable performance.
- It is designed in a 4532 package size suitable for surface mount assembly.
- The component is coated for strengthened durability and features solder termination style.
- The operating temperature range is from -40°C to 85°C, meeting RoHS compliance standards.
- It includes shielding to reduce electromagnetic interference in circuits.
- The maximum DC resistance is 26 mΩ ensuring low power loss.
- The maximum self-resonant frequency is 100 MHz for high frequency applications.
- This inductor is moulded and optimized for applications in digital cameras, mobile phones, TV, and gaming machines.
Product Description
Murata LQH43PN1R0N26L is a shielded wirewound surface mount inductor incorporating a ferrite core with an inductance of 1 μH ±30% tolerance and a maximum DC current rating of 3.4 A. It is housed in a compact 4532 case size with dimensions of 4.5 mm length, 3.2 mm depth, and 2.6 mm height, making it suitable for compact PCB layouts.
This series of inductor utilizes wirewound construction around a ferrite core, with the coil coated in resin for enhanced mechanical strength and durability. The solder termination style and embossed tape packaging enable efficient automatic surface mount technology (SMT) assembly processes.
Designed for operation in temperatures ranging from -40°C to 85°C, the component is RoHS compliant and shielded to minimize electromagnetic interference, maintaining circuit integrity. Its low maximum DC resistance of 26 mΩ minimizes energy loss in power supply booster circuits and similar applications.
The inductor's maximum self-resonant frequency of 100 MHz allows operation in high-frequency environments typically found in digital cameras, mobile phones, televisions, and gaming machines. Its robust construction and Japanese manufacturing origin ensure reliability in demanding industrial and consumer electronics applications.
Packaging in embossed tape format supports high volume production efficiency. Applications include digital cameras, mobile phones, TV sets, and gaming consoles where effective power supply management and noise suppression are critical.
The component offers stable inductance performance with ±30% tolerance. The shielded construction effectively reduces environmental electromagnetic noise. Compact 4532 surface mount package enables space-saving PCB layouts.
Wide operating temperature range from -40°C to 85°C suits various environmental conditions. Low DC resistance ensures minimal power loss and improved efficiency. RoHS compliant, meeting environmental and safety standards.
Constructed for high-frequency application up to 100 MHz. Facilitates automatic placement with embossed tape packaging. Explore EnvMart’s broad selection of high-quality Surface Mount Inductors including the Murata LQH series, designed for modern electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1μH with a tolerance of ±30%.
It has a maximum DC current rating of 3.4A.
This inductor has dimensions of 4.5 mm in length, 3.2 mm in depth, and 2.6 mm in height.
The maximum self-resonant frequency is 100 MHz, making it suitable for high-frequency applications.
The operating temperature range is from -40°C to 85°C.
It features a wirewound construction around a ferrite core, which enhances its performance.
The inductor is packaged in embossed tape, facilitating efficient automatic surface mount technology (SMT) assembly.
The maximum DC resistance is 26 mΩ, which helps minimize energy loss.
Yes, this inductor meets RoHS compliance standards.
It is optimized for use in digital cameras, mobile phones, televisions, and gaming machines.
The termination style is solder, suitable for surface mount assembly.
The country of origin for this inductor is Japan.
