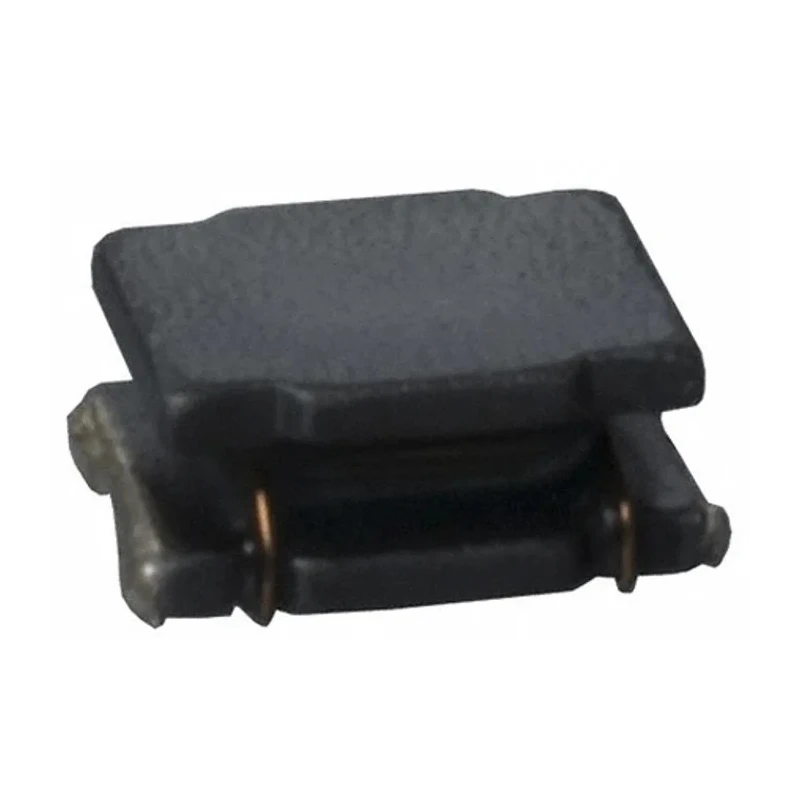

Murata Shielded Wirewound Surface Mount Inductor 22μH ±20% 650mA 3225 Package LQH32PN220MNCL
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.55mm |
| Length | 3.2mm |
| Model | LQH32PN220MNCL |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 650mA |
| Pin Count | 2 |
| Maximum DC Resistance | 685mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for effective magnetic shielding and stability.
- Packaged in a 3225 embossed tape surface mount package suitable for automated placement.
- Rated maximum DC resistance of 685 milliohms ensuring low power loss.
- Operating temperature range from -40°C to 125°C for reliability in diverse conditions.
- Features a solder termination style compatible with standard PCB assembly processes.
- Maximum self-resonant frequency of 20 MHz ideal for high frequency applications.
- RoHS compliant ensuring environmental and safety standards.
- Wirewound construction enhances inductance precision for power supply booster circuits.
Product Description
Murata LQH32PN220MNCL is a high-quality shielded wirewound surface mount inductor designed with a ferrite core to ensure optimal magnetic performance and shielding. This 22 μH inductor offers ±20% inductance tolerance and supports a maximum DC current of 650 mA, making it ideal for various electronic applications including power supply booster circuits and high-frequency signal processing.
The component is packaged in a 3225 size embossed tape suitable for surface mount technology (SMT), facilitating automated assembly lines. Its solder termination style and wirewound construction provide durability and reliability under mechanical and thermal stress. The inductor features a maximum DC resistance of 685 milliohms, balancing efficiency with power loss reduction.
Designed to operate within a temperature range of -40°C to 125°C, this Murata inductor is robust for use in automotive, telecommunications, and consumer electronics environments. With a maximum self-resonant frequency of 20 MHz, it performs effectively in circuits requiring high-frequency operation.
Compliant with RoHS standards, the LQH32PN220MNCL inductor supports eco-friendly manufacturing practices. The ferrite core material and molding ensure long-term stability and mechanical strength. Made in Japan, it meets stringent quality control and manufacturing excellence.
Constructed with ferrite core and wirewound technology ensuring precision and durability. Surface mount package 3225 ensures compact design and efficient PCB integration. Suitable for power supply circuits, digital cameras, mobile phones, and other electronic devices.
Wide operating temperature range supports diverse industrial and commercial applications. RoHS compliant and manufactured under strict quality standards.
This inductor is a reliable choice for electronic designers needing a stable inductance with robust current handling in a compact SMT package. Explore more Surface Mount Inductors and related components on EnvMart for comprehensive application design support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 650mA.
The maximum self-resonant frequency is 20 MHz, making it suitable for high-frequency applications.
The dimensions of the 3225 package are 3.2mm in length, 2.5mm in depth, and 1.55mm in height.
It operates within a temperature range of -40°C to 125°C, allowing for use in various environments.
The inductor is constructed with a ferrite core, which provides effective magnetic shielding and stability.
The maximum DC resistance is 685 milliohms, ensuring low power loss during operation.
It features a solder termination style, compatible with standard PCB assembly processes.
Yes, the LQH32PN220MNCL is RoHS compliant, adhering to environmental and safety standards.
This inductor is suitable for power supply booster circuits and high-frequency signal processing in various electronic devices.
It is packaged in embossed tape, which is suitable for automated surface mount technology (SMT) assembly.
This inductor belongs to the LQH series, known for its wirewound construction and reliability.
