Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Bead 1000 Ω Impedance at 100 MHz BLM21AG102SH1D

Free Delivery in India | Lowest Global Shipping Charges

Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Bead 1000 Ω Impedance at 100 MHz BLM21AG102SH1D

Name: Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Bead 1000 Ω Impedance at 100 MHz BLM21AG102SH1D
Brand: Murata
SKU: 182991
Price: 0.07 USD
Availability: InStock



Category Ferrite Beads Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Material	Ferrite
Height	0.85mm
Length	2mm
Model	BLM21AG102SH1D
Depth	1.25mm
Mount Type	Surface
Current Rating	500mA
Series	BLM21A
Maximum Operating Temperature	125°C
Package Type	0805
Sub Type	Chip Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	REACH, RoHS
Maximum DC Resistance	0.28Ω
Impedance at 100 MHz	1000Ω
Automotive Standard	AEC-Q200

Key Features

Compact 0805 package size suitable for surface mounting.
Impedance of 1000 Ω at 100 MHz to effectively suppress EMI noise.
Current rating of 500 mA supports moderate current applications.
Wide operating temperature range from -55°C to 125°C for reliability.
Low maximum DC resistance of 0.28 Ω to reduce losses.
Constructed from ferrite material for high-frequency noise attenuation.
Compliant with REACH and RoHS environmental standards.
Automotive grade AEC-Q200 certification ensures quality for automotive electronics.

Product Description

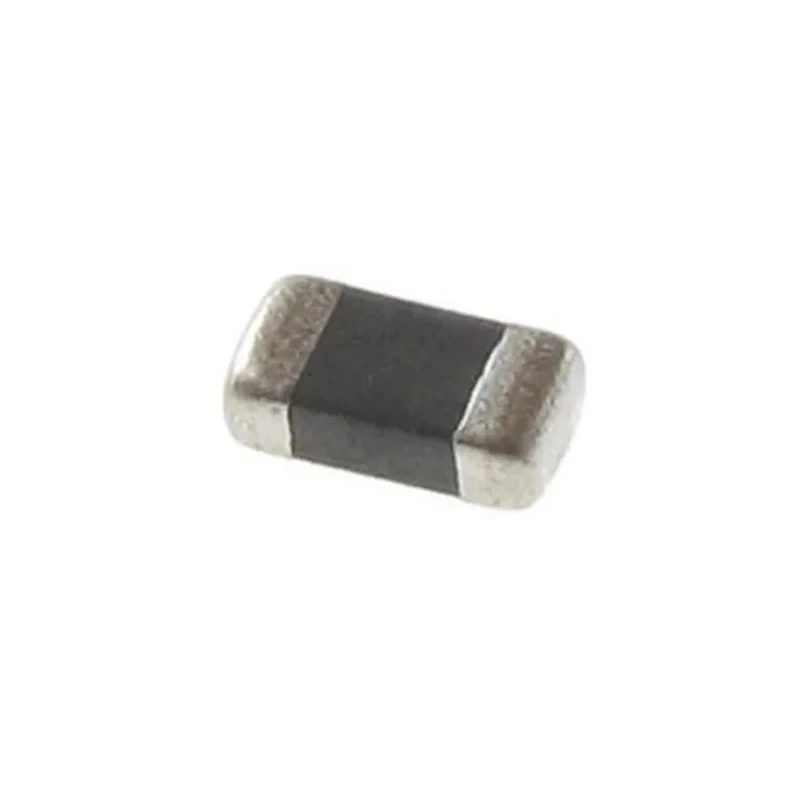

Murata BLM21AG102SH1D is a surface mount ferrite bead with a compact 0805 package size measuring 2 mm in length, 0.85 mm in height, and 1.25 mm in depth. It is designed as a chip bead with an impedance of 1000 Ω at 100 MHz, making it ideal for EMI suppression applications in electronic circuits.

This ferrite bead supports a current rating of 500 mA and operates reliably over a broad temperature range from -55°C to 125°C, suitable for demanding industrial and automotive environments. It features a maximum DC resistance of just 0.28 Ω, minimizing conduction losses while effectively filtering high-frequency noise signals.

Constructed with high-quality ferrite material, this component complies with international environmental standards, including REACH and RoHS, ensuring safe usage and disposal. Additionally, it meets automotive industry standard AEC-Q200, confirming its reliability in powertrain and safety-related systems.

The nickel barrier on external electrodes improves solder heat resistance, facilitating secure PCB assembly. Its ability to function as a resistor at noise frequencies helps maintain signal integrity by preventing waveform distortion and resonance.

Compact 0805 SMD package for space-saving circuit design. 1000 Ω impedance at 100 MHz for effective EMI filtering. Supports 500 mA current for various electronic applications. Wide temperature operation from -55°C to 125°C.

Low DC resistance of 0.28 Ω reduces power losses. Manufactured with ferrite material ensuring high-frequency suppression. Compliance with REACH and RoHS standards for environmental safety. AEC-Q200 certified for automotive use.

High solder heat resistance due to nickel barrier external electrodes. Ideal for use in automotive, powertrain, safety, industrial, and general electronic applications.

Choose the Murata BLM21AG102SH1D ferrite bead for reliable EMI noise suppression in your surface mount electronic designs. Explore more high-quality electronic components and related products on EnvMart.
