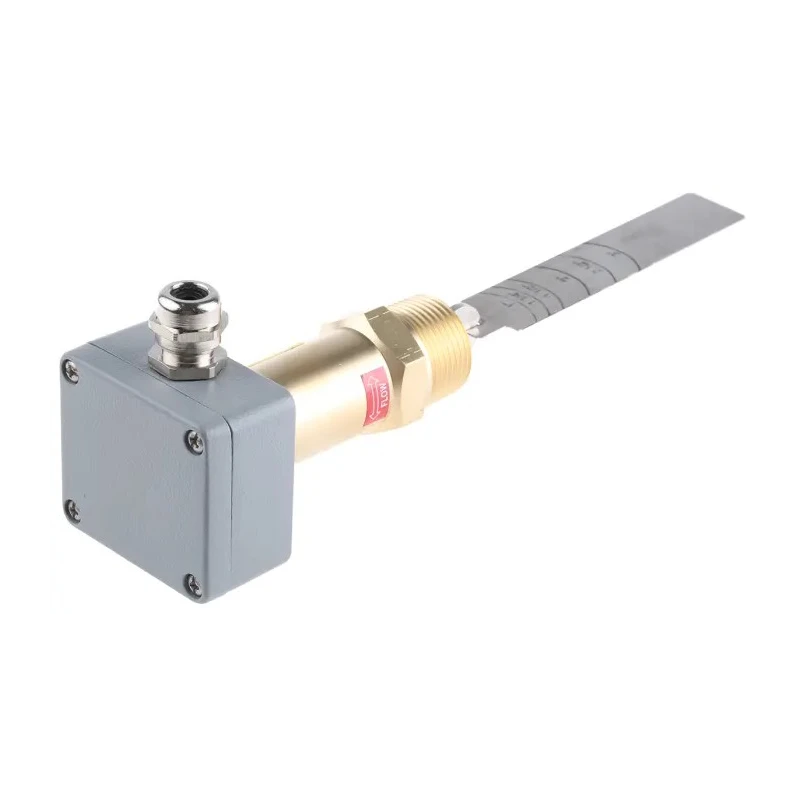

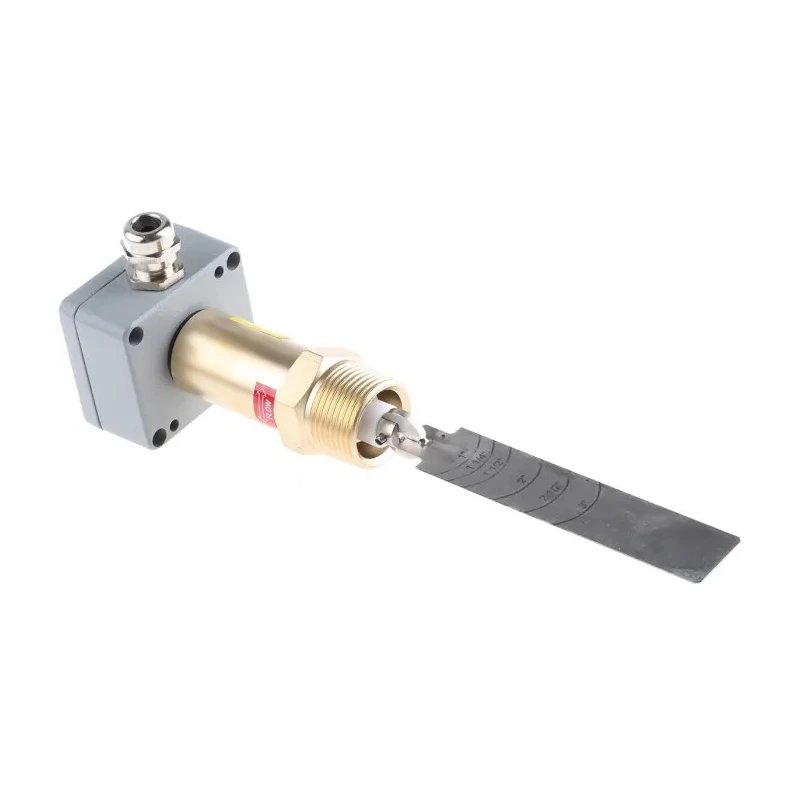

Gems Sensors FS-550E Series Paddle Flow Sensor for Liquid, 15L/min Min, 125L/min Max 020-3497

Gems Sensors 020-3497 FS-550E Series Paddle Flow Sensor is engineered to monitor liquid flow rates ranging from 15 liters per minute to 125 liters per minute. Featuring a robust brass housing and an IP65 rating, this paddle sensor ensures durability and reliable operation in industrial environments.

The sensor connects easily via a 1-inch BSP threading, compatible with a wide range of piping systems. It reliably operates under maximum pressures of up to 55 bar and media temperatures from -18°C to 100°C. Its paddle design pivots out of the flow path as flow increases, producing a minimal pressure drop of just 0.2 bar regardless of pipe size.

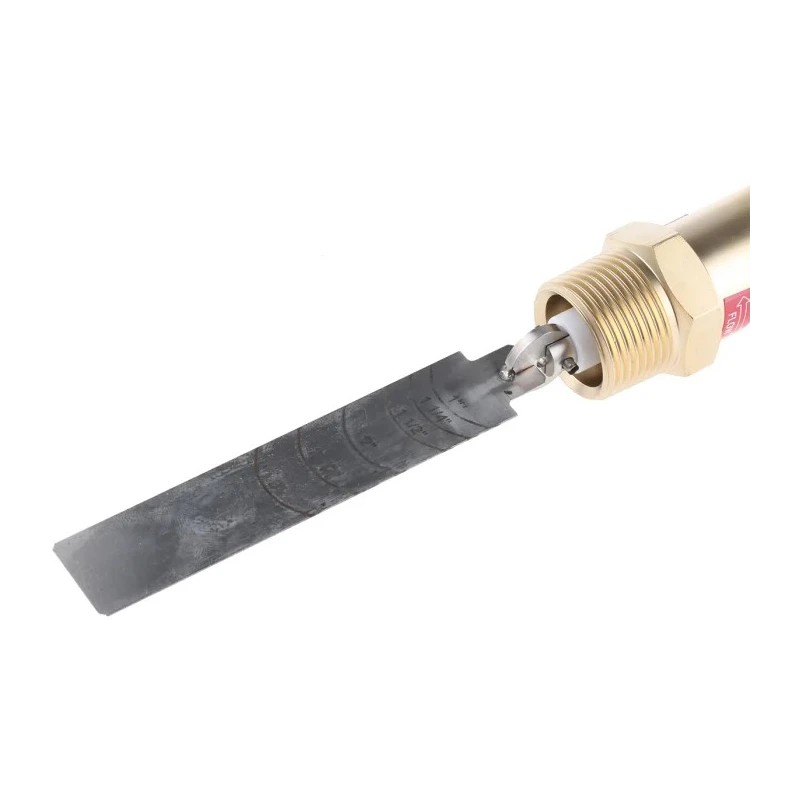

This flow sensor includes a SPDT switching function, allowing precise detection of flow/no-flow conditions in either direction. The switch's paddle can be trimmed during installation to actuate at the desired flow rate, providing customizable performance for diverse applications.

Common industrial applications include use in compressors, heat exchangers, turbines, engines, boilers, chillers, valves, pumps, and regulators in manufacturing, HVAC, and water treatment sectors.

Brass housing with durable construction and terminal box electrical connection. 1 inch BSP connection type for wide compatibility. Operating temperature range from -18°C to 100°C. Maximum pressure rating of 55 bar ensures suitability for demanding conditions.

Minimal inline restriction reduces system losses. SPDT electrical switching for reliable flow monitoring. Supports AC supply voltage up to 250 V and current rating of 500 mA. IP65 rated for protection against dust and water ingress.

Complies with CE and UL standards for safety and quality assurance.

This product is manufactured in the United States and is ideal for demanding industrial and commercial fluid flow monitoring needs. Browse the EnvMart Sensors category for similar high-quality Flow Sensors and automation components.
