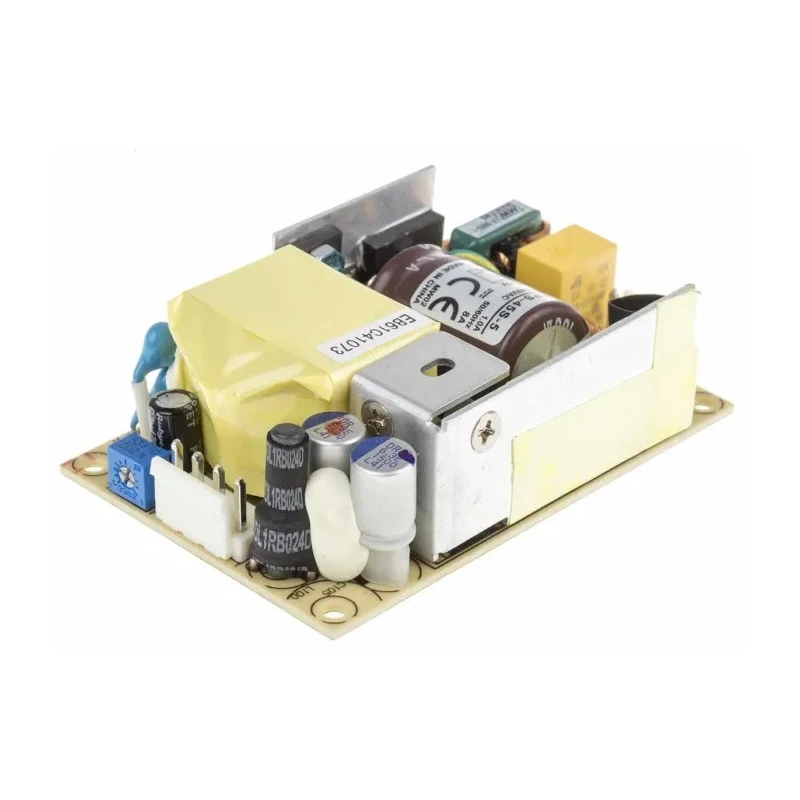

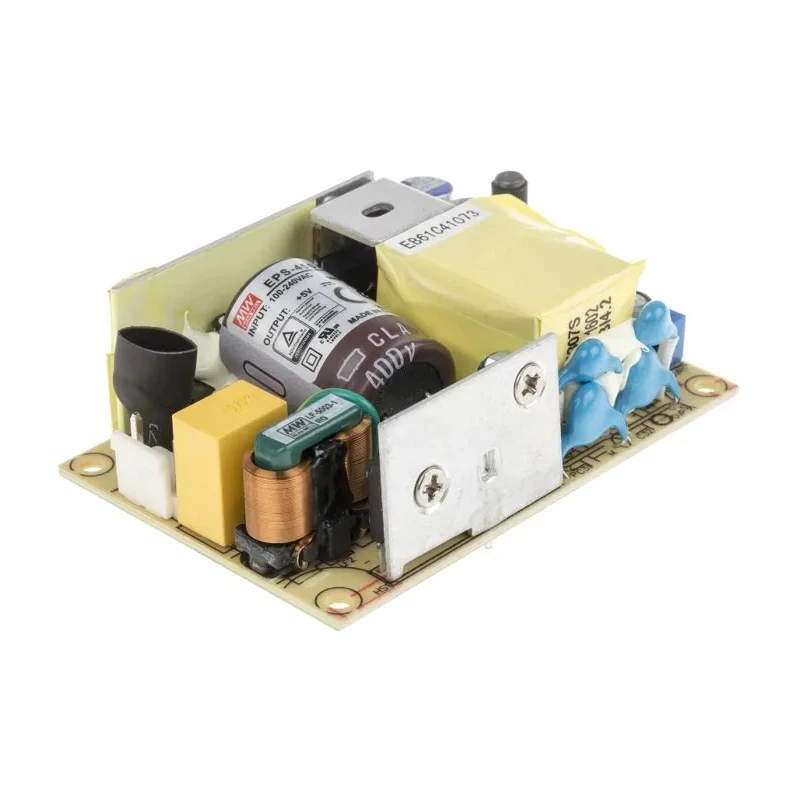

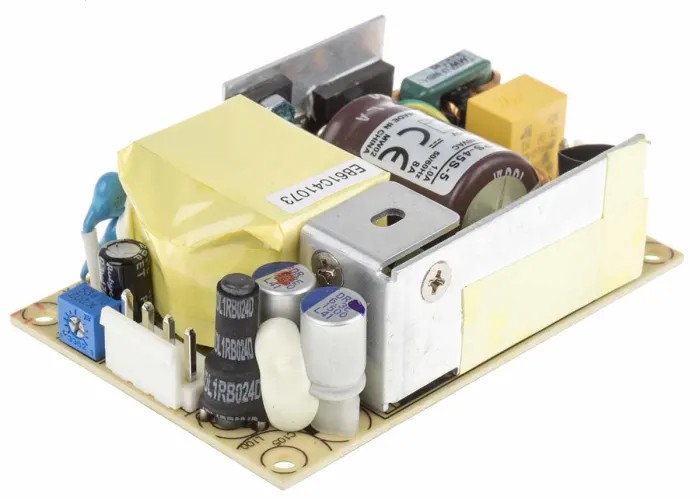

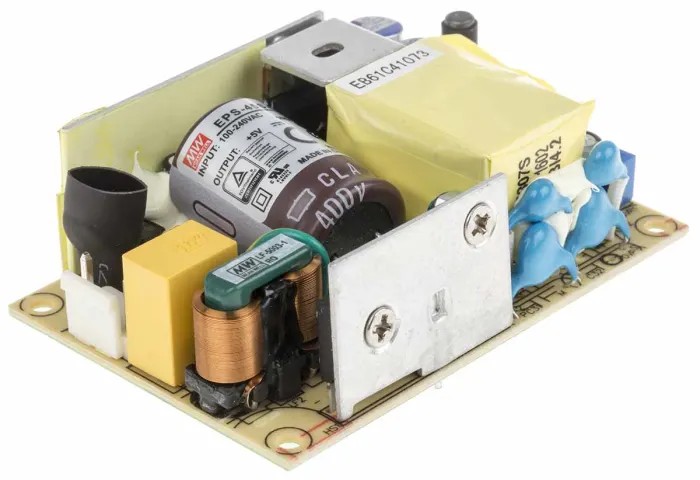

MEAN WELL EPS-45S-5 Switching Power Supply 5V DC 40W 8A Chassis Mount 82% Efficiency EPS-45S
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 40W |
| Efficiency | 82% |
| Length | 101.6mm |
| Model | EPS-45S-5 |
| Depth | 29mm |
| Gross Weight | 140g |
| Width | 29mm |
| Mount Type | Chassis |
| Series | EPS-45S |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Standards/Approvals | UL 6681, TUV BS ENEN 6681, IEC 6681, EAC TP TC 004 |
| Maximum Output Voltage | 5V dc |
| SMPS Output Current | 8A |
| Minimum Input Voltage | 90V ac |
Key Features
- Supports wide AC input voltage from 90V to 264V and DC input up to 370V.
- Compact size with dimensions 101.6mm L x 29mm W x 29mm D for 1U applications.
- Provides 8A output current with 82% efficiency for industrial automation use.
- Features short circuit, overload, and over voltage protection with LED power status indicator.
- Operates reliably in temperatures from -30°C to +70°C with free air convection cooling.
- Complies with UL 6681, TUV, IEC standards ensuring safety and quality.
- Ideal for mechanical, electrical equipment and industrial control systems.
Product Description
MEAN WELL EPS-45S-5 switching power supply is a robust chassis mount device designed for industrial power needs, providing a stable 5V DC output with maximum power of 40W and 8A output current.
This model accepts a wide input voltage range from 90V AC to 264V AC, and also supports DC input voltages up to 370V, making it versatile for varied power environments.
With compact dimensions of 101.6mm length, 29mm width, and 29mm depth, it fits well in space-constrained 1U height applications, suitable for automation machinery and laboratory equipment.
It offers high efficiency of 82%, along with short circuit, overload, and over voltage protections to ensure durability and safety in demanding industrial environments. The power status is clearly shown via LED indication.
The EPS-45S-5 operates effectively in harsh temperature conditions ranging from -30°C up to 70°C, cooled through free air convection without need for additional cooling mechanisms.
Certified to rigorous standards including UL 6681, TUV, IEC 6681, BS EN and EAC TP TC 004, this power supply ensures compliance and reliability for industrial, laboratory, and electronic instrument applications.
Supports wide input voltage and high efficiency operation. Provides reliable protections for safe operation. Compact chassis mount form factor suitable for 1U applications. LED indication for power status and free air convection cooling.
Complies with multiple international safety standards.
This switching power supply is an excellent choice for industrial automation, electronic instruments, mechanical and electrical equipment, and other demanding environments. Browse further in our Switching Power Supplies category for more options and reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EPS-45S-5 provides a maximum output current of 8A.
It accepts a wide input voltage range from 90V AC to 264V AC and supports DC input voltages up to 370V.
The dimensions of the EPS-45S-5 are 101.6mm in length, 29mm in width, and 29mm in depth.
The EPS-45S-5 has an efficiency rating of 82%.
It operates reliably in temperatures ranging from -30°C to 70°C.
This model features short circuit, overload, and over voltage protection, ensuring safe operation.
It is designed for chassis mounting, making it suitable for compact applications.
The EPS-45S-5 has a maximum power output of 40W.
It complies with UL 6681, TUV, IEC 6681, and other relevant standards, ensuring safety and quality.
The gross weight of this model is 140g.
The power status is indicated by an LED indicator on the EPS-45S-5.
This power supply is ideal for industrial automation, electronic instruments, and mechanical and electrical equipment.
