MEAN WELL IP67 1 Output LED Driver 24V 150W 900mA DALI

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP67 1 Output LED Driver 24V 150W 900mA DALI

Name: MEAN WELL IP67 1 Output LED Driver 24V 150W 900mA DALI
Brand: MEAN WELL
SKU: 182542



Category LED Drivers Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	ELG-150
Configuration	Encapsulated
Sub Type	LED Driver
Operating Modes	Constant Current/Constant Voltage
Number of outputs	1
Terminal type	Wire
Maximum Output Power	150W
Input Voltage	180, 305, 254, 431V ac
Output Voltage	24V
Power Dissipation	150W
Standards/Approvals	CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750
Dimming Operation	DALI
Primary Type	AC-DC, DC-DC
Driver Current	900mA
Standards/ApprovalsCB, CE	CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750
CB, CE	CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750

Key Features

Fan-less design ensures high efficiency and silent operation.
Encapsulated full metal housing provides robust protection with IP67 rating.
Supports both constant current and constant voltage output modes.
Input voltage range includes 180 to 431 V AC for versatile deployment.
DALI dimming allows flexible brightness control in lighting systems.
Built-in active power factor correction enhances energy efficiency.
Compliance with multiple international standards including CB, CE, UL and EN certifications.
Ideal for LED street lighting, architectural, bay, and floodlighting applications.

Product Description

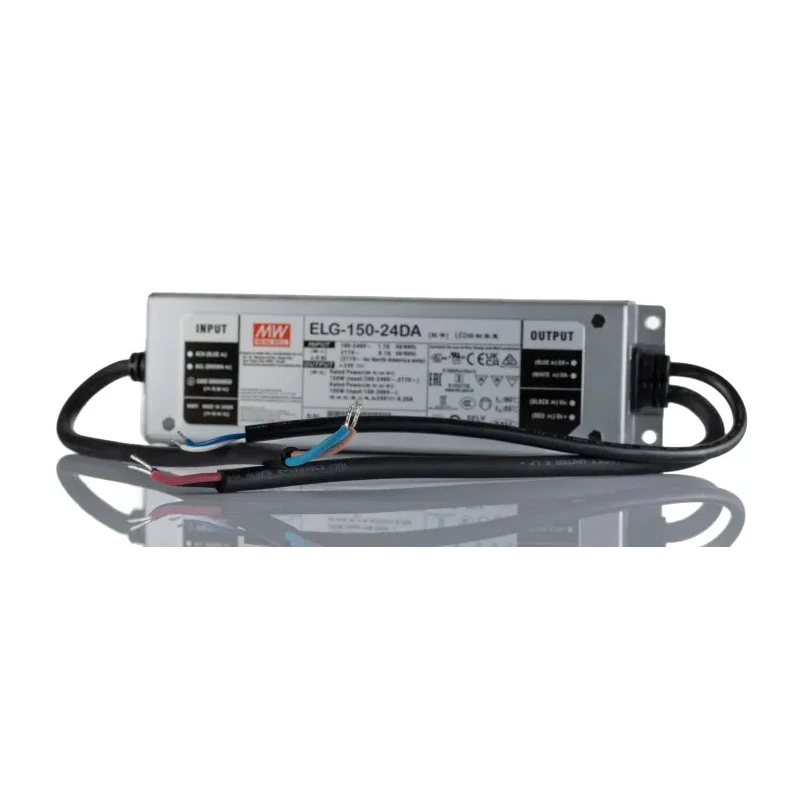

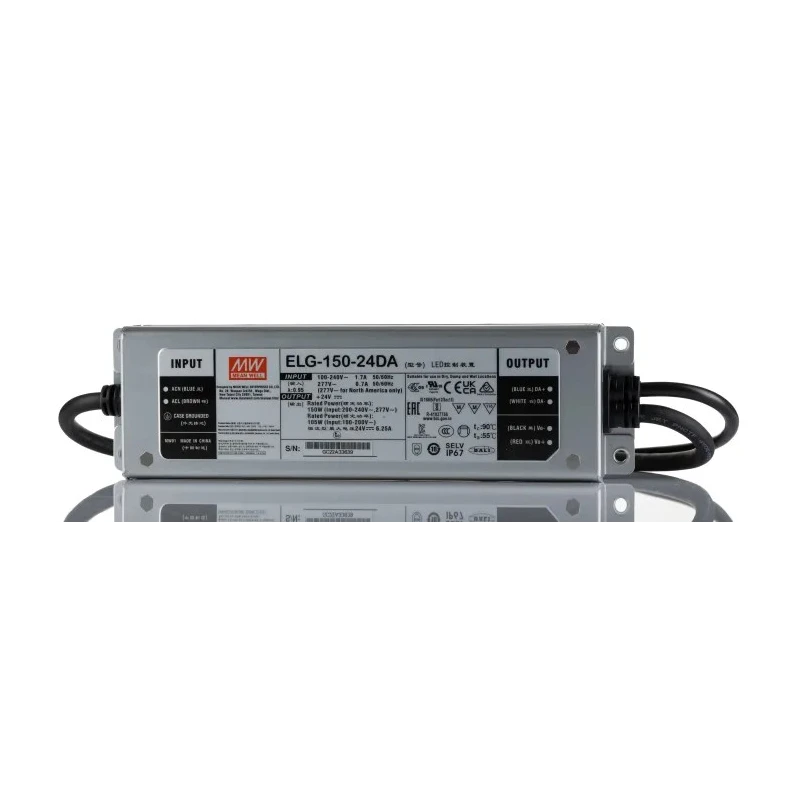

MEAN WELL ELG-150-24DA is a robust and efficient IP67-rated LED driver delivering 150W power at 24V output voltage and 900mA driver current. Manufactured with a fan-less design and encapsulated full metal housing, this LED driver ensures high efficiency up to 91% and reliable operation across wide temperature ranges. It supports both constant current and constant voltage operating modes and offers flexible dimming control via DALI dimming operation.

This LED driver is engineered for demanding industrial and commercial LED lighting applications including street lighting, architectural lighting, bay lighting, and floodlighting. Its wide input voltage range from 180V to 431V AC supports global power standards. The compact screw mount and wire terminal configuration enable easy and secure installation.

The ELG-150-24DA complies with a comprehensive set of international standards such as CB, CE, CCC approvals, cULus recognition, EN61347-1, EN61347-2-13, EN62384, ENEC certification, power factor correction (PFC), and UL8750 ensuring safety and interoperability. Its IP67 ingress protection rating makes it resistant to dust and water, suitable for outdoor and harsh environment installations.

Fan-less design with high energy efficiency. IP67 rated encapsulated full metal housing. Constant current and constant voltage operation modes. DALI compatible digital dimming interface. Wide input voltage range 180-431V AC.

Single output delivering 24V at 900mA current. Comprehensive international safety and performance certifications. Suitable for industrial and outdoor LED lighting applications. Screw mounting with wire terminal connectivity.

MEAN WELL ELG-150 series LED drivers are a dependable solution for LED luminaire manufacturers and lighting designers requiring durable, efficient, and flexible power supply units. Explore the MEAN WELL range on EnvMart for additional options in LED Drivers and power supplies tailored to various lighting system requirements.
