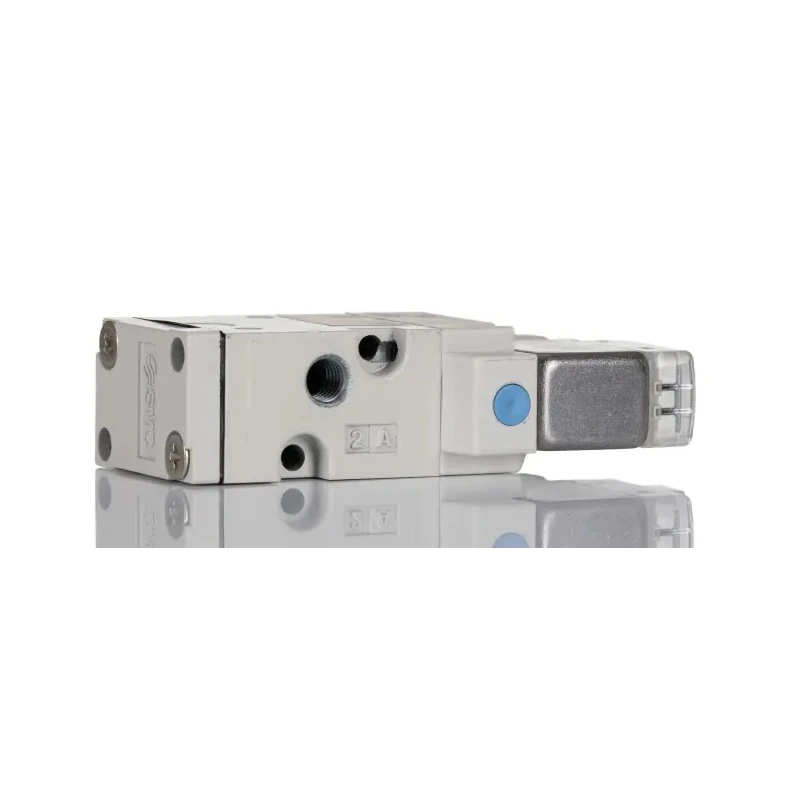

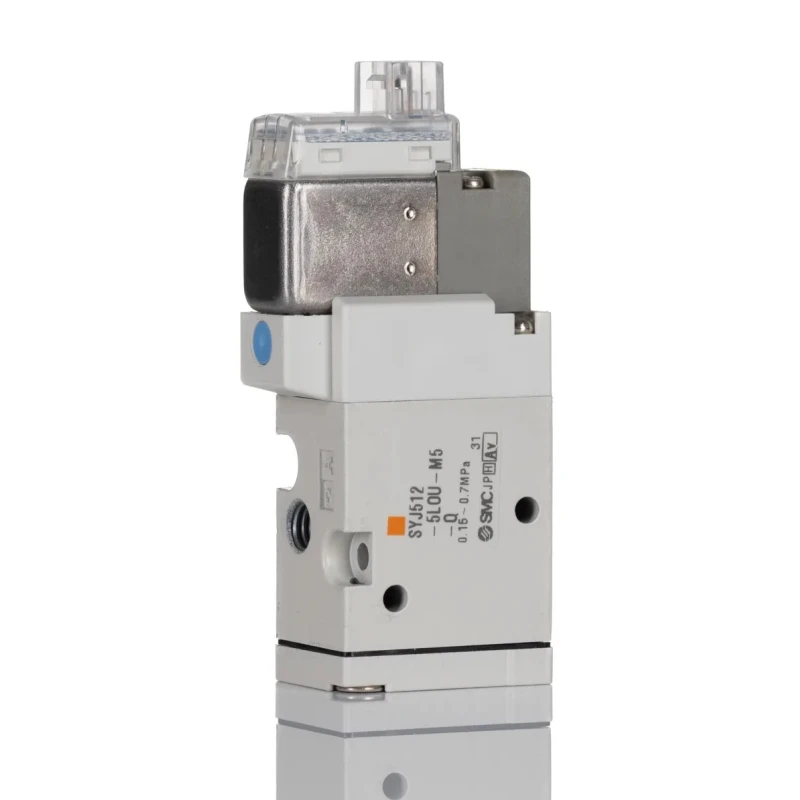

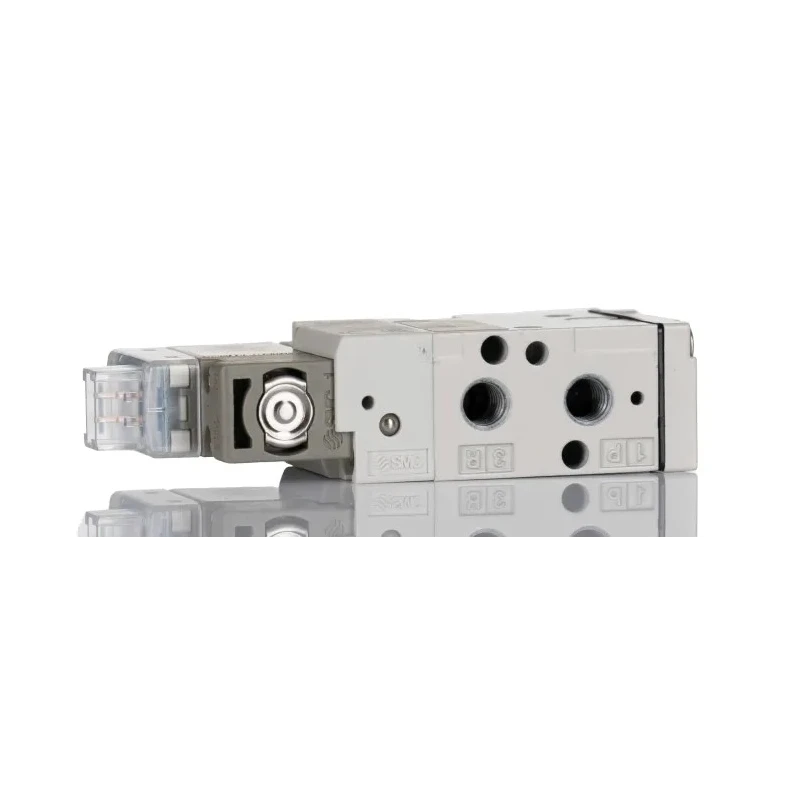

SMC Pneumatic Solenoid Valve 3/2 NC Single Solenoid Metric Port M5 24V DC 0.55W SYJ500

SMC SYJ512-5LOU-M5-Q is a pneumatic solenoid valve from the SYJ500 series designed for efficient medium flow pneumatic applications. This 3/2 port valve features a normally closed single solenoid design, ideal for space-sensitive automation where reliable valve function is critical.

The valve body is constructed of durable die cast aluminium with M5 metric port connections, ensuring robust mounting and easy integration. It operates at a low power consumption of 0.55 W and requires a 24-volt DC power supply, making it compatible with modern PLC output relays and control systems for cost-effective automation solutions.

This model offers a maximum operating pressure of 0.7 MPa and a maximum flow rate of 196.3 NL/min, allowing for precise control of pneumatic circuits. The seal material is nitrile rubber (NBR) providing excellent seal integrity under a wide temperature range from -10°C to 50°C, suited for various industrial and manufacturing environments.

Additional features include a surge voltage suppressor for protecting the solenoid coil, non-locking manual override for manual actuation, and stand-alone mounting capability. The valve is RoHS compliant and IP65 rated, supporting reliable operation in harsh industrial settings.

Common industrial uses include automated machinery, pneumatic control systems in manufacturing lines, fluid power applications, and other automation-related pneumatic tasks. The valve’s compact size and efficient power consumption optimize installation where space and energy conservation are priorities.

Designed for 3/2 Normally Closed valve function for precise pneumatic control. Compact die cast aluminium body ensures durability and lightweight design. Operates at a voltage of 24V DC with low power consumption of 0.55 watts.

Maximum operating pressure up to 0.7 MPa with flow capacity of 196.3 NL/min. Sealed with nitrile rubber (NBR) to ensure leak-proof operation. Suitable for stand-alone mounting with M5 port connections conforming to metric thread standard.

Operating temperature range from -10°C to 50°C for versatile industrial environments. Non-locking manual override and IP65 rated surge voltage suppressor included. Compatible with control systems for improved automation efficiency.

Explore EnvMart’s Pneumatic Solenoid Valve category to discover a wide range of high-quality valves from trusted brands like SMC designed to meet diverse industrial automation needs.
