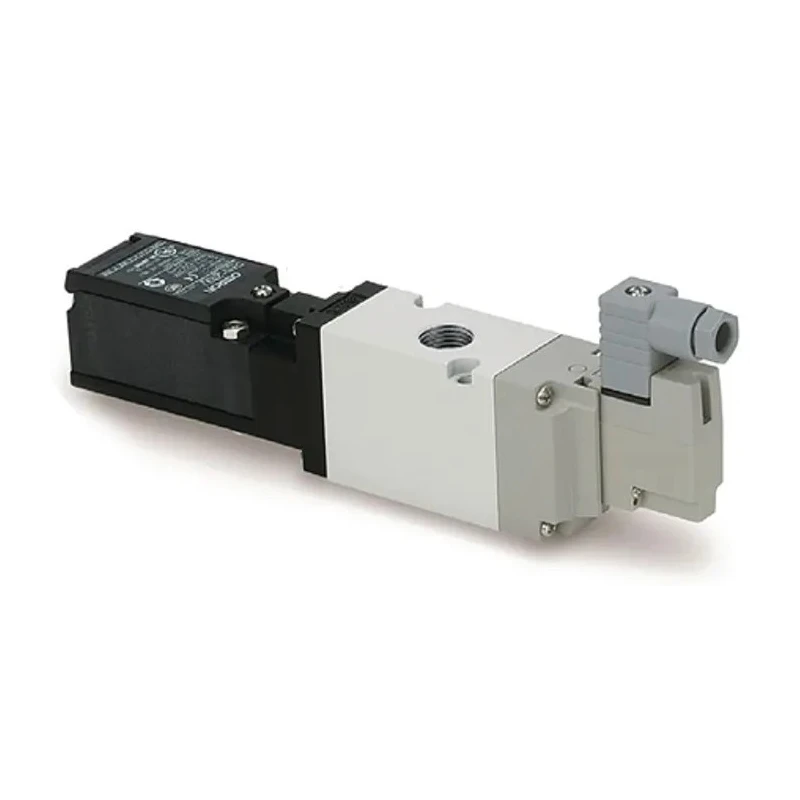

SMC Pneumatic Solenoid Valve 3/2 NC Single Solenoid G Threaded Port 3/8 in 24V VP500 Series

SMC VP542-5DZ1-03F-X536 Pneumatic Solenoid Valve 3/2 NC from the VP500 Series is designed for safe venting of compressed air within category 2 safety systems conforming to ISO13849-1 standards. This valve features a single solenoid actuation with a normally closed function ensuring reliable operation.

The valve includes a die cast aluminium body, threaded female ports sized at 3/8 inch with a G connection thread standard, and is equipped with a rubber seal for enhanced durability and leak prevention. It supports a maximum operating pressure of 0.7 MPa and operates effectively within a temperature range of -10°C to 50°C.

Additional functional features include a limit switch for position monitoring and an LED indicator for valve status. It has a solenoid power consumption of 1.5W and is mounted body ported for secure installation. The valve uses a DIN connector for electrical connections and supports a pilot pressure range of 0.2 MPa to 0.7 MPa.

Primarily intended for use in pneumatic safety control systems, it is suitable for industrial, manufacturing, assembly machinery, and tyre pressure testing equipment applications where ISO13849-1 compliance is necessary. Modular fitment with SMC FRL systems enables easy integration into existing setups.

Note that while the valve is a critical safety component, it is not individually certified to ISO13849-1. Complete system certification should be confirmed by a qualified third party. This valve meets RoHS and CE standards ensuring compliance with environmental and safety regulations.

Operates as a 3/2 normally closed valve with single solenoid actuation. Threaded female 3/8 inch port with G connection standard. Die cast aluminium body ensures structural integrity. 0.7 MPa maximum operating pressure suitable for various pneumatic systems.

Equipped with rubber seals for durability and leak resistance. Limit switch enables continuous monitoring of valve status. 24V voltage with 1.5W solenoid power consumption ensures energy efficiency. Fits modularly with SMC FRL pneumatic systems.

Operating temperature range from -10°C to 50°C for broad environmental applications. DIN connector electrical interface for reliable connection. Explore more pneumatic valves and components in the Industrial Valves & Valve Fittings category on EnvMart for comprehensive solutions.
