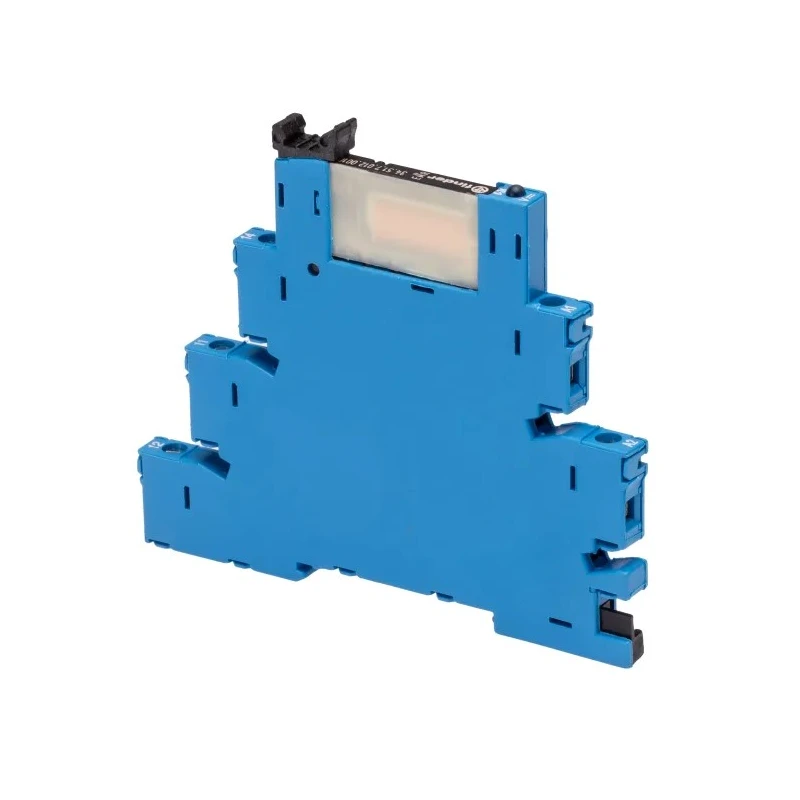

Finder 38 Series Electromechanical Interface Relay DIN Rail Mount 12V DC Coil SPDT 6A 15.2mA Coil Current 38.51.7.012.0050

Free Delivery in India | Lowest Global Shipping Charges

Finder 38 Series Electromechanical Interface Relay DIN Rail Mount 12V DC Coil SPDT 6A 15.2mA Coil Current 38.51.7.012.0050

Name: Finder 38 Series Electromechanical Interface Relay DIN Rail Mount 12V DC Coil SPDT 6A 15.2mA Coil Current 38.51.7.012.0050
Brand: FINDER
SKU: 182383
Price: 22.98 USD
Availability: InStock



Category Electromechanical Interface Relay Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Height	87.9mm
Length	6.2mm
Width	75.6mm
Mount Type	DIN Rail
Contact Material	Silver Alloy
Series	38
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	Screw
Standards/Approvals	CE, CSA
Coil Voltage	12V dc
Coil Current	15.2mA
Switching DC Voltage	12V dc
Switching AC Voltage	250V ac
Finder 38 Series Interface Relay, DIN Rail, 12V dc Coil, SPDT, 15.2mABrand	Finder
Wieland Flare Series Interface Relay, DIN Rail, 12V ac/dc Coil, SPDT, 19mABrand	Wieland
Phoenix Contact DIN Rail Relay Module, 12V dc Coil, 50mA, SPDTBrand	Phoenix Contact

Key Features

SPDT contact configuration provides versatile switching options for electrical control.
Designed for DIN rail mounting enabling straightforward panel integration.
Coil voltage rating of 12V DC with a coil current of 15.2mA supports energy-efficient operation.
Silver alloy contacts ensure high conductivity and long service life.
Capable of switching up to 6A current and withstanding voltages of 12V DC and 250V AC.
Operates reliably in temperatures ranging from -40°C to 70°C for diverse industrial environments.
Screw terminal connections offer secure and easy wiring installation.
Compact dimensions support space-saving panel designs with a height of 87.9mm and width of 75.6mm.

Product Description

Finder 38 Series Electromechanical Interface Relay model 38.51.7.012.0050 is a DIN rail mounted relay with a 12V DC coil and SPDT contact configuration suitable for automated control and signal management in industrial and commercial electrical systems.

This relay features a low coil current of 15.2mA enabling energy-efficient operation while controlling switching currents up to 6A. Its silver alloy contacts provide enhanced conductivity and durability ensuring long-term reliability in demanding applications. The unit’s temperature tolerance spans from -40°C to 70°C allowing deployment in varied climatic conditions and industrial settings.

The relay is easily mountable on standard DIN rails and comes with screw terminal connections for secure wiring. An integral coil indication improves operational visibility and troubleshooting. The relay also incorporates an instantly ejectable plastic retaining clip for rapid maintenance and replacement.

Applications include interfacing programmable controllers, electrical distribution panels, labelling machines, vending equipment, packaging lines, and traffic light control systems among others. Its robust design suits industrial automation, manufacturing, electrical control cabinets, and HVAC systems.

SPDT contact configuration for versatile switching. 12V DC coil voltage with 15.2mA coil current for low power consumption. High temperature operation up to 70°C for diverse environments. Silver alloy contact material for improved conductivity and long life.

DIN rail mounting for straightforward integration in control panels. Screw terminal type for reliable wiring connections. Instantly ejectable retaining clip for fast relay changes. Integral coil indication for operational feedback.

Wide operating temperature range from -40°C to 70°C. Switching capability of 6A at 12V DC and 250V AC.

This Finder interface relay is a reliable component for automation, electrical control, and signal conditioning tasks in industrial, laboratory, manufacturing, and commercial settings. Explore the full range of interface relays and related electrical components easily on EnvMart for your project and maintenance needs.
