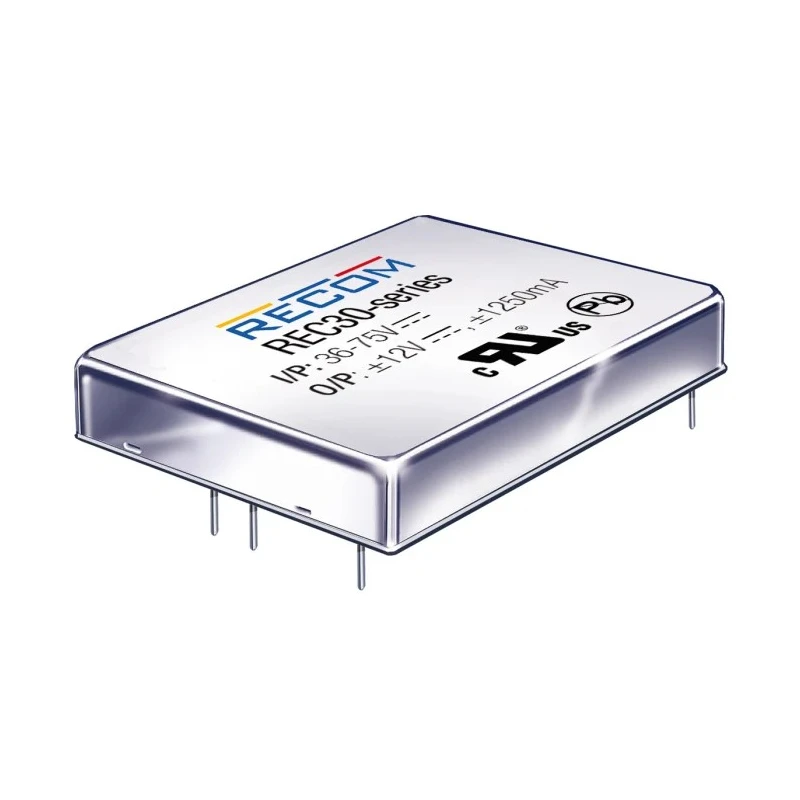

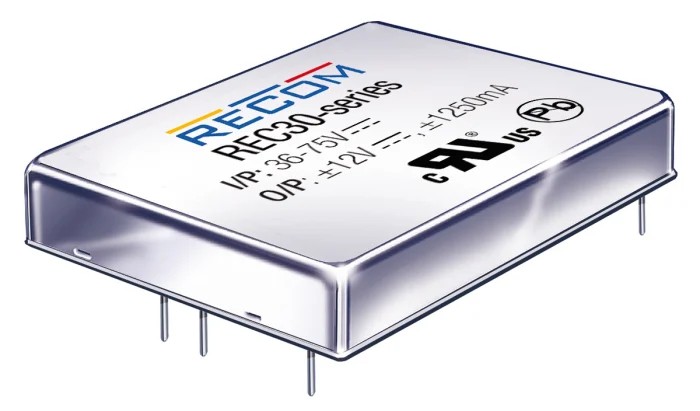

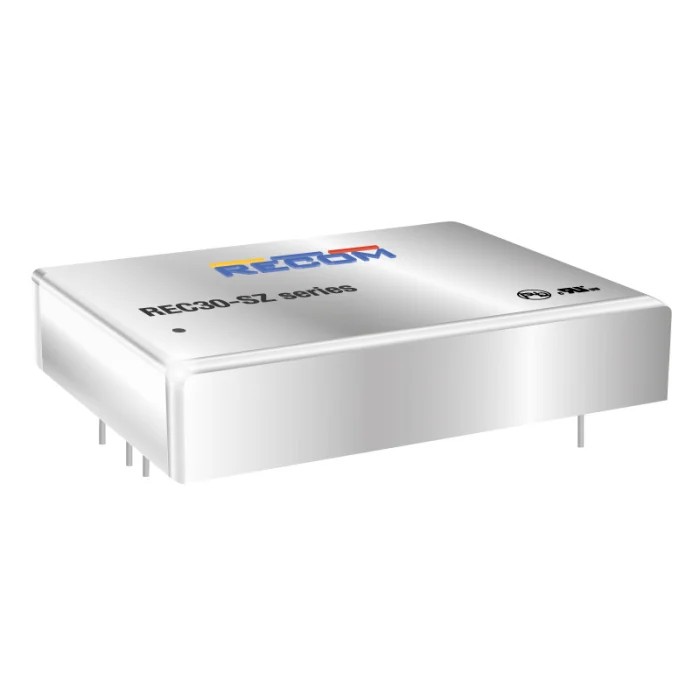

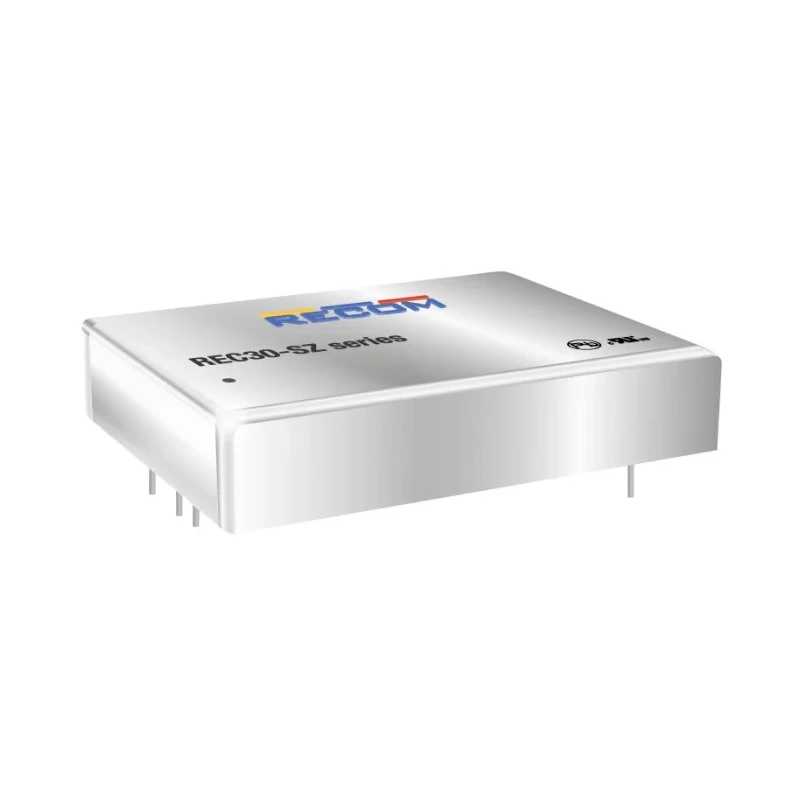

Recom DC/DC Converter 15V 1.34A 36V DC Input 9V Input 30W Through Hole SIP Package REC30-Z
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom REC30-Z DC/DC Converter, 15V/ 1 |
| Brand | Recom |
| Efficiency | 88.5% |
| Length | 50.8mm |
| Model | REC30-Z |
| Depth | 10.2mm |
| Width | 40.6mm |
| Mount Type | Through Hole |
| Series | REC30-Z |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1541000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V |
| Output Current 1 | 1.34A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
Key Features
- Compact SIP package measuring 50.8mm length, 40.6mm width, and 10.2mm depth.
- High efficiency of 88.5% minimizes energy loss during power conversion.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- Isolation voltage up to 1.6kV DC ensures safety and electrical surge protection.
- Remote On-Off switching capability allows external control of converter operation.
- Short-circuit and overvoltage protections enhance device and user safety.
- MTBF of 1,541,000 hours ensures long service life and reliability.
- Fast startup time of approximately 30 milliseconds for rapid power availability.
Product Description
Recom REC30-Z DC/DC Converter model REC30-Z in a compact SIP through-hole package provides a regulated 15V output at 1.34A from a DC input voltage range of 9V to 36V. It offers a maximum output power of 30W and is designed for reliable operation within temperature limits of -40°C minimum to 85°C maximum.
This converter features high electrical isolation of 1.6kV DC to protect equipment and personnel from hazardous voltage spikes, making it suitable for high-power industrial applications and medical-grade isolation requirements.
The device incorporates advanced protections such as continuous short-circuit and overvoltage protection to ensure safety during abnormal conditions. Remote On-Off switching capability allows controlled operation remotely.
With an efficiency rating of 88.5%, it minimizes energy waste during power conversion. The unit also demonstrates vibration resistance and a typical startup time of 30ms, ensuring suitability for demanding industrial environments including electric vehicles and renewable energy systems.
Compact SIP through-hole package with dimensions 50.8 x 40.6 x 10.2 mm. Input voltage range of 9V to 36V DC with a 4:1 input ratio. Single output providing 15V DC regulated voltage at 1.34A current. Isolation voltage rating of 1.6kV DC enhances operational safety.
Supports remote On-Off switching for flexible control. Robust protections against short-circuit and overvoltage conditions. High reliability with MTBF of over 1.5 million hours. Efficiency of 88.5% for energy-efficient operation.
Wide operating temperature range of -40°C to 85°C.
This DC/DC converter is ideal for use in industrial power supplies, medical devices, renewable energy systems, and electric vehicle power electronics, providing reliable and safe voltage conversion for various applications.
Explore more DC/DC Converters and power supply solutions on EnvMart to suit your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 15V and a maximum output current of 1.34A.
The input voltage range for the REC30-Z is from 9V to 36V DC, allowing for versatile application in various systems.
It has a compact SIP package measuring 50.8mm in length, 40.6mm in width, and 10.2mm in depth.
The efficiency of this unit is rated at 88.5%, which helps minimize energy loss during power conversion.
This model can operate at a maximum temperature of 85°C, making it suitable for industrial environments.
It features short-circuit and overvoltage protections, enhancing safety during abnormal conditions.
The isolation voltage for the REC30-Z is rated at 1.6kV DC, providing safety against electrical surges.
The MTBF for the REC30-Z is 1,541,000 hours, indicating a long service life and reliability.
Yes, it includes a remote On-Off switching capability, allowing for external control of the converter operation.
The minimum operating temperature for the REC30-Z is -40°C, making it suitable for a wide range of environmental conditions.
This DC/DC converter features a single output, providing a regulated voltage.
It is designed for through-hole mounting, facilitating easy installation onto circuit boards.
