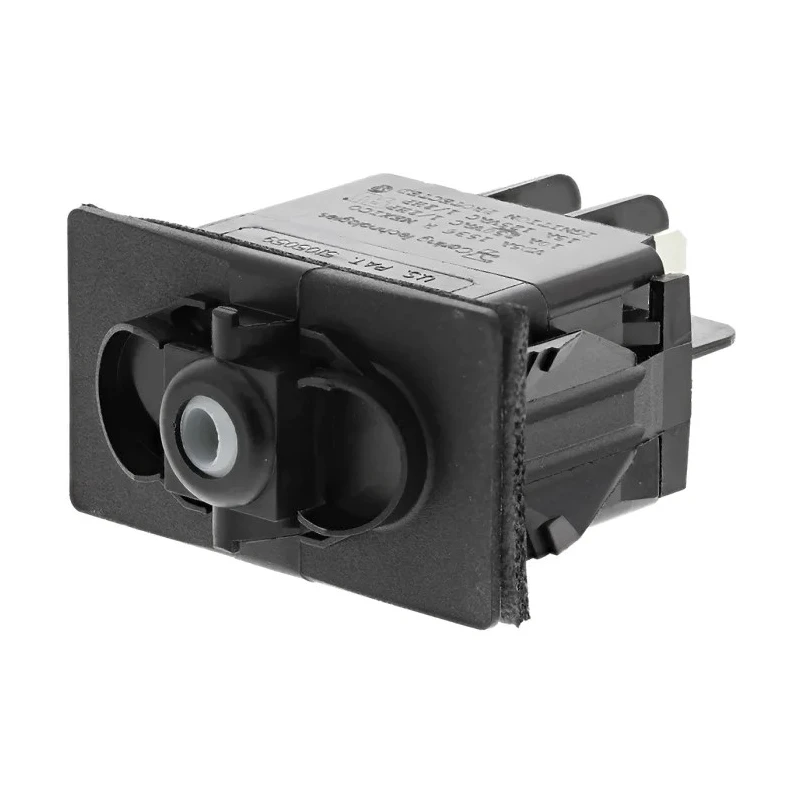

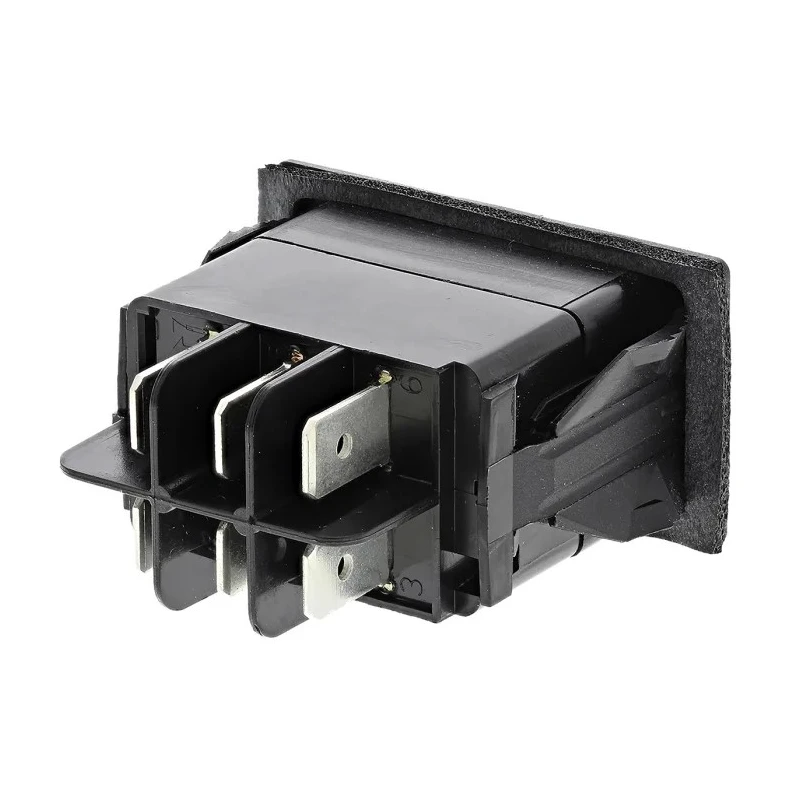

Carlingswitch DPDT Latching On-None-On Rocker Switch Panel RCV-37111490
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Carlingswitch |
| Model | RCV-37111490 |
| IP Rating | IP68 |
| Mount Type | Panel |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Silver |
| Series | RCV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 21.08 x 36.83 mm |
| Terminal type | Quick Connect |
| Contact Resistance | 10mΩ |
| Standards/Approvals | VDE, BS, RoHS, CSA, UL, CE |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 10A |
| Mechanical Life | 150000Operations |
| Contact AC Voltage | 250V ac |
| Panel cut-out | 21.08 x 36.83 |
| Carlingswitch Illuminated DPDT, On-Off-On On-Off-On Rocker Switch PanelBrand | Carlingswitch |
| Carling Technologies Illuminated DPDT, On-Off Rocker Switch Panel MountBrand | Carling Technologies |
Key Features
- The switch features a double pole double throw (DPDT) contact configuration ensuring reliable circuit control.
- It operates with a latching mechanism and On-None-On switch configuration.
- Housing made of durable Polyethylene Terephthalate material providing robust insulation.
- Panel cutout size dimensions are 21.08 x 36.83 mm for precise fitting in assemblies.
- Rated contact current of 10A supports both AC and DC voltages up to 250V ac and 28V dc respectively.
- Mechanical life expectancy is 150,000 operations indicating high durability.
- Designed to operate in temperature ranges from -40°C to 70°C suitable for harsh industrial environments.
- Quick connect terminals facilitate easy and secure wiring connections.
Product Description
Carlingswitch RCV-37111490 is a double pole double throw (DPDT) rocker switch panel with a latching On-None-On configuration. It is designed for panel mounting applications requiring secure and reliable switching operations.
The housing is constructed from Polyethylene Terephthalate, providing excellent electrical insulation and mechanical robustness. The device features quick connect terminals sized at 6.35 mm for efficient and reliable connection to circuits.
This rocker switch panel is capable of handling contact currents of up to 10 amperes, supporting both 28V dc and 250V ac voltages. It is engineered for durability with a mechanical life of 150,000 operations, and it operates efficiently within a temperature range of -40°C to 70°C, suitable for demanding industrial and electrical environments.
The dimensions for the panel cutout are precisely 21.08 x 36.83 mm, ensuring compatibility with panel assemblies. The switch is IP68 rated, providing dust and water ingress protection when installed without the panel assembly system.
The switch supports a latching operation with On-None-On configuration for controlled switching. Includes a panel-sealing gasket to maintain environmental protection. The contacts are made of silver material delivering low contact resistance approximately 10 mΩ for efficient electrical conduction.
Terminal type is quick connect, facilitating fast and secure electrical connections. Standards and approvals include UL, CSA, VDE, BEAB, DEMKO, SEMKO, NEMKO, and FIMKO ensuring global regulatory compliance.
This product is widely used in industrial automation, electrical control panels, machinery control, HVAC systems, and other applications that require a reliable and durable rocker switch. The switch is supplied without actuator; compatible actuators can be sourced separately.
Choose Carlingswitch RCV-37111490 Rocker Switch Panel for rugged, high-performance switching in challenging environments. Explore more switches and electrical components in EnvMart’s extensive catalog.
Explore more products in our Electronic Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rocker switch features a double pole double throw (DPDT) contact configuration, ensuring reliable circuit control.
It has a maximum contact current rating of 10A, supporting both AC and DC applications.
The switch supports AC voltages up to 250V and DC voltages up to 28V.
This model operates efficiently within a temperature range of -40°C to 70°C, making it suitable for harsh environments.
The panel cutout size required for this switch is 21.08 x 36.83 mm, ensuring precise fitting in assemblies.
It features quick connect terminals sized at 6.35 mm for efficient and reliable connection to circuits.
The mechanical life expectancy of this rocker switch is rated at 150,000 operations, indicating its durability.
The housing is made of Polyethylene Terephthalate, and the contacts are made of silver, providing low contact resistance.
This model is certified to several standards including UL, CSA, VDE, and RoHS, ensuring global regulatory compliance.
Yes, it is rated IP68, providing dust and water ingress protection when properly installed, making it suitable for outdoor applications.
This rocker switch is widely used in industrial automation, electrical control panels, machinery control, and HVAC systems.
The switch is supplied without an actuator; compatible actuators can be sourced separately for use with this model.
