ITW Switches 76-94 Series Momentary Panel Mount Push Button Switch 22 mm Cutout SPDT Clear LED IP67 250 V AC 76-9450/439088G

ITW Switches 76-9450/439088G is a momentary panel mount push button switch from the 76-94 Series, designed for demanding industrial and environmental conditions. It features a 22 mm panel cutout and SPDT (Single Pole Double Throw) contact configuration, enabling versatile on-off control within electrical circuits at a rated 250 V AC voltage and 10 A contact current.

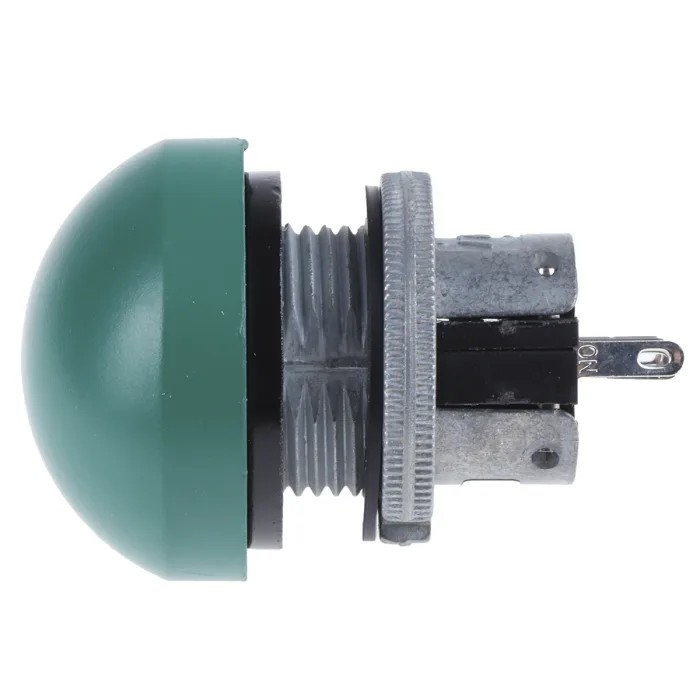

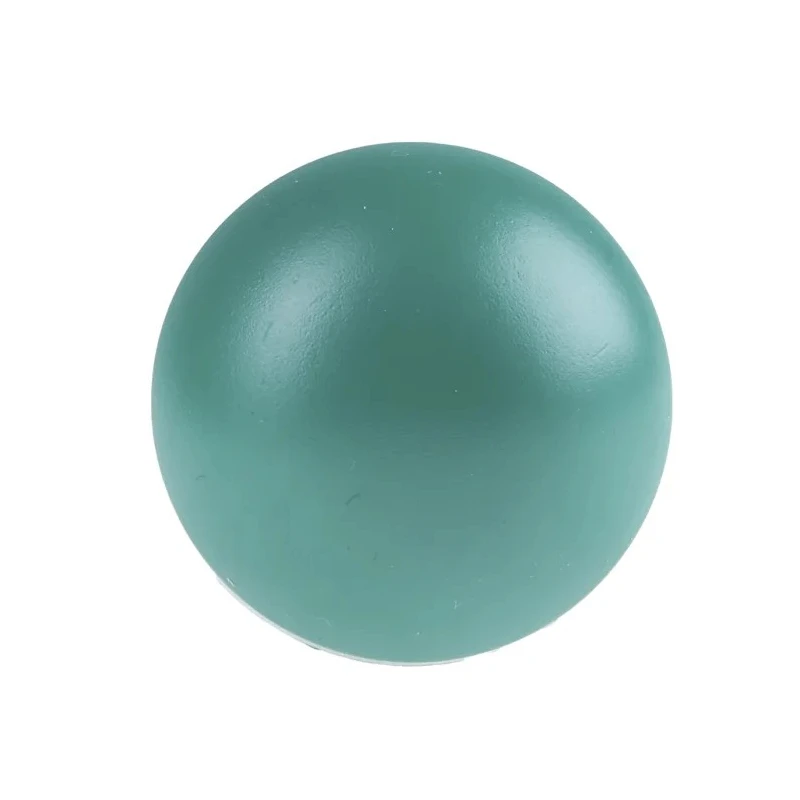

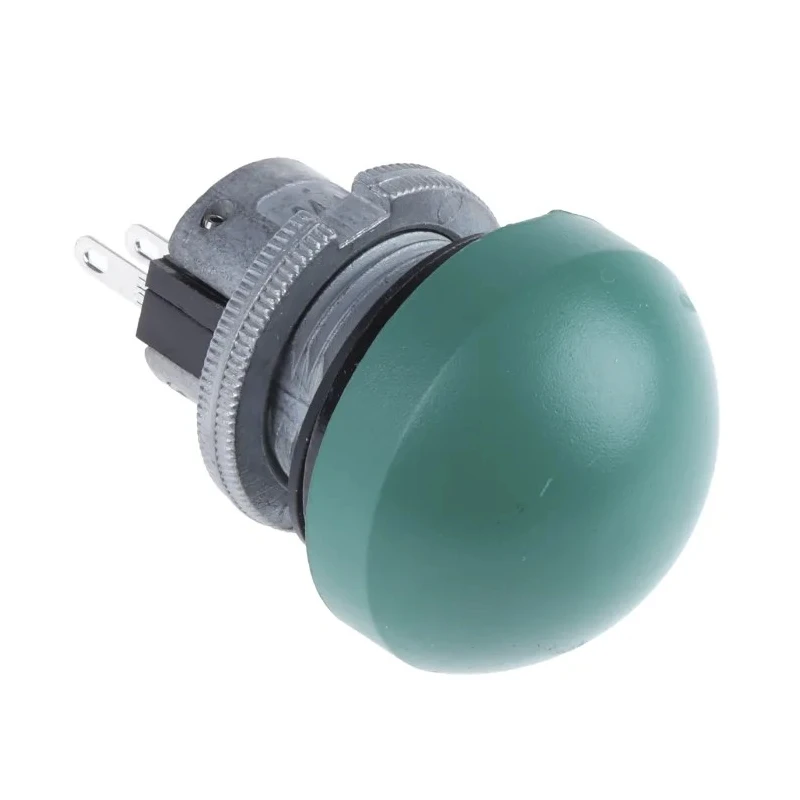

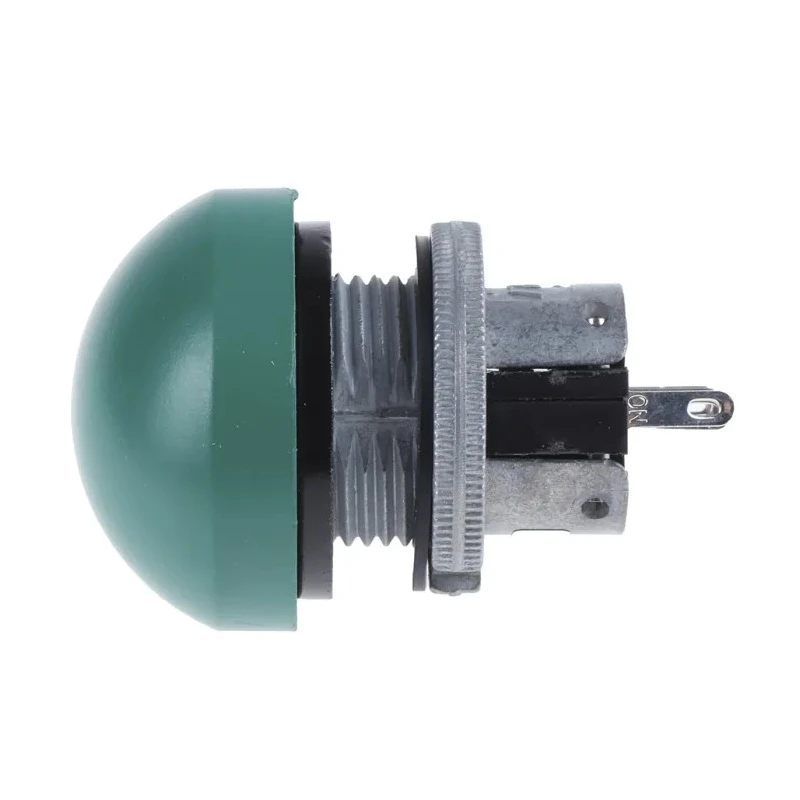

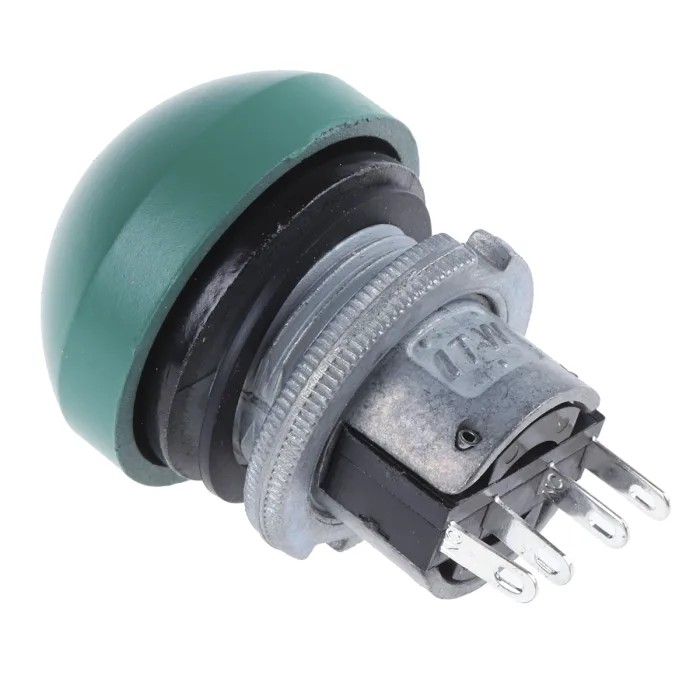

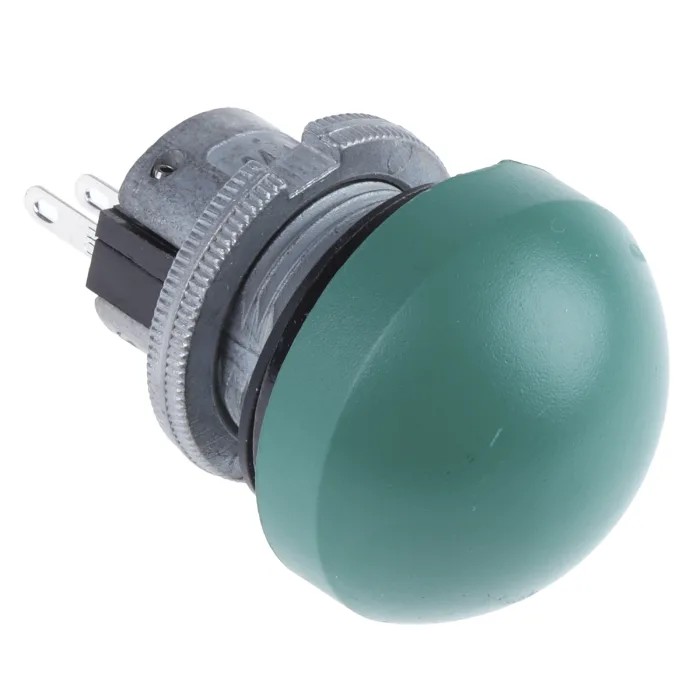

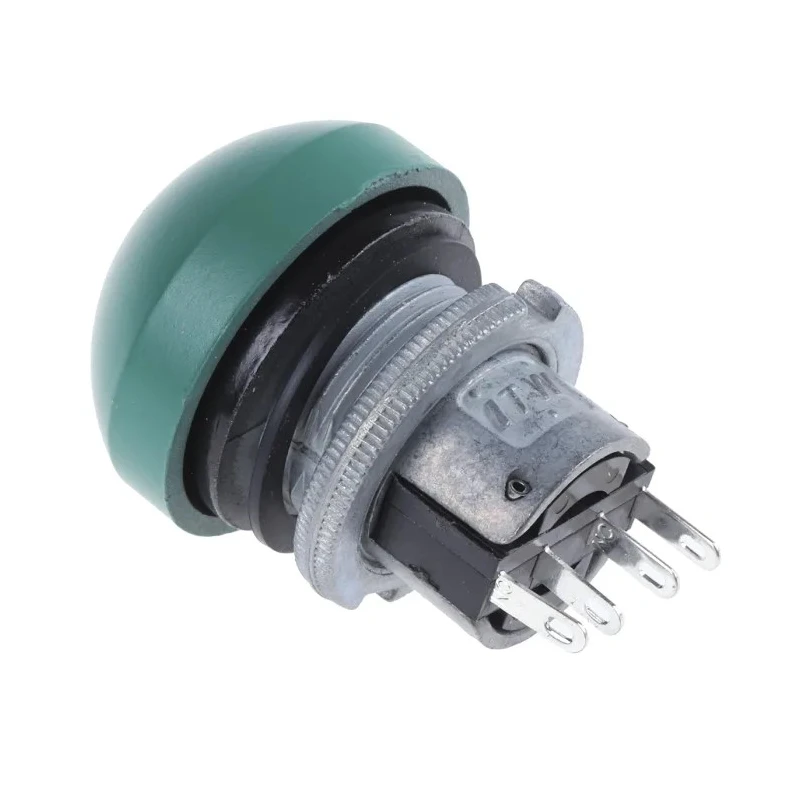

The switch's actuator is a round, green domed button made from high impact, non-sparking zinc alloy ensuring explosion-proof durability. The device meets the IP67 rating, guaranteeing complete protection against dust ingress and temporary immersion in water, making it ideal for military environments, mining, petrochemical, process control, and material handling applications.

Functionally, the momentary contact design means the circuit closes only while the button is pressed and returns to the off position upon release. The switch is equipped with solder terminals for secure wiring and designed to operate effectively across a wide temperature range from -40°C up to 125°C. It conforms with UL and CSA approvals, ensuring a high standard of safety and reliability.

The 76-94 Series includes push-button, rotary, and panel lamp styles with multiple actuator colors and terminal options, but this product specifically features a clear LED indicator lens which remains off in this model. The robust construction enables it to absorb impacts approximately equivalent to a 5 kg mass dropped from 40 cm (20J), illustrating its vandal resistance and durability.

With its compact panel mount form factor and robust features, this push button switch is well suited for integration in industrial control panels, automation systems, and harsh environment electrical setups.

The switch features a green domed actuator for easy identification. It is a momentary push-button that returns to off when released. Rated for 250 V AC and a contact current of 10A for robust performance. Designed to withstand harsh environments with IP67 dust and immersion protection.

Constructed from non-sparking zinc alloy materials for explosion-proof applications. Suitable for industrial, military, petrochemical, mining, and process control use cases. Panel mount installation with a solder terminal type for secure connections.

Operates reliably between -40°C to 125°C temperature range. Approved to UL and CSA standards ensuring safety and compliance. The clear LED indicator enhances visibility while not illuminated during operation.
