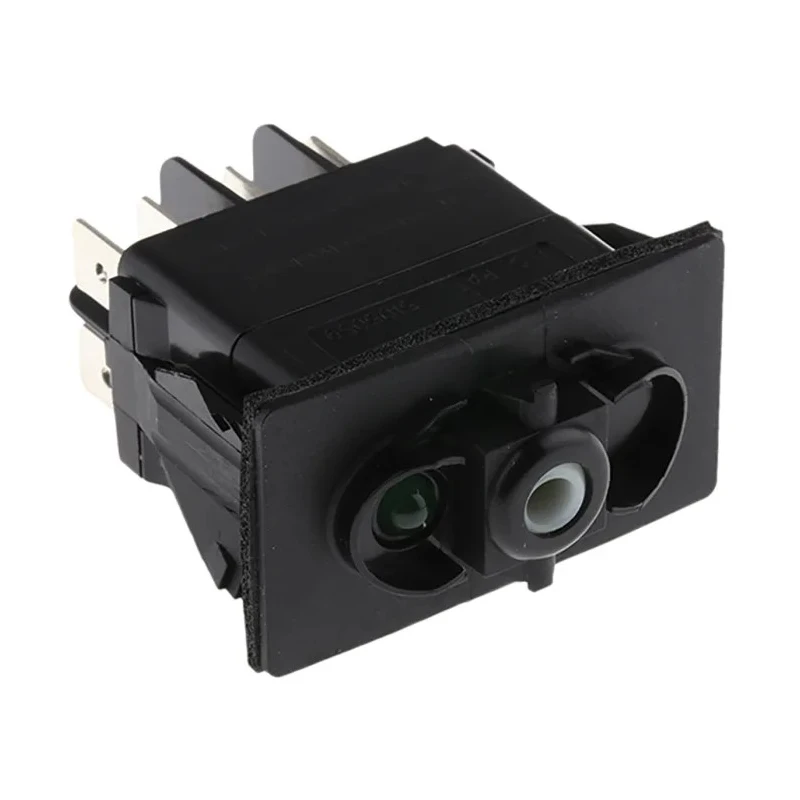

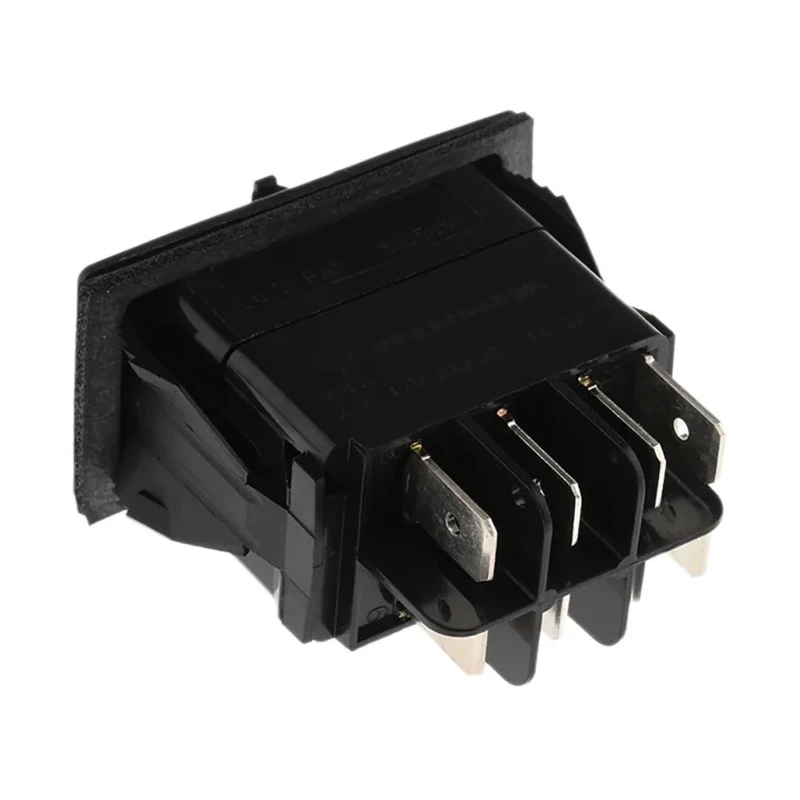

Carlingswitch Illuminated DPDT Latching DP SP Rocker Switch Panel 12V DC 20A IP68 RCV-37111470
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Carlingswitch |
| Model | RCV-37111470 |
| IP Rating | IP68 |
| Mount Type | Panel |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Silver |
| Series | RCV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | DP, SP |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 21.08 x 36.83 mm |
| Terminal type | Quick Connect |
| Contact Resistance | 10mΩ |
| Standards/Approvals | UL, RoHS, CSA, BS, CE, VDE |
| Switch Operation | Latching |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 150000Operations |
| Contact AC Voltage | 250V ac |
| Panel cut-out | 21.08 x 36.83 |
| Carlingswitch Illuminated SPDT, Latching On-None-On Rocker Switch PanelBrand | Carlingswitch |
Key Features
- This rocker switch features a double-pole double-throw (DPDT) contact configuration with latching operation.
- Housing made of durable polyethylene terephthalate ensures robust performance.
- The panel cutout size is 21.08 x 36.83 mm, compatible with standard panel assemblies.
- Rated for switch contact current of 20A and suitable for 12V DC and 250V AC voltages.
- Illuminated with integrated LEDs for clear status indication and quick connect terminals for ease of installation.
- Designed to withstand operating temperatures from -40°C to 70°C with a mechanical life of 150,000 operations.
- IP68 rated for resistance to ingress of water and dust when used without panel assembly system.
- Contact resistance is low at 10 milliohms using silver contact materials for reliability.
Product Description
Carlingswitch RCV-37111470 is an illuminated DPDT latching DP SP rocker switch panel engineered for demanding electrical, automation, and industrial control applications. It features a panel mount design with polyethylene terephthalate housing for robustness and chemical resistance.
The switch has a panel cutout dimension of 21.08 x 36.83 mm and accepts 20A current with both 12V DC and 250V AC contact voltages. This product incorporates illuminated LEDs with integral resistors optimized for 12V DC operation, providing clear operational status indication in control panels.
Equipped with 6.35 mm quick connect terminals and supplied with a panel-sealing gasket, the switch offers secure installation and environmental protection. The IP68 rating guarantees excellent ingress protection against dust and water when installed without the panel assembly system, making it suitable for harsh industrial environments.
Operational temperature range spans from -40°C to 70°C, supporting deployment in varied climatic conditions. The silver contacts ensure minimal contact resistance of 10 milliohms, enhancing switch reliability and longevity, with a mechanical life rated at 150,000 operations.
The rocker switch is compliant with UL, RoHS, CSA, BS, CE, and VDE standards, meeting international safety and environmental regulations. Note that the switch is supplied without an actuator; compatible actuators such as the black/green lens (not suitable for neon or red LED versions) are available separately.
This illuminated DPDT rocker switch is ideal for industrial automation and electrical panel controls. Robust panel sealing and high ingress protection ensuring durability in challenging conditions. Quick-connect terminals simplify wiring and maintenance.
Wide operating temperature range supports diverse applications. Compliance with major global standards ensures quality and safety. Explore more high-quality Rocker Switches and electrical components in the EnvMart catalog to meet your automation and electrical installation needs.
