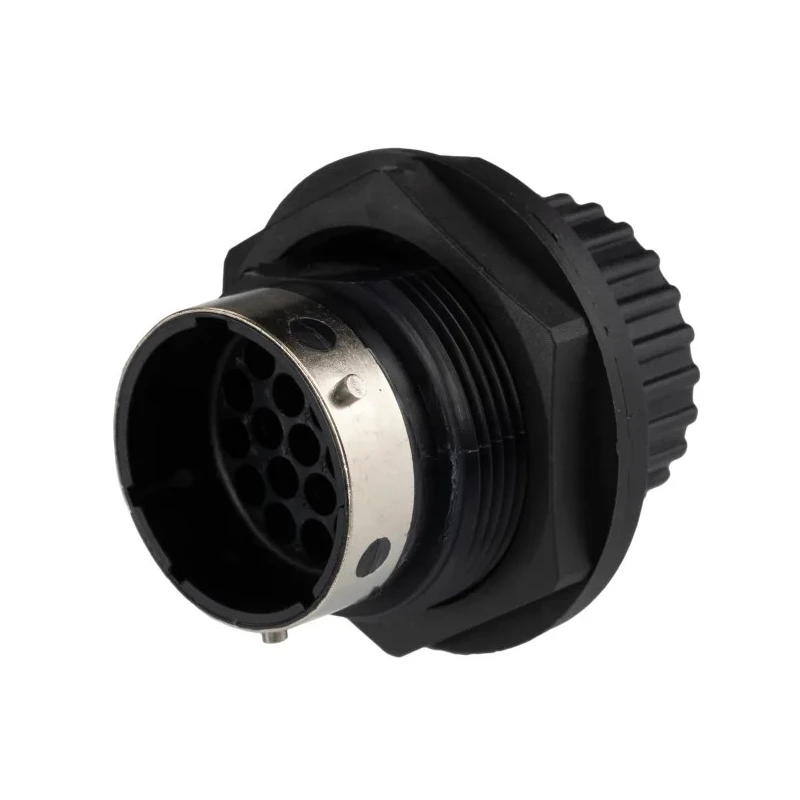

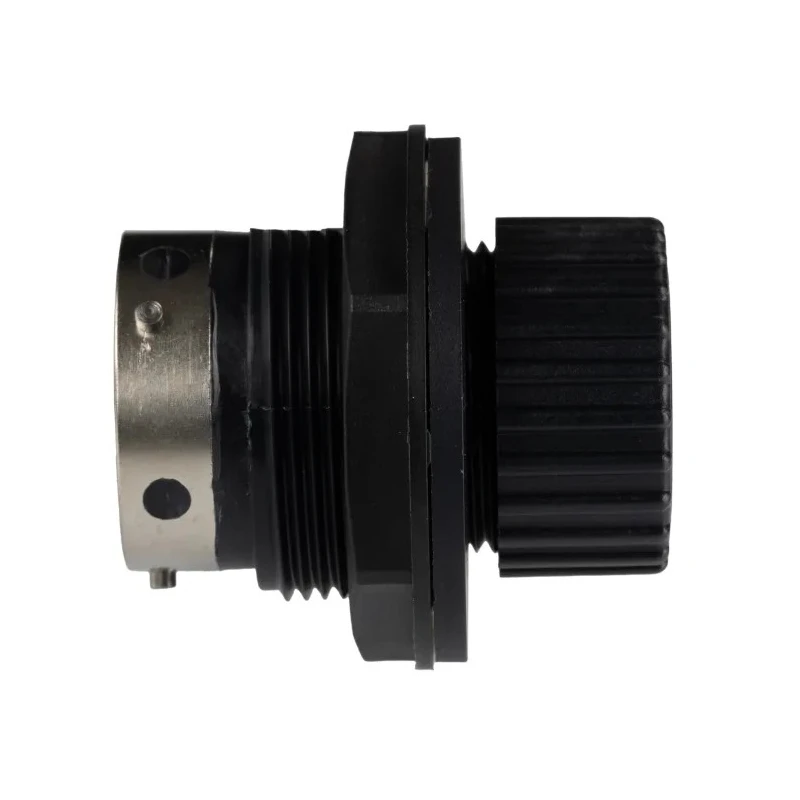

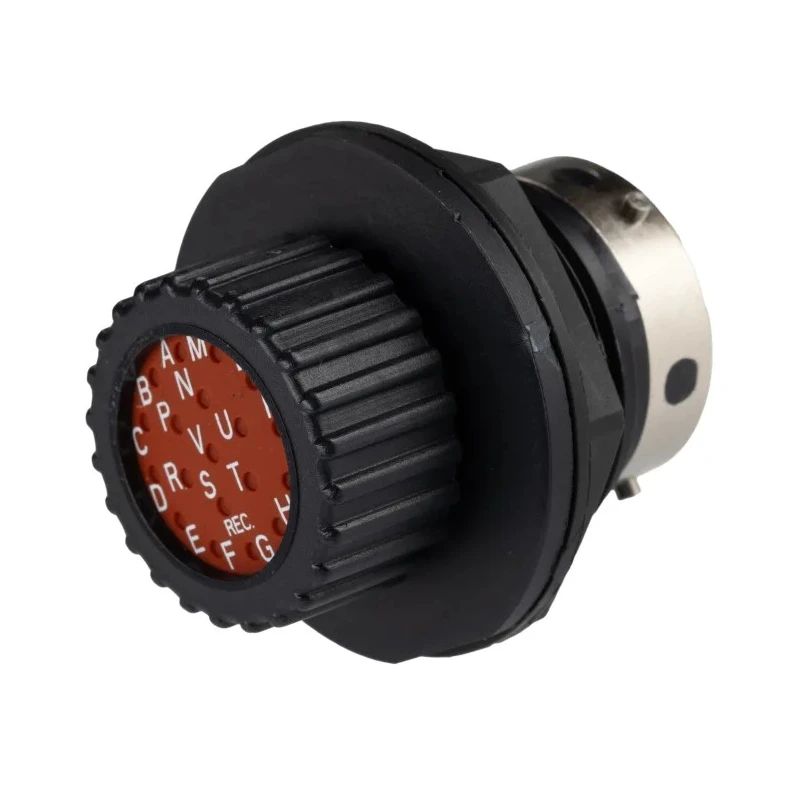

ITT Cannon Circular Connector 19 Contacts Panel Mount Socket Male IP67 Trident Neptune Series TN7S16-0019P1L / 192900-0353
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN7S16-0019P1L / 192900-0353 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 19 |
| Contact Plating | Nickel |
| Number of Contacts | 19 |
| Contact Gender | Male |
| Shell Size | 16 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Rated for a current of 30A and voltage of 250V.
- Features a robust polymer housing and nickel-plated copper contacts.
- Designed with a strong bayonet coupling in the Trident Neptune series.
- Operates within -55°C to 105°C temperature range.
- Utilizes crimp termination and supports panel mounting with jam nut fixing.
- Maintains IP67 ingress protection with rubber seal and screw ring interface.
- Suitable for in-line connections and panel installations.
- Ideal for automotive, marine, and process control industrial applications.
Product Description
ITT Cannon TN7S16-0019P1L / 192900-0353 Circular Connector is a high-reliability industrial connector with 19 contacts designed for panel mount installation. It features a socket with male contacts offering IP67 ingress protection, making it suitable for demanding environments requiring dust and water resistance.
This connector is part of the Trident Neptune series, known for its strong bayonet coupling system and compatibility with a wide range of backshell accessories and rear housings. The connector operates at 250V and supports a current of 30A, ensuring solid power and signal transmission.
The polymer housing coupled with nickel-plated copper contacts provides durability and corrosion resistance, crucial in automotive, marine, and process control industries. The connector supports a wide temperature range from -55°C to 105°C with crimp termination for secure wiring.
The connector shell size is 16 mm, with a straight orientation and a robust jam nut fixing for panel mounting. The IP67 rating is maintained via a rubber seal pierced upon contact insertion and held by a screw ring, ensuring environmental sealing. The connector can be used both in-line and mounted to panels from the rear via a single "D" hole.
Current rating of 30A and operating voltage of 250V. Nineteen contacts arranged for power and signal transmission. Housing material is polymer with nickel-plated copper contacts. Bayonet mating type for secure coupling. Operating temperature range from -55°C to 105°C.
Crimp termination type to ensure wiring security. IP67 rated for dust and water ingress protection. Trident Neptune series for industrial application robustness. This circular connector is ideal for industrial, automotive, marine, and process control applications requiring reliable panel mount connections with high ingress protection.
Explore more industrial connectors and high-quality circular connectors at EnvMart to fulfill diverse application needs.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 30A and a voltage of 250V.
It operates within a temperature range of -55°C to 105°C.
This connector utilizes crimp termination for secure wiring.
The connector has an IP67 rating, providing protection against dust and water ingress.
It features 19 contacts arranged for power and signal transmission.
The housing is made of polymer, and the contacts are nickel-plated copper.
The shell size of this connector is 16 mm.
It supports panel mounting with jam nut fixing.
It features a bayonet mating type for secure coupling.
This connector is ideal for automotive, marine, and process control industrial applications.
The country of origin for this connector is India.
The connector has a straight orientation.
