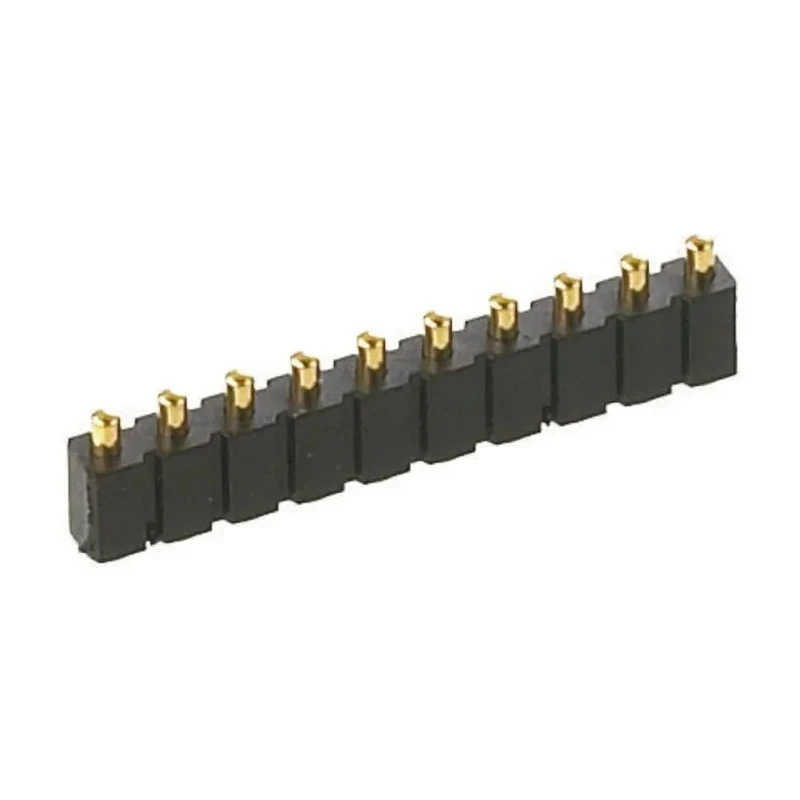

Preci-Dip 811 Series Straight Surface Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 1 Row 811-SS-010-30-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3.5A |
| Model | 811-SS-010-30-001101 |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 811 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The connector supports a current rating of 3.5A with a voltage rating of 150V.
- It is constructed with a fibreglass reinforced polyethylene terephthalate housing for durability.
- Brass contact material with gold plating ensures low electrical resistance and corrosion resistance.
- The surface mount type with solder termination enables efficient PCB integration.
- Operates reliably within a temperature range of -55°C to 125°C.
- The connector features a male contact gender and straight orientation.
- Complies with UL 94V-0 standards for flammability.
- The spring-loaded contacts provide stable electrical connections even under vibration or movement.
Product Description
Preci-Dip 811-SS-010-30-001101 Spring Loaded Connector is a high-quality electronic component featuring 10 spring-loaded contacts arranged in a single row with a 2.54 mm pitch. It is designed for surface mounting on printed circuit boards and includes a shrouded housing to protect contacts and enhance reliability.
The connector supports a current rating of 3.5A and a maximum operating voltage of 150V, making it suitable for various electronic industry, industrial control, laboratory instrumentation, and manufacturing applications.
The housing is made of fibreglass reinforced polyethylene terephthalate, providing mechanical strength and resistance to environmental factors. Contacts are crafted from brass with gold plating to ensure excellent conductivity and corrosion resistance. The connector has a male contact gender and solder termination type for secure and durable electrical connections.
Operating temperatures range from -55°C up to 125°C, ensuring performance stability in harsh environments. The product complies with UL 94V-0 flammability standard, confirming its safety and reliability in use.
The spring-loaded contact system guarantees low and consistent electrical resistance without micro-discontinuities even during movement or vibration, ensuring maximum connection reliability in demanding applications.
The connector’s surface mount design facilitates easy and efficient PCB integration. The shrouded design protects contacts from mechanical damage and prevents short circuits. Suitable for electronics manufacturing, testing equipment, communication devices, and industrial automation control systems.
Manufactured in Switzerland to stringent quality controls and high precision standards.
This Preci-Dip 811 Series Straight Surface Spring Loaded Connector combines robust materials, precise engineering, and reliable electrical contact performance to support advanced industrial and electronics solutions.
Explore more electronic Connectors and advanced components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 3.5A and a maximum operating voltage of 150V.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made of fibreglass reinforced polyethylene terephthalate, while the contacts are crafted from brass with gold plating.
This model features 10 contacts arranged in a single row.
It uses a solder termination type for secure and durable electrical connections.
The contacts have a pitch size of 2.54 mm.
The connector features a male contact gender.
This connector is designed with a shrouded housing to protect the contacts.
It complies with UL 94V-0 standards for flammability.
It is manufactured in Switzerland to stringent quality controls.
It is suitable for various applications in electronics manufacturing, industrial control, and laboratory instrumentation.
The spring-loaded contacts provide stable electrical connections, ensuring low and consistent electrical resistance even under vibration or movement.
