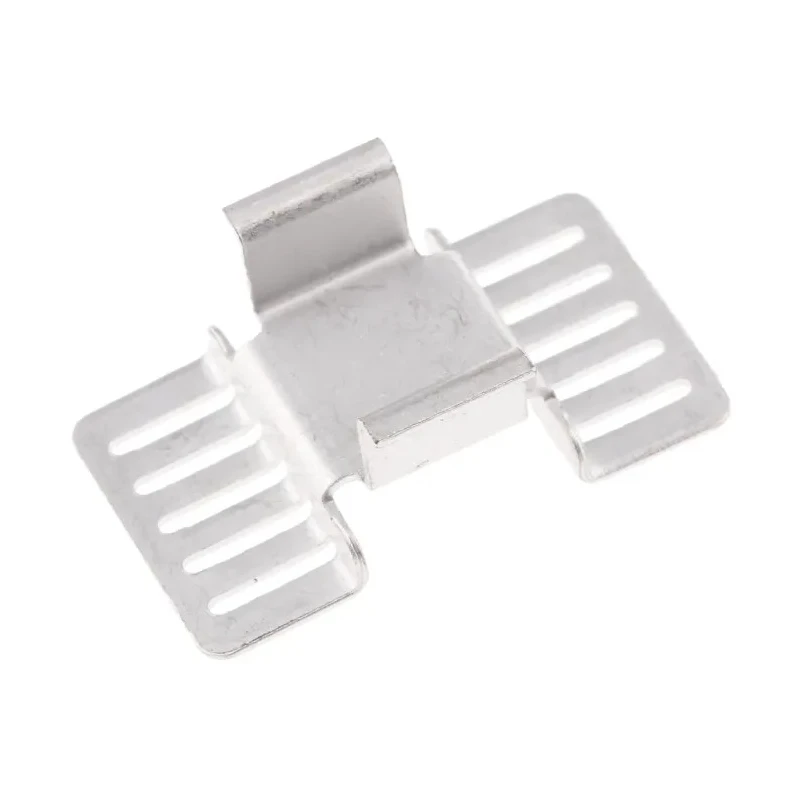

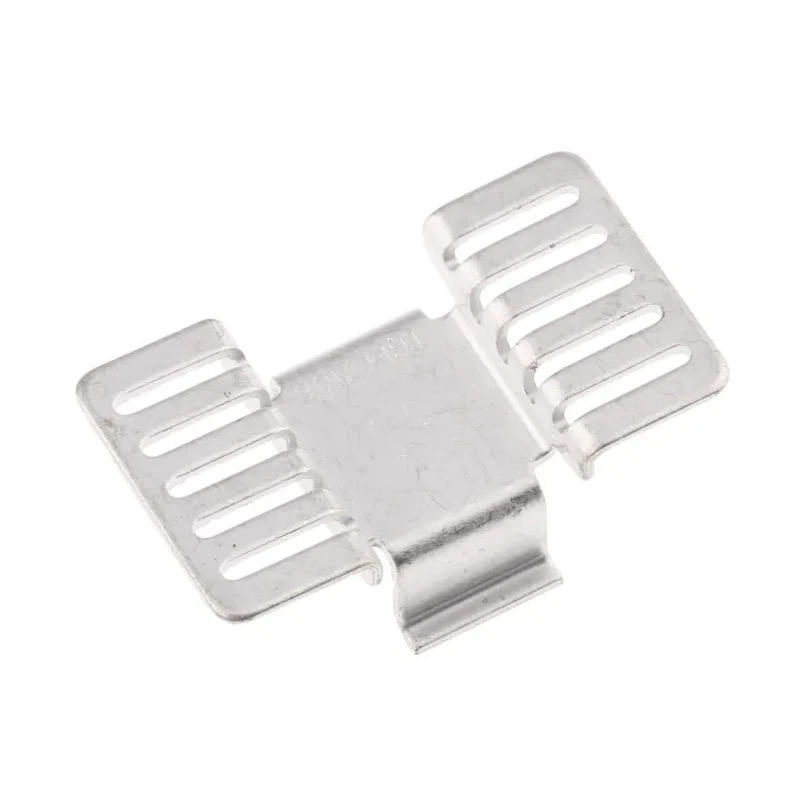

AAVID THERMALLOY Heatsink PCB Mount Copper Tin Plated 14.99mm x 25.91mm x 9.52mm 15°C/W 7106DG/TR

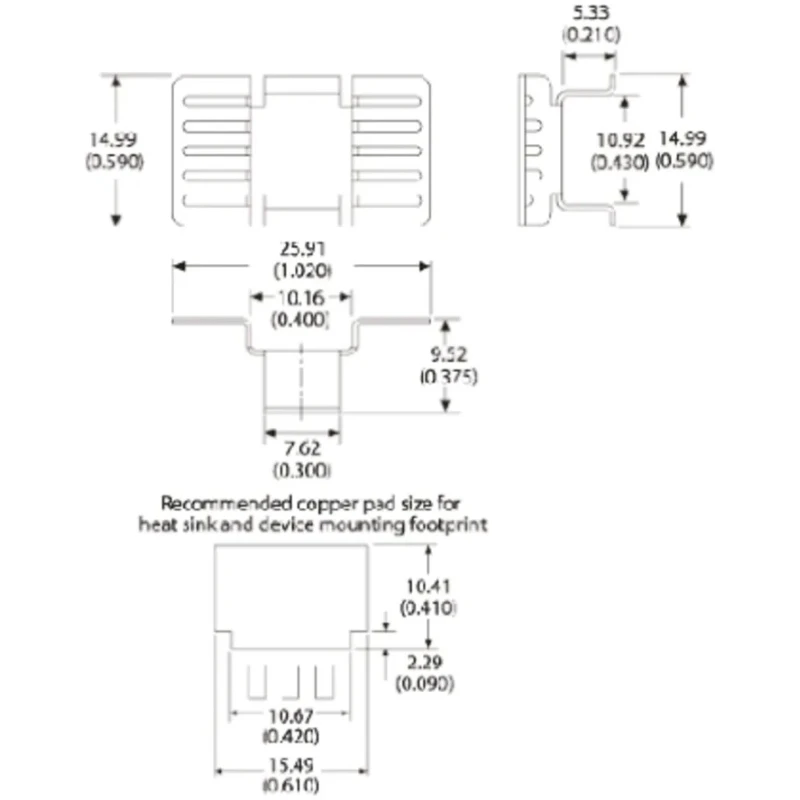

AAVID THERMALLOY 7106DG/TR Heatsink is a surface mount PCB heat sink made of copper with tin plating, engineered for high thermal performance with a thermal resistance of 15°C/W. Its dimensions are 14.99mm in length, 25.91mm in width, and 9.52mm in height, making it compact and suitable for modern electronic devices.

This heat sink is specifically designed for D-PAK package semiconductors, including SO-10, TO-268, TO-263, and TO-252 package types. The device and the heat sink are soldered directly to a modified drain pad, creating an efficient thermal transfer pathway from the package tab to the heat sink for optimal heat dissipation.

The tin-plated finish enhances solderability and provides corrosion resistance, ensuring reliability and longevity in demanding industrial and electronic applications.

Its compatibility with a broad range of package types and RoHS compliance make it suitable for use in electrical automation systems, HVAC equipment, semiconductor devices, and other industrial electronics cooling and thermal management solutions.

This heatsink is designed for PCB mounting applications ensuring easy integration into PCB assemblies. Constructed from high-conductivity copper material for superior heat dissipation. The tin plating finish supports excellent solderability and protects against corrosion.

Meets RoHS environmental standards for safe and eco-friendly usage. Compact dimensions allow for space-saving designs in electronics manufacturing. Compatible with multiple semiconductor package types, enhancing versatility.

Ideal for use in industrial, laboratory, and commercial thermal management scenarios. Ensures improved reliability and lifespan of electronic components by efficient heat dissipation. Explore more Heatsinks and thermal management components in the Electronics Components category at EnvMart for industrial and commercial applications.
