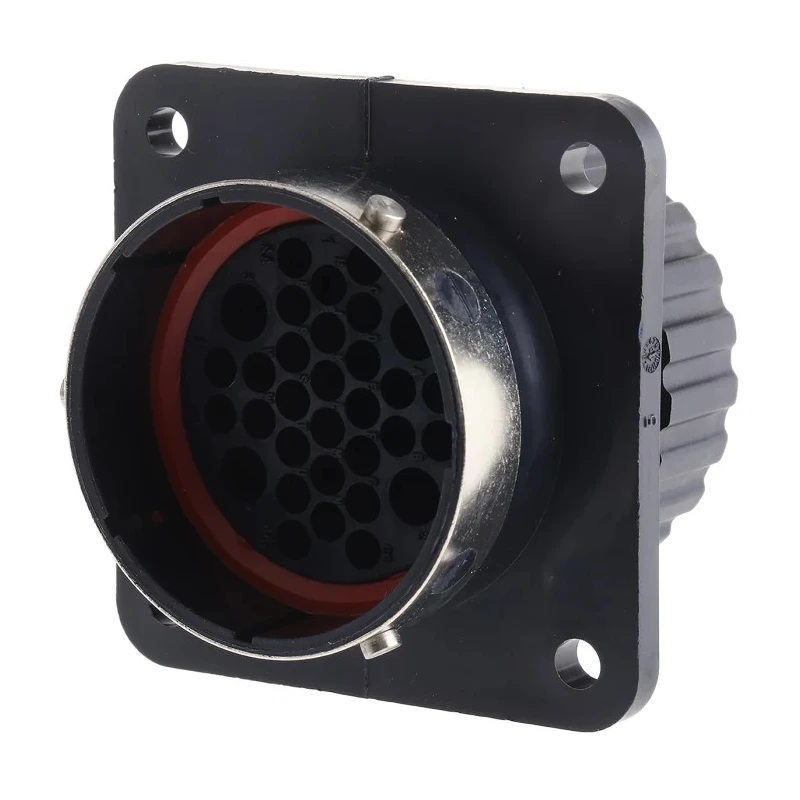

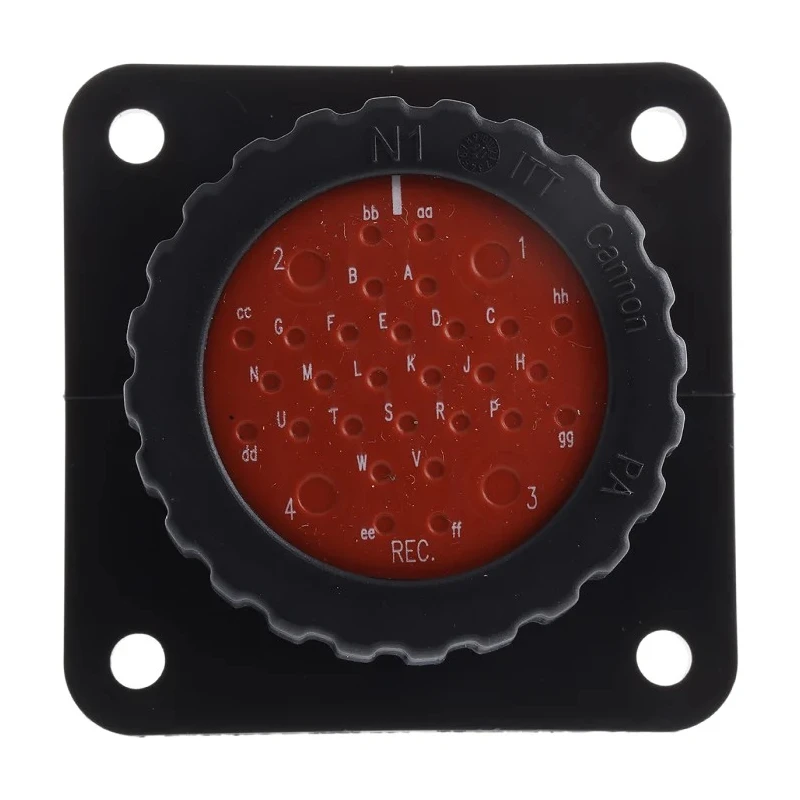

ITT Cannon Circular Connector 32 Contacts Panel Mount Socket Male IP67 Trident Neptune Series TN0S24-0428P1L / 192900-0072
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN0S24-0428P1L / 192900-0072 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 32 |
| Contact Plating | Nickel |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shell Size | 24 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- This circular connector features 32 contacts for robust connectivity.
- It is designed for panel mount use with a standard-sized connector shell.
- The connector supports a current rating of 30A and a voltage rating of 250V.
- The bayonet mating type offers secure and quick coupling.
- Constructed with polymer housing and copper contacts plated with nickel for durability.
- Operation is reliable across temperatures from -55°C to 105°C.
- The connector provides a straight orientation and crimp termination type.
- It is rated IP67 for protection against dust and temporary immersion in water.
Product Description
ITT Cannon TN0S24-0428P1L / 192900-0072 is a high-performance circular connector designed for demanding industrial environments. This panel mount socket male connector features 32 contacts and operates at 250V and 30A current, offering robust power and signal transmission capabilities. The connector belongs to the Trident Neptune series, known for its durable construction and reliable bayonet coupling mechanism.
The housing is made from a resilient polymer, providing excellent protection while keeping the connector lightweight. Contacts are copper with nickel plating to ensure superior conductivity and corrosion resistance. With a wide operating temperature range from -55°C to 105°C, this connector can withstand harsh environmental conditions.
Featuring an IP67 ingress protection rating, the connector is sealed against dust and water, making it suitable for use in automotive, marine, process control, and other industrial applications requiring high reliability and environmental resistance. The termination type is crimp, facilitating secure and efficient wiring.
The connector’s shell size measures 24 mm and supports a straight orientation. Its bayonet mating type ensures quick and secure connections, enhancing usability in field installations.
This product includes panel plug and socket shells with rear sealing arrangements. The retaining ring can be replaced by backshells without compromising IP67 protection. The rubber seal at the rear pierces upon contact insertion maintaining IP67 standards.
Signal wire insulation diameters should be 1.7 to 2.7 mm; power wires should be 2.7 to 4.0 mm to preserve the rating. Widely used across automotive, marine, and process control industries. Manufactured in Hungary, ensuring quality conformance and durability.
These connectors provide a reliable, industrial-grade solution for power and signal connection requirements. Discover more products from the Electronics & Electricals > Circular Connectors > Industrial Circular Connectors category at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 30A and a voltage rating of 250V, making it suitable for robust power and signal transmission.
It is rated IP67, providing protection against dust and temporary immersion in water, which enhances its reliability in harsh environments.
The housing is made from polymer, while the contacts are copper plated with nickel for improved conductivity and corrosion resistance.
This connector operates reliably within a temperature range of -55°C to 105°C, suitable for various industrial applications.
It features a crimp termination type, facilitating secure and efficient wiring connections.
This unit has 32 contacts, allowing for robust connectivity in various applications.
The shell size of this model is 24 mm, which is standard for panel mount connectors.
It uses a bayonet mating type, which ensures quick and secure coupling during installation.
It is widely used in automotive, marine, and process control industries, where high reliability and environmental resistance are required.
The connector features a straight orientation, which is common for panel mount installations.
This product is manufactured in Hungary, ensuring quality conformance and durability for industrial use.
Signal wire insulation diameters should be between 1.7 to 2.7 mm, while power wires should be between 2.7 to 4.0 mm to maintain the IP67 rating.
